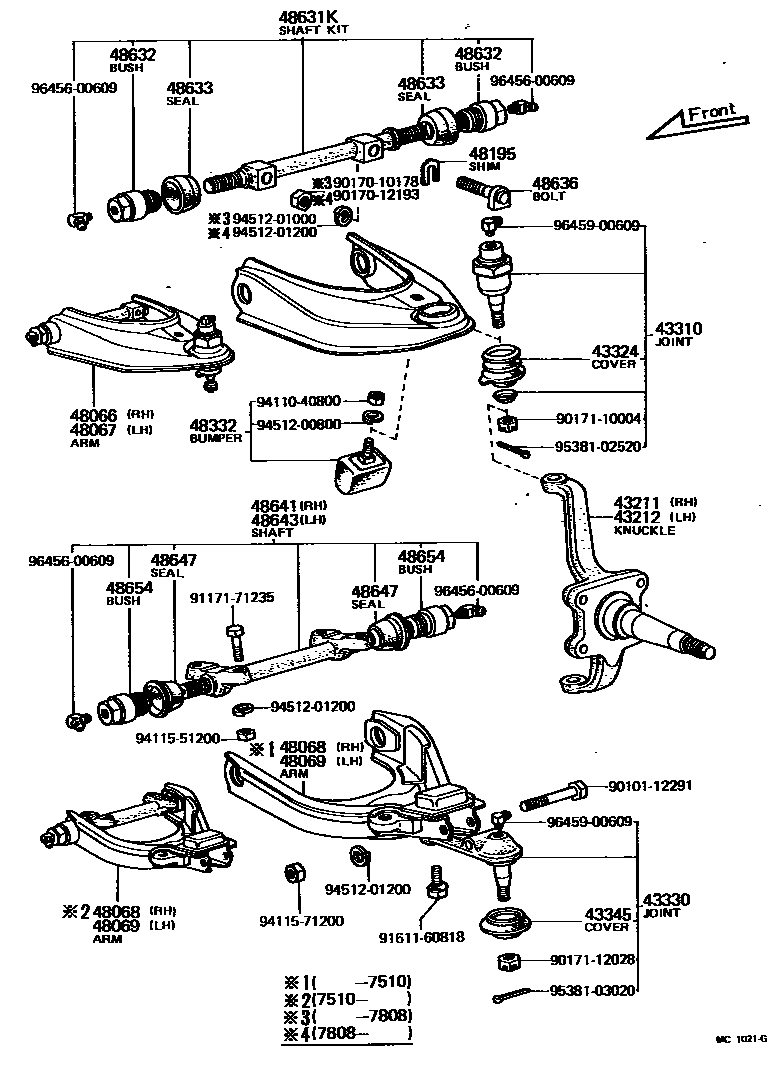

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43310JOINT ASSY, UPPER BALL
43324COVER, UPPER JOINT DUST
43330JOINT ASSY, LOWER BALL, FRONT
RH.
LH.
43345COVER, LOWER BALL JOINT DUST
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48195SHIM, CAMBER ADJUST
T=2.3
T=1.6
T=1.2
T=2.3
T=1.6
T=1.2
T=2.3
T=1.6
T=1.2
48332BUMPER, FRONT SPRING, NO.2
48631KSHAFT KIT, UPPER SUSPENSION ARM
48632BUSH, UPPER ARM
48633SEAL, UPPER ARM PIVOT DUST
48641SHAFT, LOWER ARM, RH
48643SHAFT, LOWER ARM, LH
48647SEAL, LOWER ARM BUSH DUST
48654BUSH, LOWER ARM
9010112291
main90101-12291
9017010178
main90170-10178
9017012193
main90170-12193
9017110004
main90171-10004
9017112028
main90171-12028
9117171235
main91171-71235
9161160818
main91611-60818
9411040800
main94110-40800
9411551200
main94115-51200
9411571200
main94115-71200
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
9538102520
main95381-02520
9538103020
main95381-03020
9645600609
main96456-00609
9645900609
main96459-00609
37 parts on this diagram · 1 diagram in section
