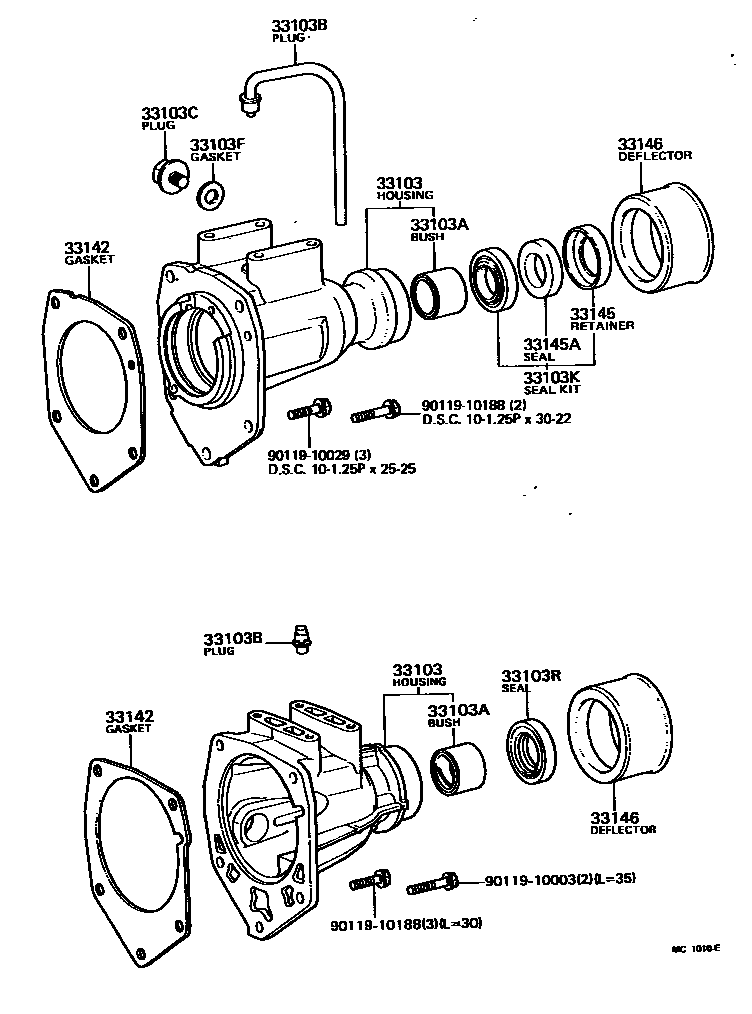

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26011i197105-197111

main33103-26020i197111-197908

main33103-27020i197908-197909

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023i197411-197909

main90999-73035i197105-197411

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03053i197105-197908

main90930-03075i197908-197909

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18002i197105-197405

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main12157-10010i197105-197405

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010i197105-197908

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043i197908-197909

33142GASKET, EXTENSION HOUSING(MTM)

main33142-26010i197111-197909

main33142-30020i197105-197111

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010i197105-197908

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010i197105-197908

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010i197105-197909

9011910003

9011910029

9011910188

14 parts on this diagram · 1 diagram in section
