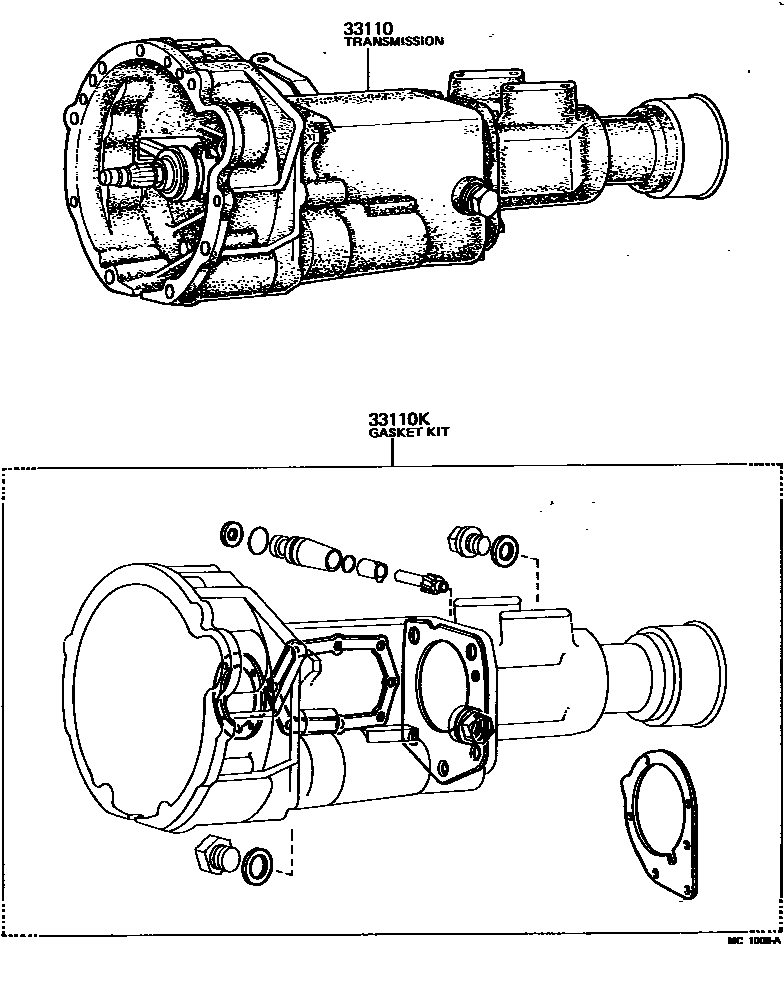

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

33110TRANSMISSION ASSY, MANUAL

main33110-27010iKM10..TR197105-197111

SMG.R=19:4

main33110-27020iKM10..V197105-197111

SMG.R=17:4

main33110-27021iKM10..TR,V197111-197405

SMG.R=17:4

main33110-27022iKM10..TR,V197405-197511

SMG.R=17:4

main33110-27023iKM10197511-197708

SMG.R=17:4

main33110-27024iKM10197708-197802

SMG.R=17:4

main33110-27030iKM10..WG197105-197111

SMG.R=16:4

main33110-27031iKM10..WG197111-197405

SMG.R=16:4

main33110-27032iKM10..WG197405-197408

SMG.R=16:4

main33110-27060iKM11197802-197909

SMG.R=17:4

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26010iKM1#197111-197909

main04331-35020iKM10197105-197111

2 parts on this diagram · 1 diagram in section
