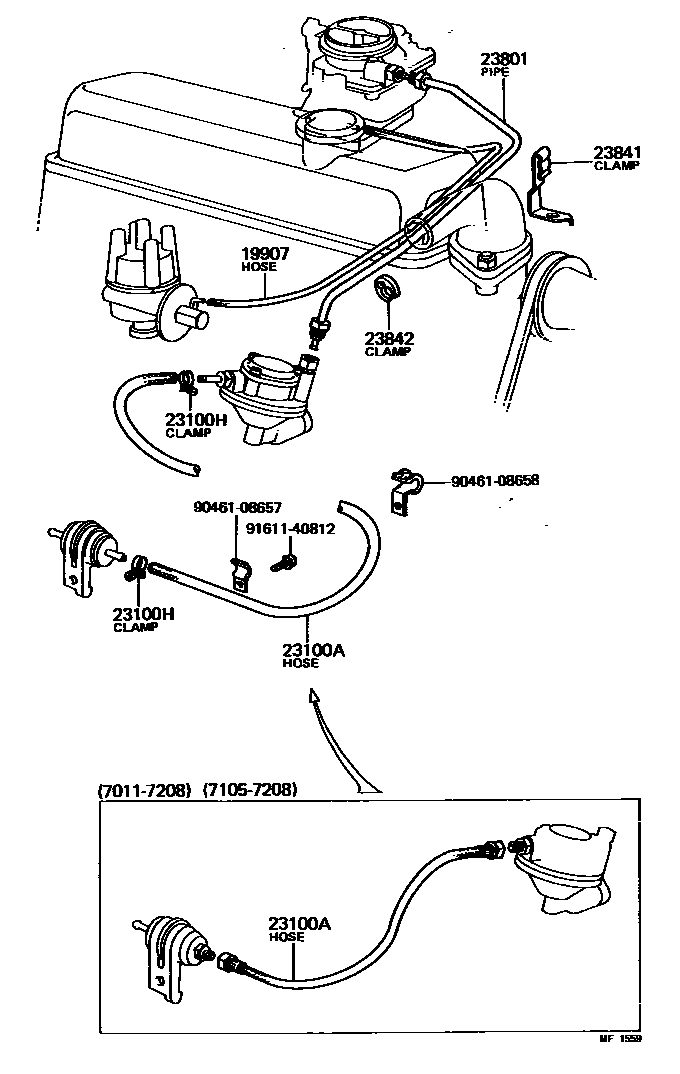

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1

19907HOSE, VACUUM, NO.1

main90445-07004i3K..KM10197304-197511

main90445-07159i3K..KM10197105-197304

23100AHOSE, FUEL

main90445-12039i3KJ..KM10..V197511-197705

main90445-12062i3KJ..KM10..V197710-197802

L=960

main90445-12070i3KJ..KM10..V197705-197710

L=940

main90445-12084i4KJ..KM11..V197903-197909

L=950

main90447-12008i4KJ..KM11..T3197903-197909

main90923-01151i3K..KM10..TR197105-197208

main90923-01152i3K..KM10..SRF197105-197208

main95331-06040i3K..KM10..TR197304-197408

main95331-06095i3K..KM10..SRF197304-197511

main95331-08060i3K..KM10..TR197208-197304

main95331-08095i3K..KM10..SRF197208-197304

main95332-06040i3KJ..KM10..T3197705-197710

L=400

main95332-06042i3KJ..KM10..T3197710-197802

L=420

main95332-06095i4KJ..KM11..V197802-197903

L=950

23100HCLIP(FOR FUEL HOSE)

main90467-12140×2i3K..KM10197304-197402

main90467-13138×2i3K..KM10197208-197304

main96132-30600×2i3K#,4KJ..KM1#197402-197909

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13010i4KJ..KM11197802-197903

main23801-13030i4KJ..KM11197903-197909

main23801-24011i3K#..KM10197105-197802

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90461-08532i3K#,4KJ..KM1#197105-197909

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-11010i3K..KM10197105-197511

9046108657

main90461-08657

9046108658

main90461-08658

9161140812

main91611-40812

9 parts on this diagram · 4 diagrams in section
