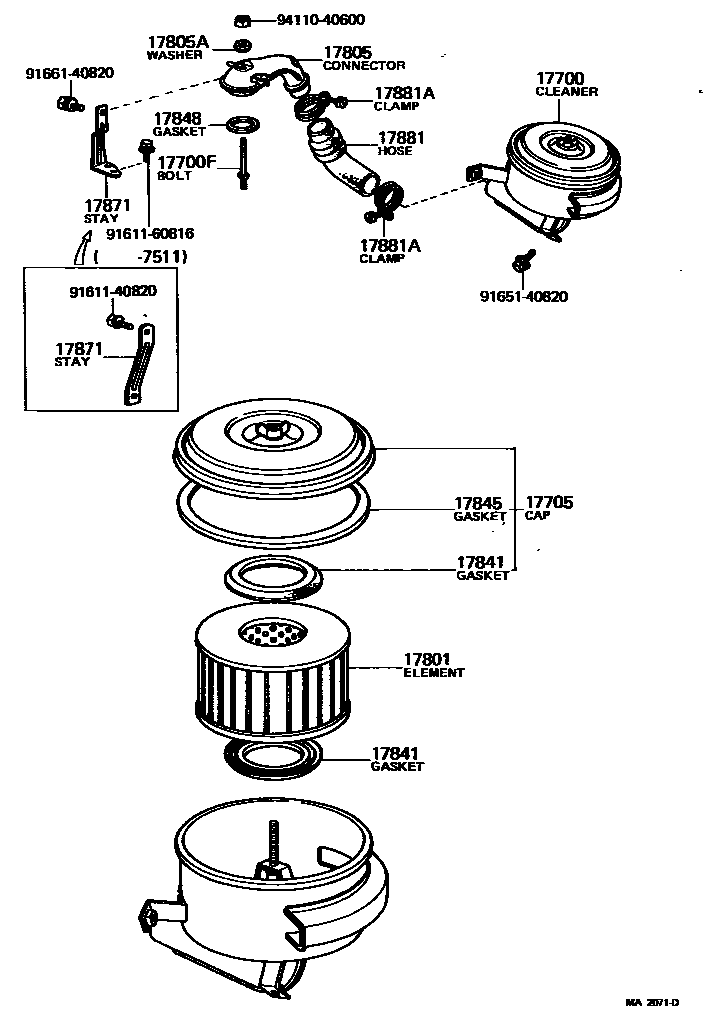

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-13030i4KJ..KM11197802-197909

main17700-24110i3K..KM10197105-197511

main17700-24111i3KJ..KM10..T3197607-197802

main17700-24440i3KJ..KM10..V197511-197802

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06090i3K..KM10197105-197304

main90116-06222i3KJ,4KJ..KM1#197511-197909

L=80,S=12&28

main90116-06230i3K..KM10197304-197511

L=74,S=12&25

17705CAP SUB-ASSY, AIR CLEANER

main17705-24060i3K..KM10197105-197511

main17705-24061i3KJ..KM10197511-197802

main17705-24250i4KJ..KM11197802-197909

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23020i3K#,4KJ..KM1#197105-197909

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17861-13010i4KJ..KM11197802-197909

main17861-24010i3K..KM10197105-197304

main17861-24011i3K..KM10197304-197511

main17861-24021i3KJ..KM10197511-197802

17805AGASKET & WASHER, SEAL

main90210-06001i3K..KM10197105-197404

main90210-06023i3K#,4KJ..KM1#197404-197909

17841GASKET, FILTER ELEMENT

main17841-24030×2i3K#,4KJ..KM1#197105-197909

17845GASKET, AIR CLEANER CAP

main17845-24030i3K#,4KJ..KM1#197105-197909

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187i3K#,4KJ..KM1#197105-197909

17871STAY, AIR CONNECTOR

main17871-13010i4KJ..KM11197802-197909

main17871-24010i3K..KM10197105-197511

main17871-24011i3KJ..KM10197511-197802

17881HOSE, AIR CLEANER, NO.1

main17881-13020i4KJ..KM11197802-197909

main17881-24010i3K#..KM10197105-197802

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-78001×2i4KJ..KM11197802-197909

main96111-10560×2i3K#..KM10197105-197802

9161140820

main91611-40820

9161160816

main91611-60816

9165140820

main91651-40820

9166140820

main91661-40820

9411040600

main94110-40600

17 parts on this diagram · 2 diagrams in section
