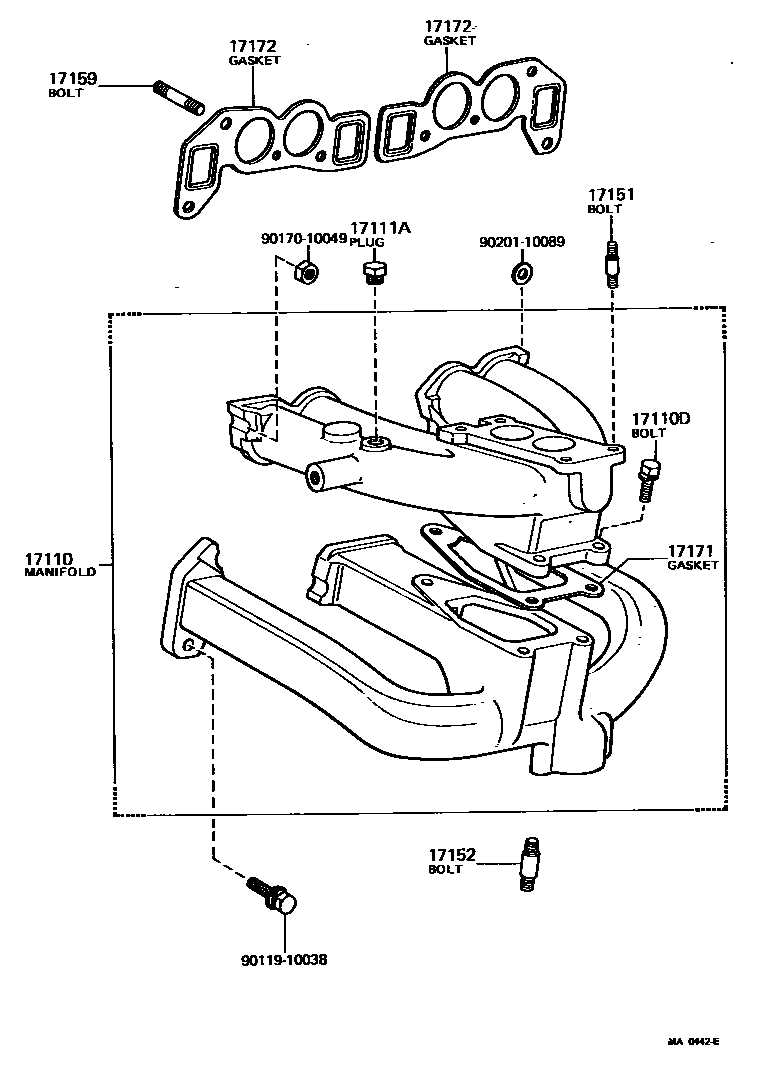

MANIFOLD

0001 1 0002 1 0003 1

17110MANIFOLD ASSY

main17110-13021i4KJ..KM11197802-197909

main17110-24020i3K..KM10197105-197310

main17110-24021i3K..KM10197310-197404

main17110-24022i3K..KM10197404-197511

main17110-24070i3KJ..KM10197511-197709

main17110-24071i3KJ..KM10197709-197802

17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)

main91611-40820×3i3K#,4KJ..KM1#197105-197909

17111APLUG, NO.1

main90345-51005×3i3K#,4KJ..KM1#197105-197909

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08010×4i3K#,4KJ..KM1#197105-197909

L=39,S=13&13

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10007×3i3KJ..KM10197606-197704

L=41,S=14&21

main90116-10017×3i3KJ,4KJ..KM1#197704-197909

L=41,S=14&21

main90116-10042×3i3K#..KM10197105-197606

L=37,S=20&13

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10021×6i3K#..KM10197105-197707

L=42,S=14&14

main92122-41028×6i3KJ,4KJ..KM1#197707-197909

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-24010i3K#,4KJ..KM1#197105-197909

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-22010×2i3K..KM10197105-197404

main17172-24010×2i3K..KM10197404-197511

main17172-24011×2i3KJ,4KJ..KM1#197511-197909

9011910038

main90119-10038

9017010049

main90170-10049

9020110089

main90201-10089

11 parts on this diagram · 3 diagrams in section
