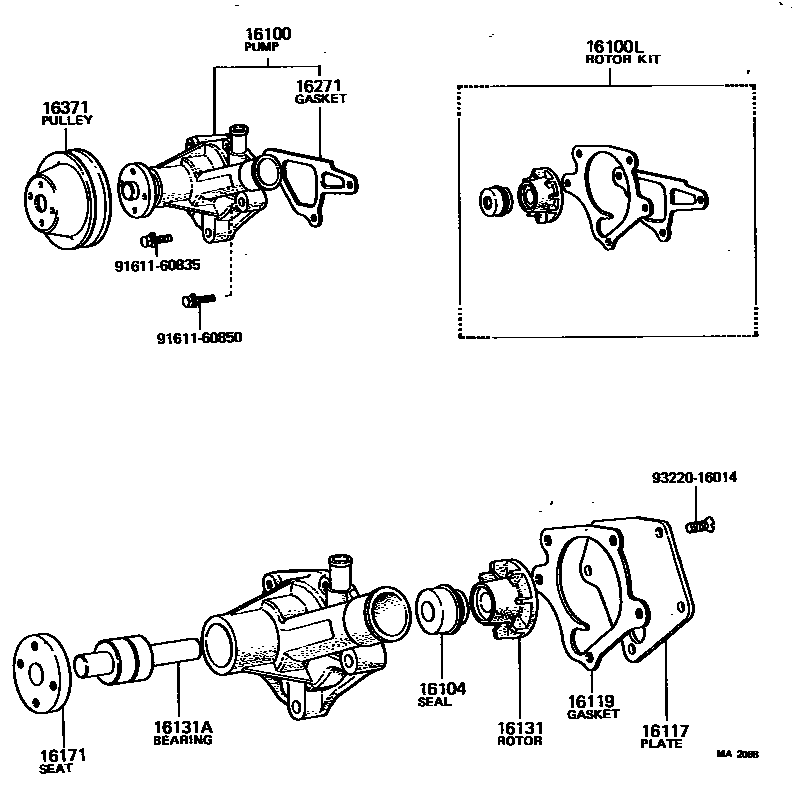

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-29016i3K..KM10197105-197404

main16100-29027i3K#..KM10197404-197707

main16100-29028i3KJ,4KJ..KM1#197707-197909

16100LROTOR KIT, WATER PUMP

main04162-13010i3KJ,4KJ..KM1#197707-197909

main04162-22011i3K..KM10197105-197507

main04162-22012i3K#..KM10197507-197707

16104SEAL SET, WATER PUMP

main16104-22010i3K..KM10197105-197507

main16104-41110i3K#,4KJ..KM1#197507-197908

main16104-41111i4KJ..KM11197908-197909

16117PLATE, WATER PUMP

main16117-13010i3KJ,4KJ..KM1#197707-197909

main16117-22011i3K#..KM10197105-197707

16119GASKET, WATER PUMP BODY

main16124-22010i3K#,4KJ..KM1#197105-197909

16131ROTOR, WATER PUMP

main16131-13010i3KJ,4KJ..KM1#197707-197909

main16131-22011i3K..KM10197105-197507

main16131-22012i3K#..KM10197507-197603

main16131-24030i3KJ..KM10197603-197707

16131ABEARING, WATER PUMP

main90369-30001i3K..KM10197105-197404

R16140RS-1

main90369-30063i3K#,4KJ..KM1#197404-197909

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-22011i3K..KM10197105-197404

main16171-24030i3K..KM10197404-197507

main16171-24031i3K#,4KJ..KM1#197507-197909

16271GASKET, WATER PUMP

main16271-13020i4KJ..KM11197812-197909

main16271-22010i3K#,4KJ..KM1#197105-197812

16371PULLEY, FAN

main16371-22010i3K..KM10197105-197404

main16371-24050i3K#,4KJ..KM1#197404-197909

9161160835

main91611-60835

9161160850

main91611-60850

9322016014

main93220-16014

13 parts on this diagram · 1 diagram in section
