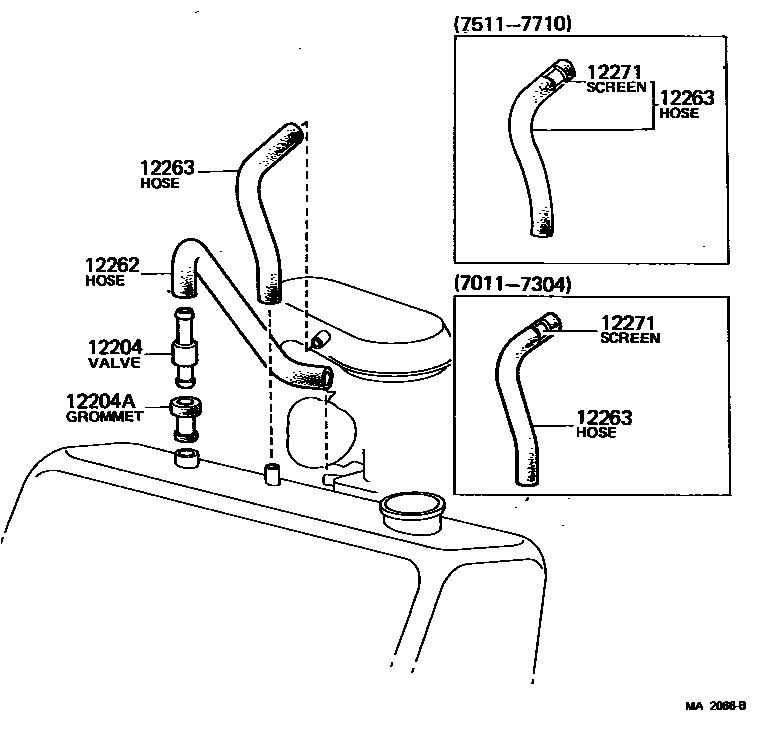

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-24011i3K#,4KJ..KM1#197105-197909

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-16003i3KJ,4KJ..KM1#197710-197909

main90480-16157i3K#..KM10197105-197710

12262HOSE, VENTILATION, NO.2

main12261-22010i3K..KM10197105-197511

main12261-24020i3KJ..KM10197511-197707

main12261-24021i3KJ,4KJ..KM1#197707-197909

12263HOSE, VENTILATION, NO.3

main12029-24031i3KJ..KM10197511-197704

main12029-24032i3KJ..KM10197704-197710

main12262-24010i3K..KM10197304-197511

main90445-17035i3KJ,4KJ..KM1#197710-197909

main90910-05051i3K..KM10197105-197304

12271SCREEN, OIL SEPARATOR

main12271-24010i3KJ..KM10197511-197710

5 parts on this diagram · 1 diagram in section
