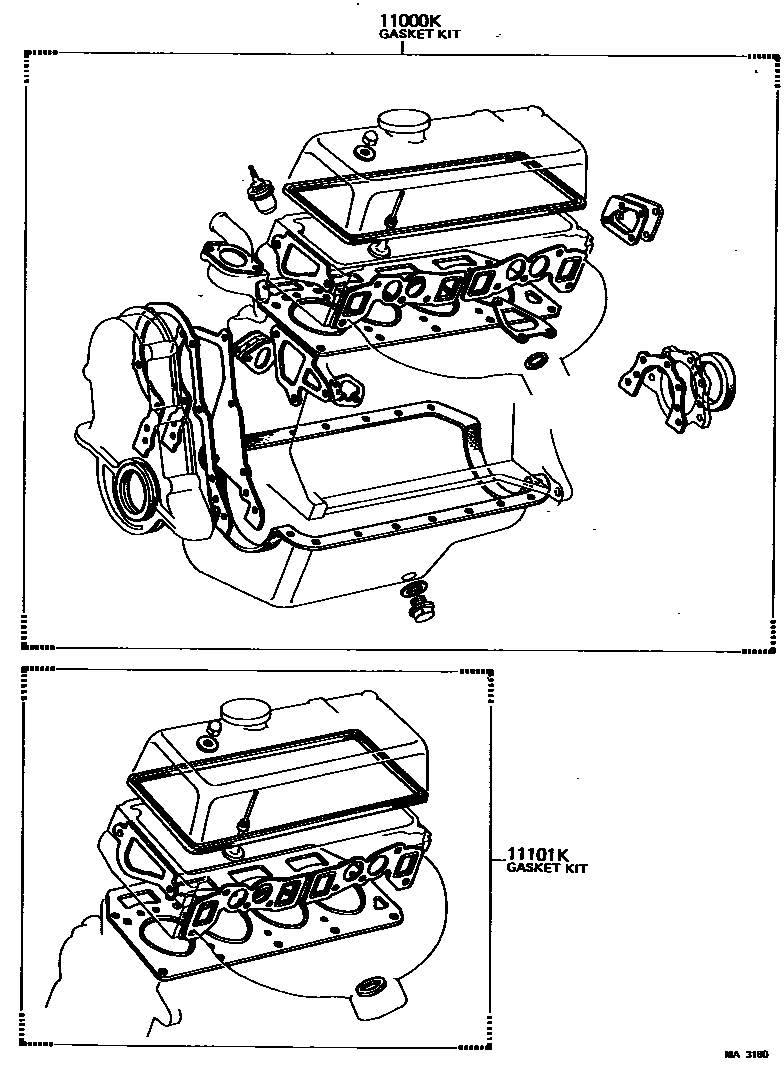

ENGINE OVERHAUL GASKET KIT

11000KGASKET KIT, ENGINE OVERHAUL

main04111-13020i4KJ..KM11197802-197909

sub04111-13021

main04111-24011i3K..KM10197105-197404

sub04111-24013

main04111-24022i3K..KM10197404-197410

sub04111-24026

main04111-24023i3K..KM10197410-197511

sub04111-24024

main04111-24040i3KJ..KM10197511-197704

sub04111-24041

main04111-24041i3KJ..KM10197704-197705

sub04111-24052

main04111-24042i3KJ..KM10197705-197708

sub04111-24047

main04111-24043i3KJ..KM10197708-197802

sub04111-24045

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-13010i4KJ..KM11197802-197909

sub04112-24042

main04112-22010i3K..KM10197105-197404

sub04112-22011

main04112-24020i3K..KM10197404-197410

sub04112-24023

main04112-24021i3K..KM10197410-197511

sub04112-24040

main04112-24040i3KJ..KM10197511-197704

sub04112-24041

main04112-24041i3KJ..KM10197704-197708

sub04112-24046

main04112-24042i3KJ..KM10197708-197802

sub04112-24043

2 parts on this diagram · 1 diagram in section
