EPC Data

REAR SEAT & SEAT TRACK

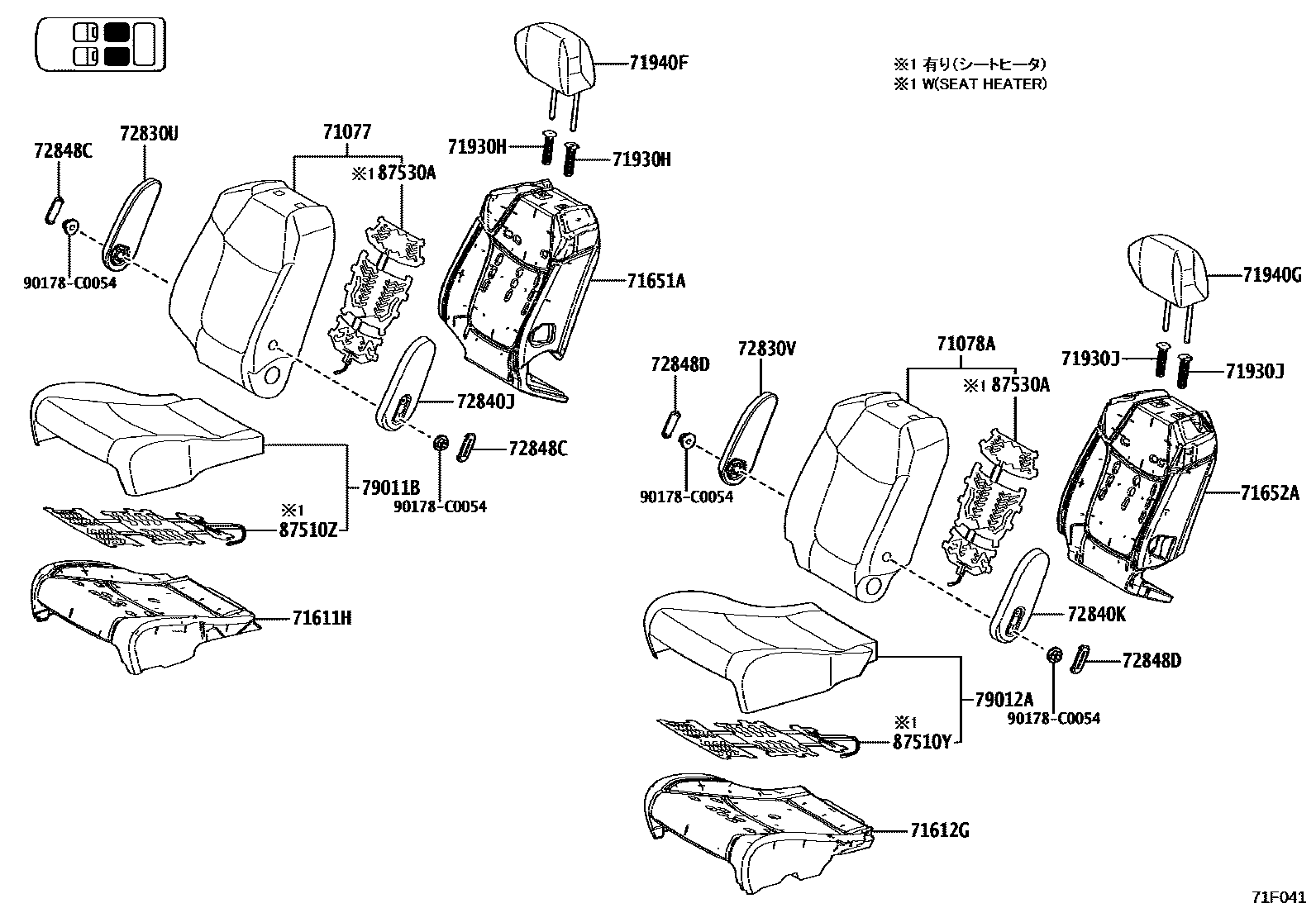

Parts diagram
71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH
main71077-08180-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main71077-08180-E0i202404-202509
NOBLE BROWN,TRIM4#
main71077-08260-B2i202211-202404
GRAY,TRIM1#
main71077-08261-B4i202404-202509
GRAY,TRIM1#
main71077-08261-C0i202404-202509
BLACK,TRIM2#
main71077-08270-B2i202211-202404
GRAY,TRIM1#
main71077-08271-B4i202404-202509
GRAY,TRIM1#
main71077-08271-C0i202404-202509
BLACK,TRIM2#
main71077-08271-E1i202404-202509
NOBLE BROWN,TRIM4#
main71077-08280-C1i202211-202404
BLACK,TRIM2#
main71077-08280-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main71077-08280-E2i202211-202404
NOBLE BROWN,TRIM4#
main71077-08281-C2i202404-202509
BLACK,TRIM2#
main71077-08281-E3i202404-202509
NOBLE BROWN,TRIM4#
main79013-D1390-C0i202404-202509
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main79013-D1390-E1supersedes 71077-08270-E0i202211-202404
SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
71078ACOVER SUB-ASSY, REAR NO.1 SEATBACK, LH
main71078-08180-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main71078-08180-E0i202404-202509
NOBLE BROWN,TRIM4#
main71078-08260-B2i202211-202404
GRAY,TRIM1#
main71078-08261-B4i202404-202509
GRAY,TRIM1#
main71078-08261-C0i202404-202509
BLACK,TRIM2#
main71078-08270-B2i202211-202404
GRAY,TRIM1#
main71078-08270-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main71078-08271-B4i202404-202509
GRAY,TRIM1#
main71078-08271-C0i202404-202509
BLACK,TRIM2#
main71078-08271-E1i202404-202509
NOBLE BROWN,TRIM4#
main71078-08280-C1i202211-202404
BLACK,TRIM2#
main71078-08280-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main71078-08280-E2i202211-202404
NOBLE BROWN,TRIM4#
main71078-08281-C2i202404-202509
BLACK,TRIM2#
main71078-08281-E3i202404-202509
NOBLE BROWN,TRIM4#
71611HPAD, REAR NO.1 SEAT CUSHION, RH
main71611-08060i202211
main71611-08070i202211-202404
main74061-08020i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
71612GPAD, REAR NO.1 SEAT CUSHION, LH
main71612-08070i202211-202509
main71612-08080i202211-202404
main74062-08020i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
71651APAD, REAR NO.1 SEATBACK, RH
main71651-08110i202211-202509
main71651-08120i202211
main74063-08020i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
main79017-D1020i202211-202404
SIDE LIFT UP SEAT
71652APAD, REAR NO.1 SEATBACK, LH
main71652-08110i202211-202509
main71652-08120i202211-202404
main74064-08020i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH
main71930-06070-A0i202404
W(LOCK),FROMAGE,TRIM0#
main71930-06070-B2i202211-202509
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71930-06070-C0i202404
W(LOCK),BLACK,TRIM1#,2#,4#; W(LOCK),BLACK,TRIM2#
main71930-06070-E0i202211-202404
W(LOCK),NEUTRAL BEIGE,TRIM4#; W(LOCK),NEUTRAL BEIGE,TRIM41
main71931-06060-A0i202404
W/O(LOCK),FROMAGE,TRIM0#
main71931-06060-B2i202404-202509
W/O(LOCK),NEUTRAL WARM GRAY,TRIM10
main71931-06060-C0i202211-202404
W/O(LOCK),BLACK,TRIM1#,2#,40,41; W/O(LOCK),BLACK,TRIM2#,4#
main71931-06060-E0i202211-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM4#; W/O(LOCK),NEUTRAL BEIGE,TRIM41
main71930-52030-C4i202404
W(LOCK)&W(BUTTON),SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main71930-52030-L5supersedes 71931-06060-E0i202211-202404
W(LOCK)&W(BUTTON),SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
main71930-52030-P4supersedes 71931-06060-B2i202211-202404
W(LOCK)&W(BUTTON),SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM1#
main71931-42020-C5i202404
W(LOCK)&W/O(BUTTON),SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main71931-42020-M3supersedes 71931-06060-E0i202211-202404
W(LOCK)&W/O(BUTTON),SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
main71931-42020-S7supersedes 71931-06060-B2i202211-202404
W(LOCK)&W/O(BUTTON),SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM1#
71930JSUPPORT ASSY, NO.1 SEAT HEADREST, LH
main71930-06070-A0i202404
W(LOCK),FROMAGE,TRIM0#
main71930-06070-B2i202211-202404
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71930-06070-C0i202211-202404
W(LOCK),BLACK,TRIM1#,2#,40,41; W(LOCK),BLACK,TRIM2#,4#
main71930-06070-E0i202211-202404
W(LOCK),NEUTRAL BEIGE,TRIM4#; W(LOCK),NEUTRAL BEIGE,TRIM41
main71931-06060-A0i202404
W/O(LOCK),FROMAGE,TRIM0#
main71931-06060-B2i202211-202404
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71931-06060-C0i202404-202509
W/O(LOCK),BLACK,TRIM11,2#,4#
main71931-06060-E0i202211-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM4#; W/O(LOCK),NEUTRAL BEIGE,TRIM41
71940FHEADREST ASSY, NO.1 SEAT, RH
main71940-08430-B2i202211-202404
GRAY,TRIM1#
main71940-08431-B6i202404-202509
GRAY,TRIM1#
main71940-08431-C1i202404-202509
BLACK,TRIM2#
main71940-08431-E2i202404-202509
NOBLE BROWN,TRIM4#
main71940-08440-C0i202211-202404
BLACK,TRIM2#
main71940-08440-E0i202211-202404
NOBLE BROWN,TRIM4#
main71940-08440-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main71940-08441-A1i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main71940-08441-C2i202404-202509
BLACK,TRIM2#
main71940-08441-E4i202404-202509
NOBLE BROWN,TRIM4#
main71940-08441-E5i202404-202509
NOBLE BROWN,TRIM4#
main71940-D1180-C0i202404-202509
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main71940-D1180-E2supersedes 71940-08430-E0i202211-202404
SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
71940GHEADREST ASSY, NO.1 SEAT, LH
main71940-08430-B2i202211-202404
GRAY,TRIM1#
main71940-08430-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main71940-08431-B6i202404-202509
GRAY,TRIM1#
main71940-08431-C1i202404-202509
BLACK,TRIM2#
main71940-08431-E2i202404-202509
NOBLE BROWN,TRIM4#
main71940-08440-C0i202211-202404
BLACK,TRIM2#
main71940-08440-E0i202211-202404
NOBLE BROWN,TRIM4#
main71940-08440-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main71940-08441-A1i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main71940-08441-C2i202404-202509
BLACK,TRIM2#
main71940-08441-E4i202404-202509
NOBLE BROWN,TRIM4#
main71940-08441-E5i202404-202509
NOBLE BROWN,TRIM4#
72830UARMREST ASSY, REAR SEAT, RH
main72830-08180-B2i202211-202404
GRAY,TRIM1#
main72830-08181-B3i202404-202509
GRAY,TRIM1#
main72830-08181-C1i202404-202509
BLACK,TRIM2#
main72830-08181-E2i202404-202509
NOBLE BROWN,TRIM4#
main72830-08210-C0i202211-202404
BLACK,TRIM2#
main72830-08210-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main72830-08210-E1i202211-202404
NOBLE BROWN,TRIM4#
main72830-08211-C1i202404-202509
BLACK,TRIM2#
main72830-08211-E2i202404-202509
NOBLE BROWN,TRIM4#
main72830-08230-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main72830-08230-E0i202404-202509
NOBLE BROWN,TRIM4#
main72880-D1F70-C0i202404-202509
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main72880-D1F70-E0supersedes 72830-08180-E1i202211-202404
SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
72830VARMREST ASSY, REAR NO.1 SEAT, RH
main72810-08160-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main72810-08160-E0i202404-202509
NOBLE BROWN,TRIM4#
main72830-08180-B2i202211-202404
GRAY,TRIM1#
main72830-08180-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main72830-08181-B3i202404-202509
GRAY,TRIM1#
main72830-08181-C1i202404
BLACK,TRIM2#
main72830-08181-E2i202404-202509
NOBLE BROWN,TRIM4#
main72830-08210-C0i202211-202404
BLACK,TRIM2#
main72830-08210-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main72830-08210-E1i202211-202404
NOBLE BROWN,TRIM4#
main72830-08211-C1i202404-202509
BLACK,TRIM2#
main72830-08211-E2i202404-202509
NOBLE BROWN,TRIM4#
72840JARMREST ASSY, REAR SEAT, LH
main72820-08320-B2i202211-202404
GRAY,TRIM1#
main72820-08321-B3i202404-202509
GRAY,TRIM1#
main72820-08321-C1i202404
BLACK,TRIM2#
main72820-08321-E2i202404-202509
NOBLE BROWN,TRIM4#
main72820-08350-C0i202211-202404
BLACK,TRIM2#
main72820-08350-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main72820-08350-E1i202211-202404
NOBLE BROWN,TRIM4#
main72820-08351-C1i202404-202509
BLACK,TRIM2#
main72820-08351-E2i202404-202509
NOBLE BROWN,TRIM4#
main72820-08370-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main72820-08370-E0i202404-202509
NOBLE BROWN,TRIM4#
main72890-D1G70-C0i202404-202509
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main72890-D1G70-E0supersedes 72820-08320-E1i202211-202404
SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
72840KARMREST ASSY, REAR NO.1 SEAT, LH
main72820-08320-B2i202211-202404
GRAY,TRIM1#
main72820-08320-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main72820-08321-B3i202404-202509
GRAY,TRIM1#
main72820-08321-C1i202404-202509
BLACK,TRIM2#
main72820-08321-E2i202404-202509
NOBLE BROWN,TRIM4#
main72820-08350-C0i202211-202404
BLACK,TRIM2#
main72820-08350-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main72820-08350-E1i202211-202404
NOBLE BROWN,TRIM4#
main72820-08351-C1i202404-202509
BLACK,TRIM2#
main72820-08351-E2i202404-202509
NOBLE BROWN,TRIM4#
main72840-08020-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main72840-08020-E0i202404-202509
NOBLE BROWN,TRIM4#
72848CCAP, NO.1 SEAT ARMREST, NO.1 RH
main72848-08060-B0×2i202211-202404
NEUTRAL WARM GRAY,TRIM1#
main72848-08060-C0i202404
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main72848-08060-E0×2i202211-202404
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM41
main72848-28030-C3×2i202404
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main72848-28030-P6×2i202211-202404
SIDE LIFT UP SEAT,NEUTRAL WARM GRAY,TRIM1#
72848DCAP, NO.1 SEAT ARMREST, NO.1 LH
main72848-08060-B0×3i202404-202509
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM10
main72848-08060-C0×2i202211-202404
BLACK,TRIM1#,2#,40; BLACK,TRIM2#,4#
main72848-08060-E0×2i202211-202404
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM41
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79011-08290-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main79011-08290-E0i202404-202509
NOBLE BROWN,TRIM4#
main79011-08420-B2i202211-202404
GRAY,TRIM1#
main79011-08421-B4i202404-202509
GRAY,TRIM1#
main79011-08421-C0i202404
BLACK,TRIM2#
main79011-08430-B2i202211-202404
GRAY,TRIM1#
main79011-08431-B4i202404-202509
GRAY,TRIM1#
main79011-08431-C0i202404-202509
BLACK,TRIM2#
main79011-08431-E1i202404-202509
NOBLE BROWN,TRIM4#
main79011-08440-C1i202211-202404
BLACK,TRIM2#
main79011-08440-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main79011-08440-E2i202211-202404
NOBLE BROWN,TRIM4#
main79011-08441-C2i202404
BLACK,TRIM2#
main79011-08441-E3i202404
NOBLE BROWN,TRIM4#
main79011-D1160-C0i202404-202509
SIDE LIFT UP SEAT&REAR NO.1 SEAT-W(RH SEAT:SIDE LIFT UP SEAT),BLACK,TRIM2#
main79011-D1160-E0supersedes 79011-08430-E0i202211-202404
SIDE LIFT UP SEAT,NEUTRAL BEIGE,TRIM4#
79012ACOVER SUB-ASSY, NO.1 SEAT CUSHION, LH
main79012-08360-B2i202211-202404
GRAY,TRIM1#
main79012-08361-B4i202404-202509
GRAY,TRIM1#
main79012-08361-C0i202404
BLACK,TRIM2#
main79012-08370-B2i202211-202404
GRAY,TRIM1#
main79012-08370-E0i202211-202404
NEUTRAL BEIGE,TRIM4#
main79012-08371-B4i202404-202509
GRAY,TRIM1#
main79012-08371-C0i202404-202509
BLACK,TRIM2#
main79012-08371-E1i202404-202509
NOBLE BROWN,TRIM4#
main79012-08380-C1i202211-202404
BLACK,TRIM2#
main79012-08380-E1i202211-202404
NEUTRAL BEIGE,TRIM4#
main79012-08380-E2i202211-202404
NOBLE BROWN,TRIM4#
main79012-08381-C2i202404
BLACK,TRIM2#
main79012-08381-E3i202404
NOBLE BROWN,TRIM4#
main79012-08390-A0i202404-202509
FROMAGE,TRIM0#; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),FROMAGE,TRIM0#
main79012-08390-E0i202404-202509
NOBLE BROWN,TRIM4#
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
main87510-08120i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
main87510-08130i202211
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-08120i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
main87510-08130i202211-202404
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
main87530-08100i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-08080×2i202211-202404
main87530-08100i202404
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
90178C0054
main90178-C0054

23 parts on this diagram · 23 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
