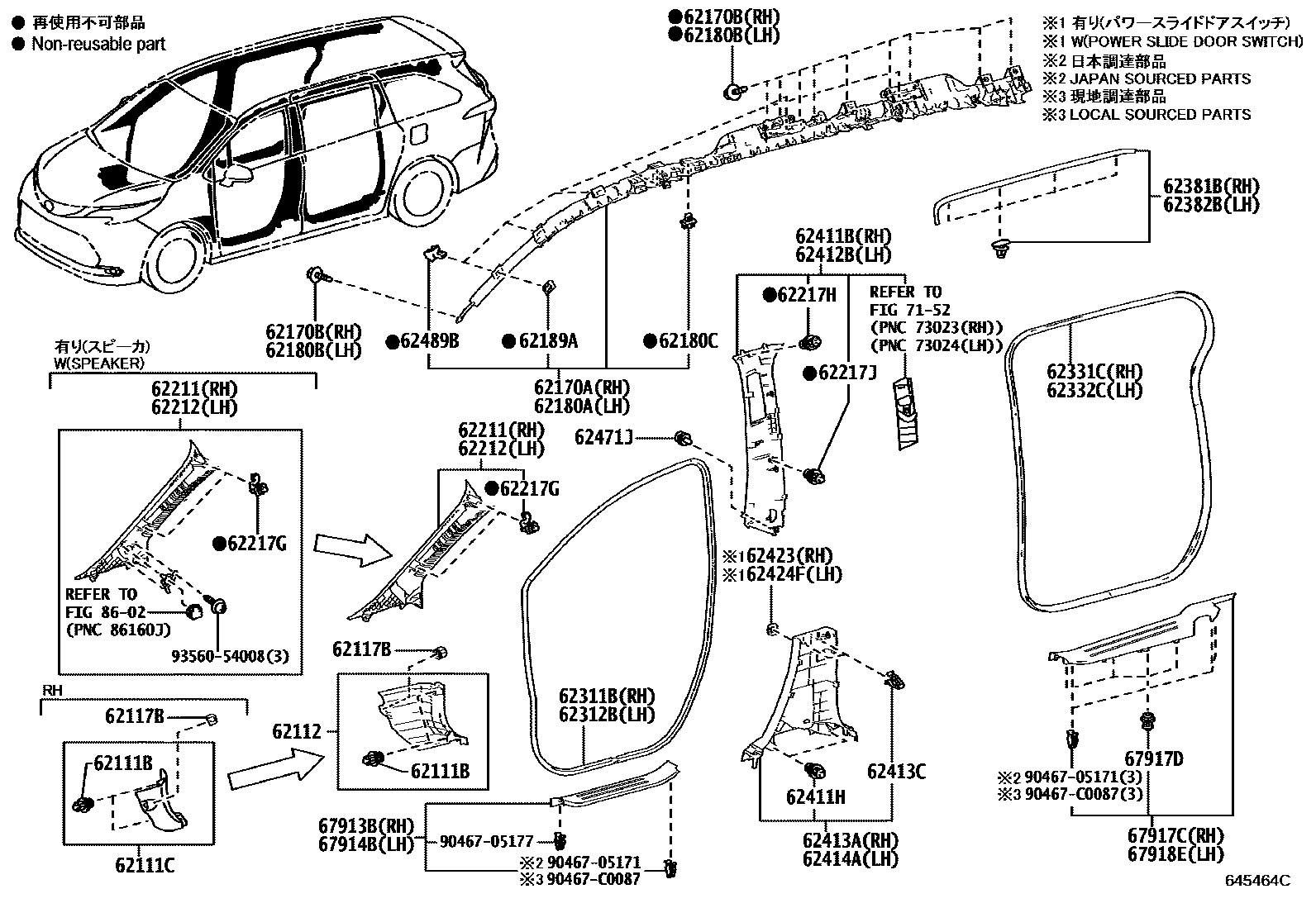

INSIDE TRIM BOARD

0001 1 0002 1LH 0003 1RH

62111BCLIP(FOR COWL SIDE TRIM)

main90467-C0036iAXLH4#..E,L,P,V,W,X202211

62111CBOARD, COWL SIDE TRIM, RH

main62111-08070-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

main62111-08070-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main62111-08070-C0iAXLH40..N202211

BLACK,TRIM0#,1#,2#,4#

main62111-08070-C0iAXLH40..N202211

BLACK,TRIM2#

main62111-08070-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main62111-08070-C0iAXLH45202404

BLACK,TRIM2#,4#

main62111-08070-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-08070-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

main62112-08070-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main62112-08070-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main62112-08070-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main62112-08070-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main62112-08070-C0iAXLH40..P202211

BLACK,TRIM2#

main62112-08070-C0iAXLH45202404

BLACK,TRIM2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iAXLH4#..E,L,P,V,W,X202211

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-08040iAXLH4#..E,L,P,V,W,X202211

62170BBOLT, W/WASHER

main90119-C0107iAXLH4#..E,L,P,V,W,X202211

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-08040iAXLH4#..E,L,P,V,W,X202211

62180BBOLT, W/WASHER

main90119-C0107iAXLH4#..E,L,P,V,W,X202211

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iAXLH4#..E,L,P,V,W,X202211

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAXLH4#..E,L,P,V,W,X202211

62211GARNISH, FRONT PILLAR, RH

main62211-08140-B0iAXLH40..X202211-202509

LT.GRAY,TRIM10

main62211-08140-B0iAXLH40..X202211-202509

LT.GRAY,TRIM1#

main62211-08140-B1iAXLH40..L202211

NEUTRAL WARM GRAY,TRIM2#

main62211-08140-B1iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM0#,11,2#,4#

main62211-08140-B1iAXLH40..L202211

NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#

main62211-08140-B1iAXLH45202404

NEUTRAL WARM GRAY,TRIM2#,4#

main62211-08150-B0iAXLH40..P202211

NEUTRAL WARM GRAY,TRIM0#,2#,4#

62212GARNISH, FRONT PILLAR, LH

main62212-08140-B0iAXLH40..E202211-202509

LT.GRAY,TRIM10

main62212-08140-B0iAXLH40..E202211-202509

LT.GRAY,TRIM1#

main62212-08140-B1iAXLH40..N202211

NEUTRAL WARM GRAY,TRIM2#

main62212-08140-B1iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM0#,11,2#,4#

main62212-08140-B1iAXLH40..L202211

NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#

main62212-08140-B1iAXLH45202404

NEUTRAL WARM GRAY,TRIM2#,4#

main62212-08150-B0iAXLH40..P202211

NEUTRAL WARM GRAY,TRIM0#,2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iAXLH40..N202211

62217HCLIP, CENTER PILLER GARNISH

main90467-C0035iAXLH4#..E,L,P,V,W,X202211

62217JCLIP, CENTER PILLER GARNISH

main90467-C0036iAXLH4#..E,L,P,V,W,X202211

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-08050iAXLH4#202211

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-08050iAXLH4#202211

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-08030iAXLH4#202211

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-08030iAXLH4#202211

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-08070iAXLH4#202211

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-08070iAXLH4#202211

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-08090-A0iAXLH40..L202211

FROMAGE,TRIM0#,1#,41

main62411-08090-A0iAXLH40..X202211-202509

FROMAGE,TRIM0#,11,41

main62411-08090-A0iAXLH40..P202211

FROMAGE,TRIM0#,40

main62411-08090-B0iAXLH40..N202211-202509

LT.GRAY,TRIM1#

main62411-08090-B0iAXLH40..X202211-202509

LT.GRAY,TRIM10

main62411-08090-B1iAXLH40..N202211

NEUTRAL WARM GRAY,TRIM2#

main62411-08090-B1iAXLH40..L,P,X202211

NEUTRAL WARM GRAY,TRIM2#,40,41

main62411-08090-B1iAXLH45202404

NEUTRAL WARM GRAY,TRIM2#,4#

62411HCLIP

main90467-C0035iAXLH4#..E,L,P,V,W,X202211

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-08100-A0iAXLH40..L202211

FROMAGE,TRIM0#,1#,41

main62412-08100-A0iAXLH40..X202211-202509

FROMAGE,TRIM0#,11,41

main62412-08100-A0iAXLH40..P202211

FROMAGE,TRIM0#,40

main62412-08100-B0iAXLH40..N202211-202509

LT.GRAY,TRIM1#

main62412-08100-B0iAXLH40..X202211-202509

LT.GRAY,TRIM10

main62412-08100-B1iAXLH40..E202211

NEUTRAL WARM GRAY,TRIM2#

main62412-08100-B1iAXLH40..L,P,X202211

NEUTRAL WARM GRAY,TRIM2#,40,41

main62412-08100-B1iAXLH45202404

NEUTRAL WARM GRAY,TRIM2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-08110-B0iAXLH40..E202211-202509

NEUTRAL WARM GRAY,TRIM10

main62413-08110-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main62413-08110-C0iAXLH40..E202211

BLACK,TRIM2#

main62413-08110-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main62413-08110-C0iAXLH45..W202404

BLACK,TRIM2#,4#

main62413-08120-C0iAXLH40..L202211

BLACK,TRIM0#,2#,4#

main62413-08120-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main62413-08120-C0iAXLH45..V202404

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-05171iAXLH40202211-202311

main90467-05171iAXLH4#202311

(J)

main90467-C0087iAXLH4#202311

(L)

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-08090-B0iAXLH40..E202211-202509

NEUTRAL WARM GRAY,TRIM1#

main62414-08090-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main62414-08090-C0iAXLH40..E202211

BLACK,TRIM2#

main62414-08090-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main62414-08090-C0iAXLH45..W202404

BLACK,TRIM2#,4#

main62414-08100-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main62414-08100-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main62414-08100-C0iAXLH45..V202404

BLACK,TRIM2#,4#

62423COVER, CENTER PILLAR GARNISH, LOWER RH

main62423-08060-C0iAXLH40..L202211

BLACK,TRIM0#,1#,2#,4#

main62423-08060-C0iAXLH40..L202211

BLACK,TRIM0#,2#,4#

main62423-08060-C0iAXLH45..V202404

BLACK,TRIM2#,4#

62424FCOVER, CENTER PILLAR GARNISH, LOWER LH

main62424-08060-C0iAXLH40..L202211

BLACK,TRIM0#,1#,2#,4#

main62424-08060-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main62424-08060-C0iAXLH45..V202404

BLACK,TRIM2#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-C0046iAXLH40..N202211

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010iAXLH40..N202211

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-08050-B0iAXLH40..E202211-202509

NEUTRAL WARM GRAY,TRIM1#

main67913-08050-C0iAXLH40..E202404

BLACK,TRIM2#

main67913-08060-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main67913-08060-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main67913-08060-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main67913-08060-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main67913-08060-C0iAXLH45202404

BLACK,TRIM2#,4#

main67913-08060-C0iAXLH45202404

SIDE LIFT UP SEAT,BLACK,TRIM1#,2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-08050-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

main67914-08050-C0iAXLH40..E202404

BLACK,TRIM2#

main67914-08060-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main67914-08060-C0iAXLH40..L202211

BLACK,TRIM0#,1#,2#,4#

main67914-08060-C0iAXLH40..L202211

BLACK,TRIM0#,2#,4#

main67914-08060-C0iAXLH45202404

BLACK,TRIM2#,4#

main67914-08060-C0iAXLH45202404

SIDE LIFT UP SEAT,BLACK,TRIM1#,2#,4#

main67914-08060-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-08070-B0iAXLH40..E202211-202509

NEUTRAL WARM GRAY,TRIM1#

main67917-08070-C0iAXLH40..E202404

BLACK,TRIM2#

main67917-08090-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main67917-08090-C0iAXLH45202404

BLACK,TRIM2#,4#

main67917-08090-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main67917-08090-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main67917-08090-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-C0033iAXLH4#..E,L,P,V,W,X202211

67918EPLATE, REAR DOOR SCUFF, LH

main67918-08070-B0iAXLH40..E202211-202509

NEUTRAL WARM GRAY,TRIM1#

main67918-08070-C0iAXLH40..N202404

BLACK,TRIM2#

main67918-08090-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main67918-08090-C0iAXLH40..X202404

SIDE LIFT UP SEAT,BLACK,TRIM1#,2#,4#

main67918-08090-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main67918-08090-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main67918-08090-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main67918-08090-C0iAXLH45202404

BLACK,TRIM2#,4#

7152

8602

9046705171

main90467-05171

9046705177

main90467-05177

90467C0087

main90467-C0087

9356054008

main93560-54008

42 parts on this diagram · 3 diagrams in section
