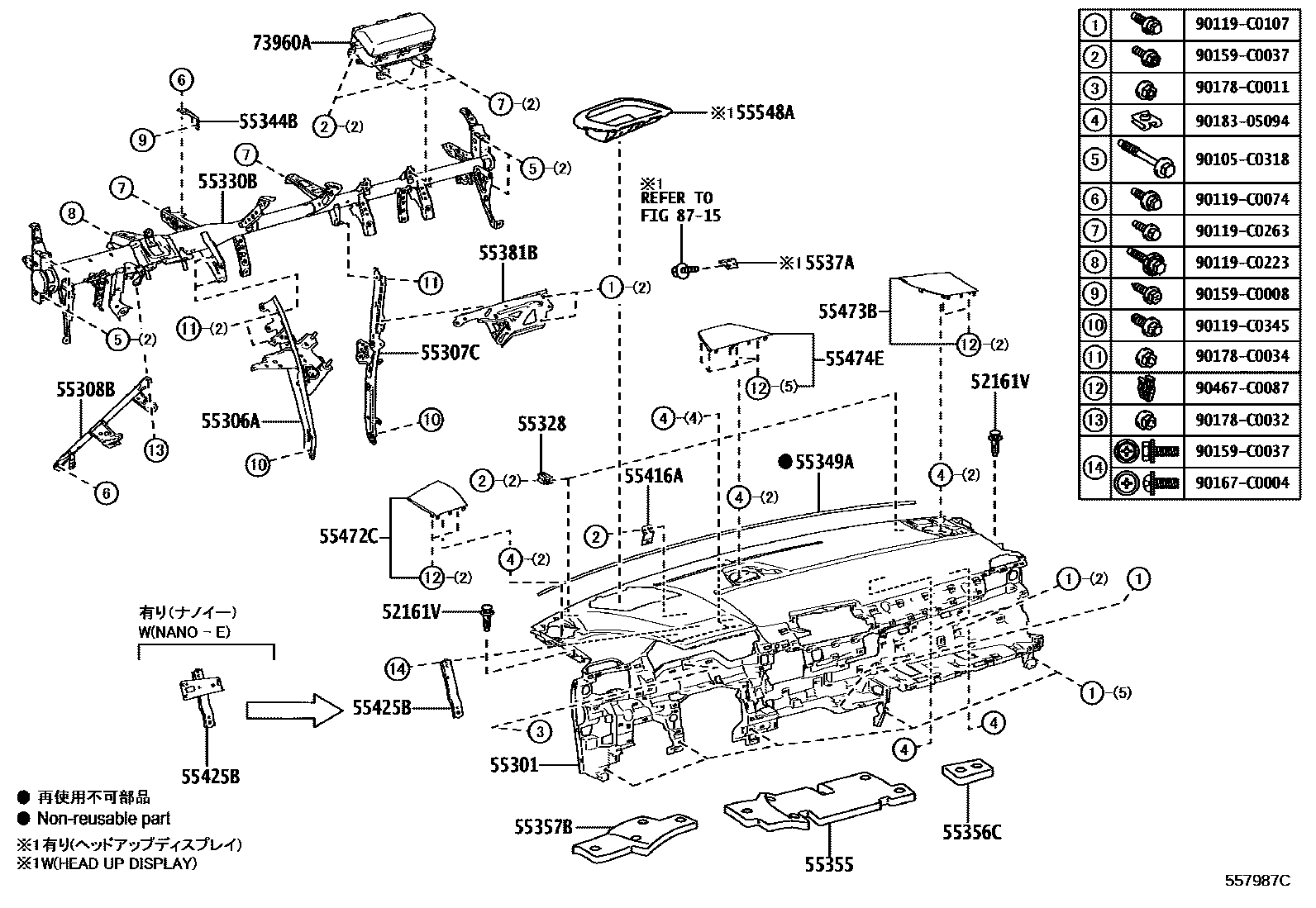

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iAXLH40..N202211-202404

55301PANEL SUB-ASSY, INSTRUMENT

main55301-08120-C0iAXLH40..N202211

BLACK,TRIM1#,2#

main55301-08120-C0iAXLH40..L,X202211-202404

BLACK,TRIM0#,1#,2#,4#

main55301-08130-C0iAXLH45202404

BLACK,TRIM0#,1#,2#,41

main55301-08130-C0iAXLH40..P202211

BLACK,TRIM0#,2#,41

main55301-08130-C0iAXLH40..X202404

BLACK,TRIM2#

main55301-08130-E0iAXLH40..P202211

NOBLE BROWN,TRIM40

main55301-08130-E0iAXLH40..L,X202404

NOBLE BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-08070iAXLH4#..E,L,P,V,W,X202211

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-08060iAXLH4#..E,L,P,V,W,X202211

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-08040iAXLH4#..E,L,P,V,W,X202211

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iAXLH40..L,X202211-202404

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-08090iAXLH4#..E,L,P,V,W,X202211

55344BBRACKET, AIR CONDITIONING MOUNTING, NO.1

main55344-08030iAXLH4#..E,L,P,V,W,X202211

55349ACUSHION, INSTRUMENT PANEL

main55349-08050iAXLH40..L,X202211-202404

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-08080iAXLH4#..E,L,P,V,W,X202211

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-08080iAXLH4#..E,L,P,V,W,X202211

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-08090iAXLH4#..E,L,P,V,W,X202211

5537ABRACKET, INSTRUMENT PANEL GUIDE, NO.3

main5537A-08050iAXLH4#..P,V,W202211

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-08060iAXLH4#..E,L,P,V,W,X202211

55416ARETAINER, METER HOOD, NO.1

main55416-08070iAXLH4#..E,P,V,W202211-202404

55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

main55425-08080iAXLH40..N202211

main55425-08090iAXLH4#..L,P,V202211

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-08040-C0iAXLH40..E202211

BLACK,TRIM1#,2#

main55472-08040-C0iAXLH40..P202211

BLACK,TRIM0#,2#,41

main55472-08040-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,41

main55472-08040-C0iAXLH45202404

BLACK,TRIM2#

main55472-08040-E0iAXLH40..L,P,X202211

NOBLE BROWN,TRIM40

main55472-08040-E0iAXLH45202404

NOBLE BROWN,TRIM4#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-08040-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,41

main55473-08040-C0iAXLH40..P202211

BLACK,TRIM1#,2#

main55473-08040-C0iAXLH40..L,X202211

BLACK,TRIM0#,2#,41

main55473-08040-C0iAXLH45202404

BLACK,TRIM2#

main55473-08040-E0iAXLH45202404

NOBLE BROWN,TRIM4#

main55473-08040-E0iAXLH40..L,P,X202211

NOBLE BROWN,TRIM40

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55474-08120-C0iAXLH40..N202211

BLACK,TRIM1#,2#

main55474-08120-C0iAXLH40..P202211

BLACK,TRIM0#,2#,41

main55474-08120-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,41

main55474-08120-C0iAXLH45202404

BLACK,TRIM2#

main55474-08120-E0iAXLH40..L,P,X202211

NOBLE BROWN,TRIM40

main55474-08120-E0iAXLH45202404

NOBLE BROWN,TRIM4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-08030-C0iAXLH40..X202404

BLACK,TRIM2#

main55548-08030-C0iAXLH40..P202211

BLACK,TRIM0#,2#,41

main55548-08030-C0iAXLH40..X202404

BLACK,TRIM0#,1#,2#,41

main55548-08030-E0iAXLH40..L,X202211

NOBLE BROWN,TRIM40

main55548-08030-E0iAXLH40..L,X202404

NOBLE BROWN,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-08090iAXLH4#..E,L,P,V,W,X202211

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

90105C0318

main90105-C0318

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0345

main90119-C0345

90159C0008

main90159-C0008

90159C0037

main90159-C0037

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

90467C0087

main90467-C0087

36 parts on this diagram · 4 diagrams in section
