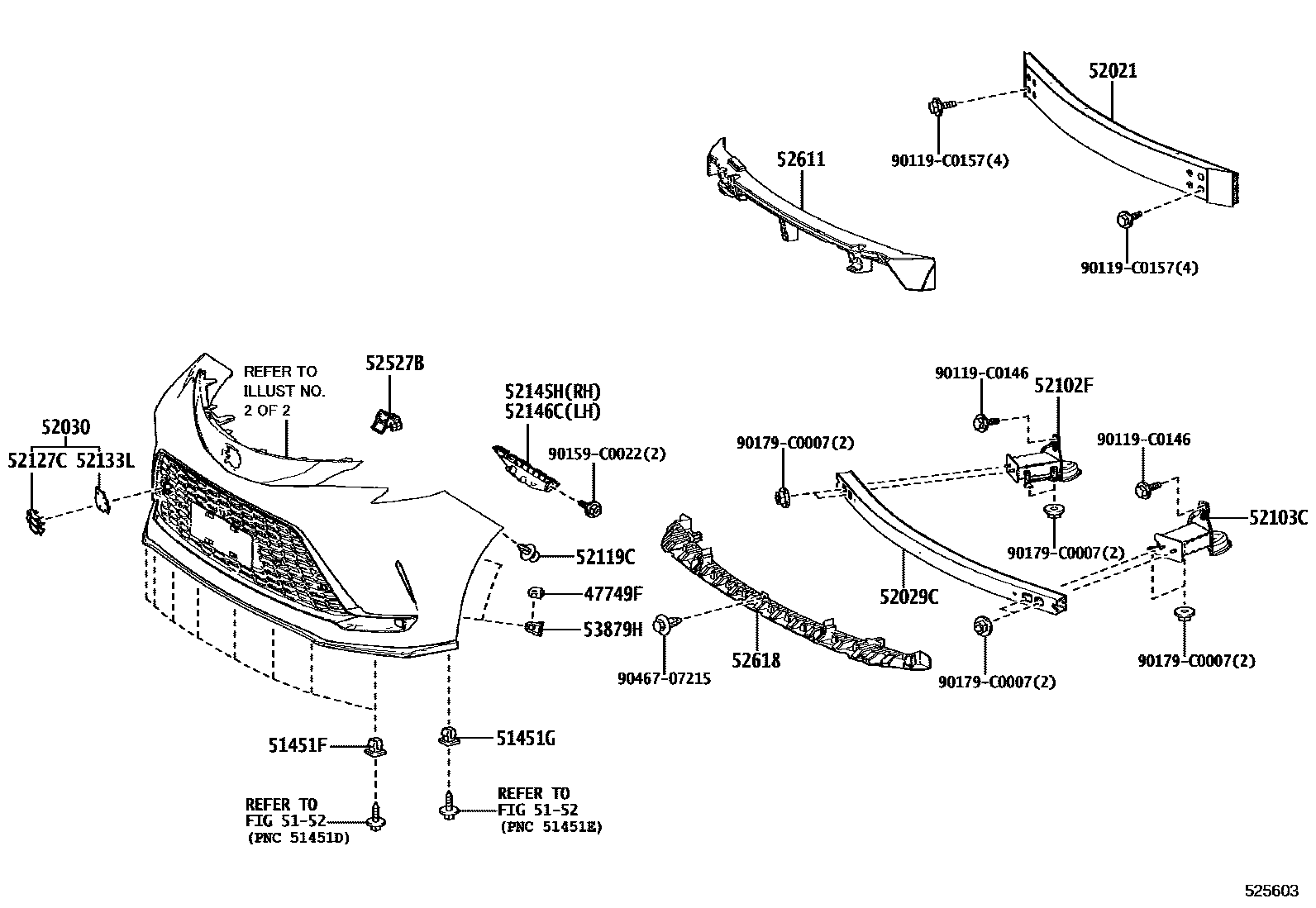

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-02010×4iAXLH4#..E,L,P,V,W,X202308

main47749-33030×4iAXLH40..E,L,P,X202211-202308

51451FGROMMET, NO.1

main90189-06237×8iAXLH40..N202404

(J)

main90189-C0020×8iAXLH40..N202404

(L)

51451GGROMMET, NO.2

main90189-06237×2iAXLH40..N202211-202404

main90189-C0020×2iAXLH40..N202404

(L)

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-08070iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-08040iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

52030COVER ASSY, FRONT BUMPER HOLE, RH

main52030-08080iAXLH40..E202211

NO PAINT REQ.

main52030-08090iAXLH4#..L,N,P,V,W,X202211

NO PAINT REQ.

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-08040iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-08040iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2iAXLH4#..E,L,P,V,W,X202211

main90467-C0048×2iAXLH40..N202309-202404

(L)

52127CCOVER, FRONT BUMPER HOLE

main52127-08160iAXLH40..E202211

main52127-08170iAXLH4#..L,N,P,V,W,X202211

52133LEXTENSION, FRONT BUMPER, NO.2 RH

main52133-08070iAXLH4#202211

52145HSTAY, FRONT BUMPER SIDE, RH

main52145-08090iAXLH4#202211

52146CSTAY, FRONT BUMPER SIDE, LH

main52146-08080iAXLH4#202211

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-08020iAXLH4#202211

52611ABSORBER, FRONT BUMPER ENERGY

main52611-08120×2iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

52618ABSORBER, FRONT BUMPER, LOWER

main52618-08040iAXLH4#..E,L,P,V,W,X; AXLH40..N202211

53879HRETAINER, FRONT FENDER LINER

main53879-02050×4iAXLH4#..E,L,P,V,W,X202308

main53879-33030×4iAXLH40..E,L,P,X202211-202308

90119C0146

main90119-C0146

90119C0157

main90119-C0157

90159C0022

main90159-C0022

90179C0007

main90179-C0007

9046707215

main90467-07215

23 parts on this diagram · 2 diagrams in section
