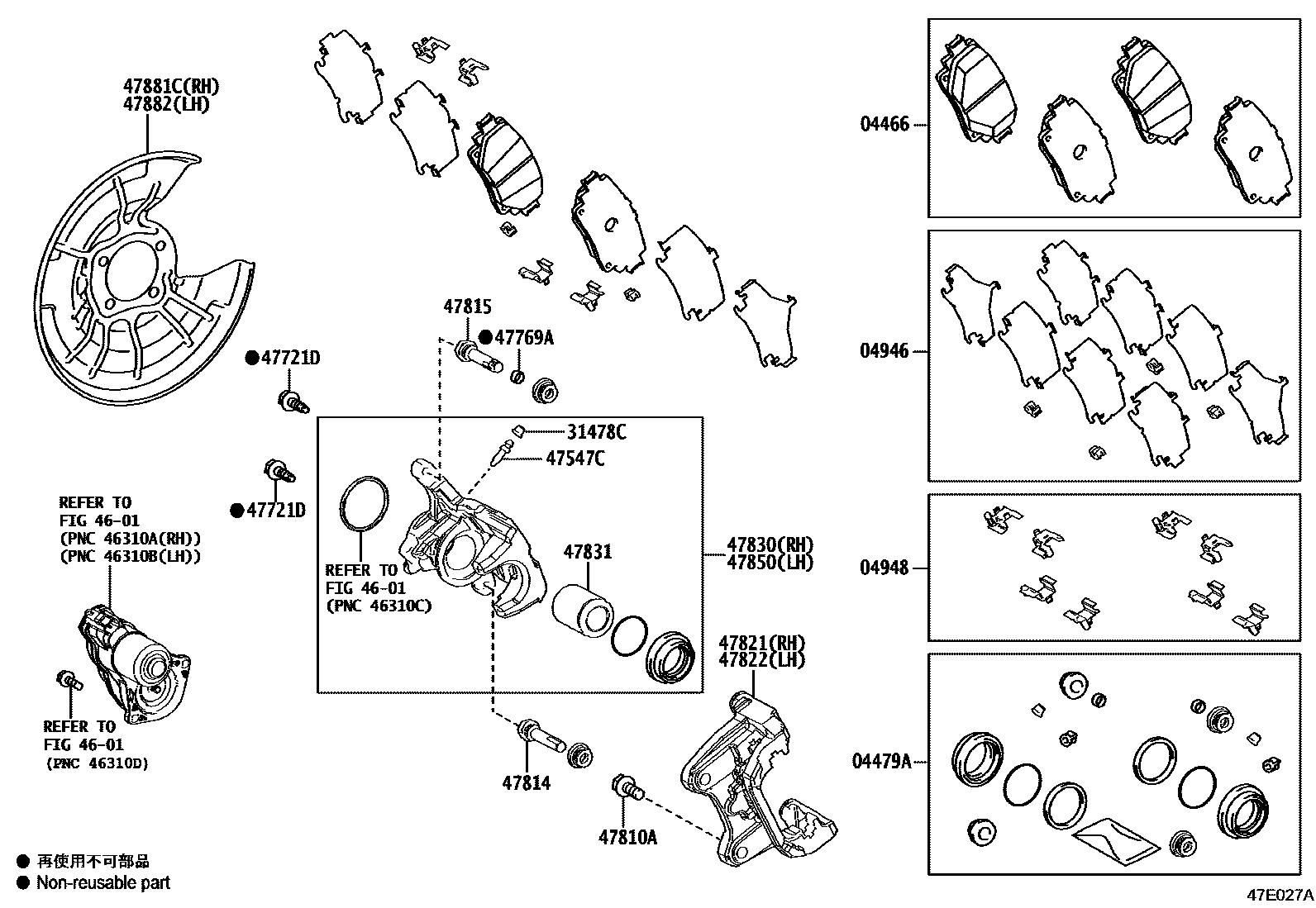

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E090iAXLH4#202211

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02490iAXLH4#202211

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02200iAXLH4#202211

04948FITTING KIT, DISC BRAKE, REAR

main04948-02170iAXLH4#202304

main04948-02171iAXLH40202211-202304

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iAXLH4#202211

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAXLH4#202211

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612×4iAXLH4#202211

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0P010×2iAXLH4#202211

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0397×4iAXLH4#202211

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180×2iAXLH4#202211

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180×2iAXLH4#202211

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-08040iAXLH4#202211

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-08040iAXLH4#202211

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-08040iAXLH4#202211

47831PISTON, REAR DISC BRAKE

main47831-0E120×2iAXLH40202211-202302

main47831-0E121×2iAXLH4#202302

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-08040iAXLH4#202211

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E040iAXLH4#202211

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E040iAXLH4#202211

19 parts on this diagram · 1 diagram in section
