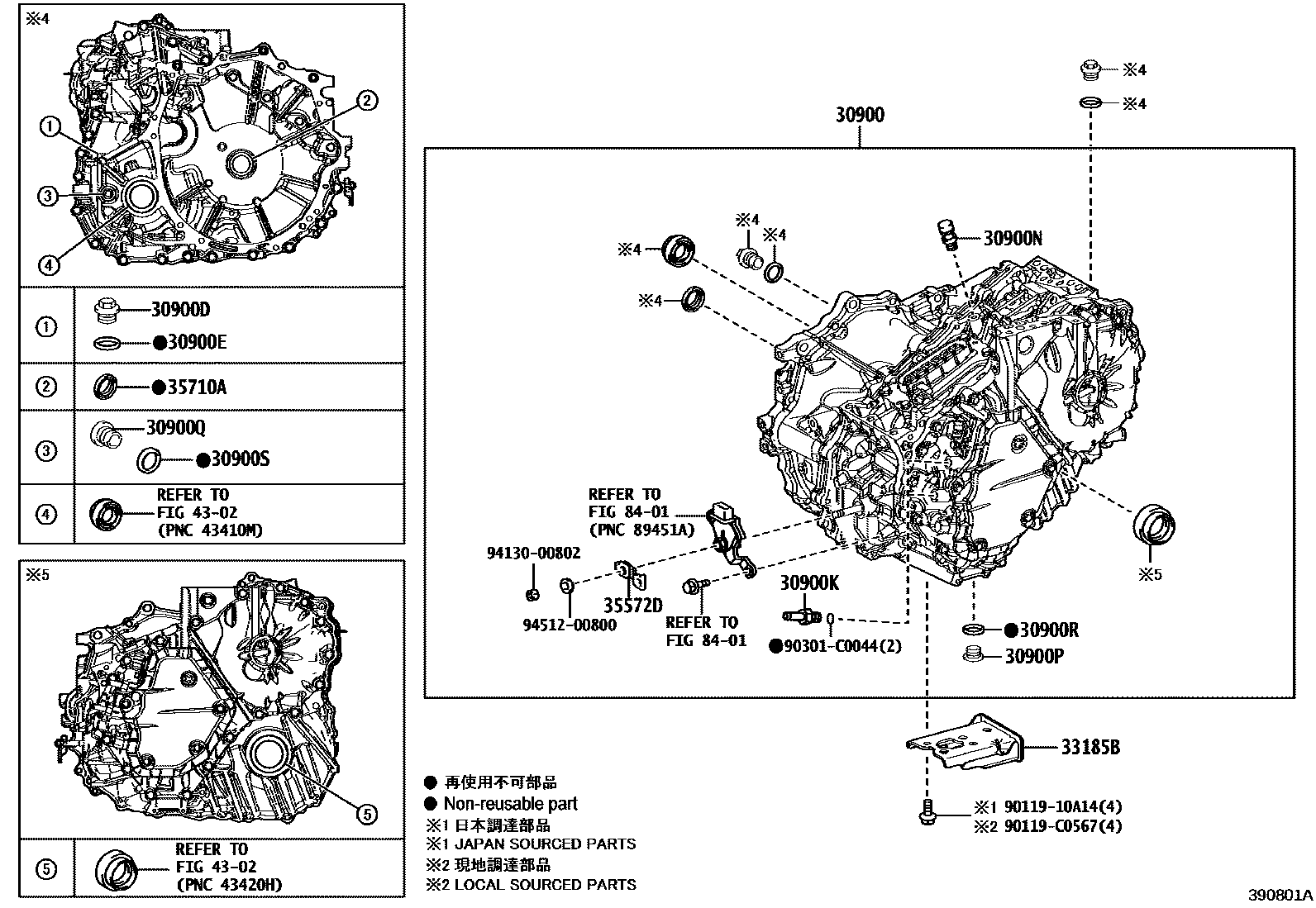

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1HYBRID VEHICLE TRANSAXLE ASSY0003 1RR TRACTION W/TRANSAXLE MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-0E011iAXLH4#202211-202411

main30900-0E012iAXLH4#202412

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXLH4#202211

(J)

main90341-C0022iAXLH4#202211

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXLH4#202211

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXLH4#202211

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAXLH4#202211

30900PPLUG, DRAIN(HEV)

main90341-18016iAXLH4#202211

30900QPLUG, FILLER(HEV)

main90341-18016iAXLH4#202211

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXLH40202211-202308

main90430-18008iAXLH4#202308

(J)

main90430-C0007iAXLH4#202308

(L)

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXLH40202211-202308

main90430-18008iAXLH4#202308

(J)

main90430-C0007iAXLH4#202308

(L)

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0R020iAXLH4#202211

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXLH4#202211

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-C0059iAXLH4#202211

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910A14

main90119-10A14

90119C0567

main90119-C0567

90301C0044

main90301-C0044

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 3 diagrams in section
