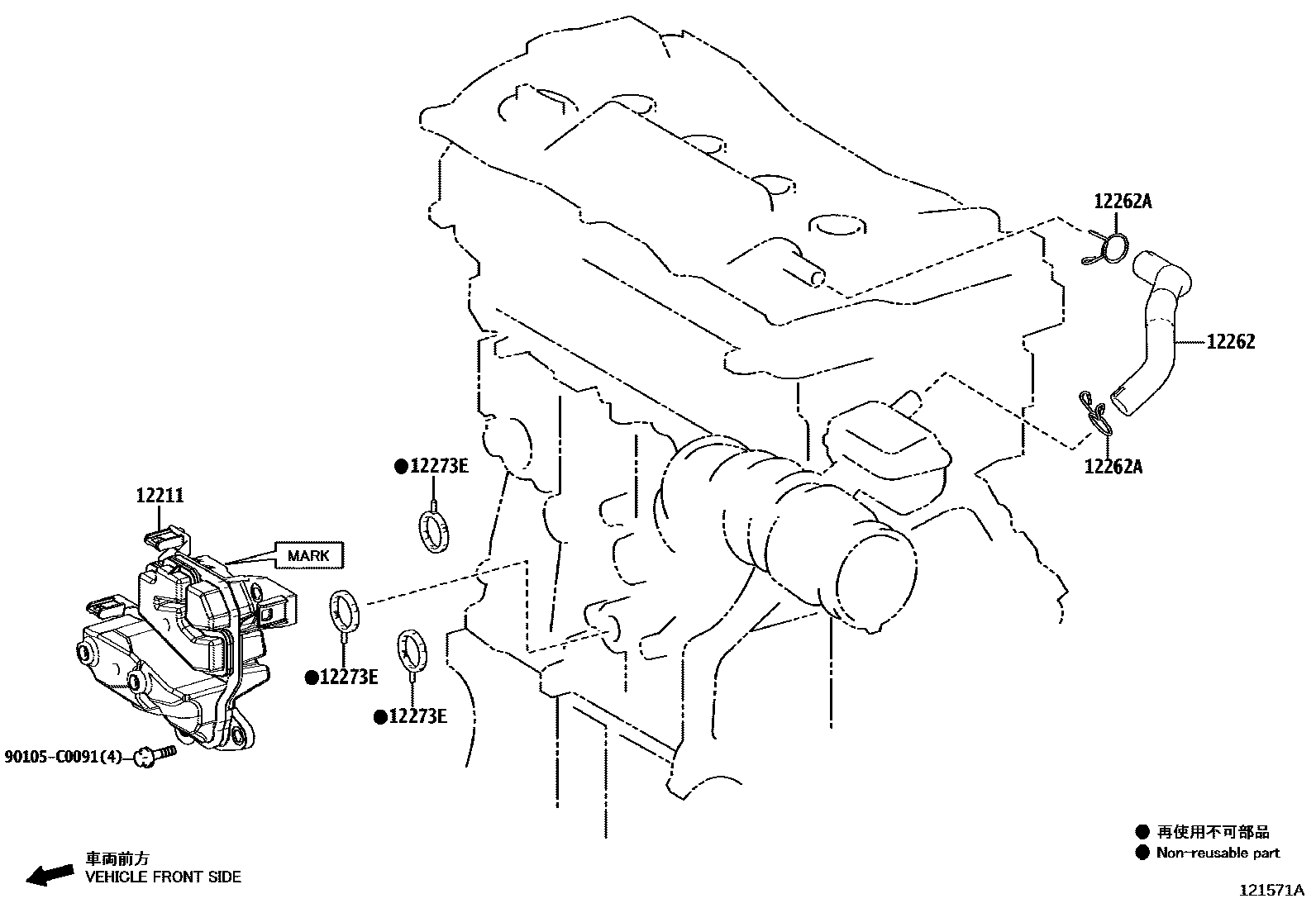

Toyota GRANVIA HYBRID — VENTILATION HOSE

12211CASE, VENTILATION, NO.1

12211-25011

12211-F0020

12262HOSE, VENTILATION, NO.2

90467-21004

12262-25080

12262ACLIP(FOR VENTILATION HOSE NO.2)

12273EGASKET(FOR VENTILATION CASE)

90105C0091

90105-C0091

5 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota GRANVIA HYBRID

This section contains 5 genuine Toyota parts for the VENTILATION HOSE system of the Toyota GRANVIA HYBRID. Key components include: CASE, VENTILATION, NO.1, HOSE, VENTILATION, NO.2, CLIP(FOR VENTILATION HOSE NO.2), GASKET(FOR VENTILATION CASE).
