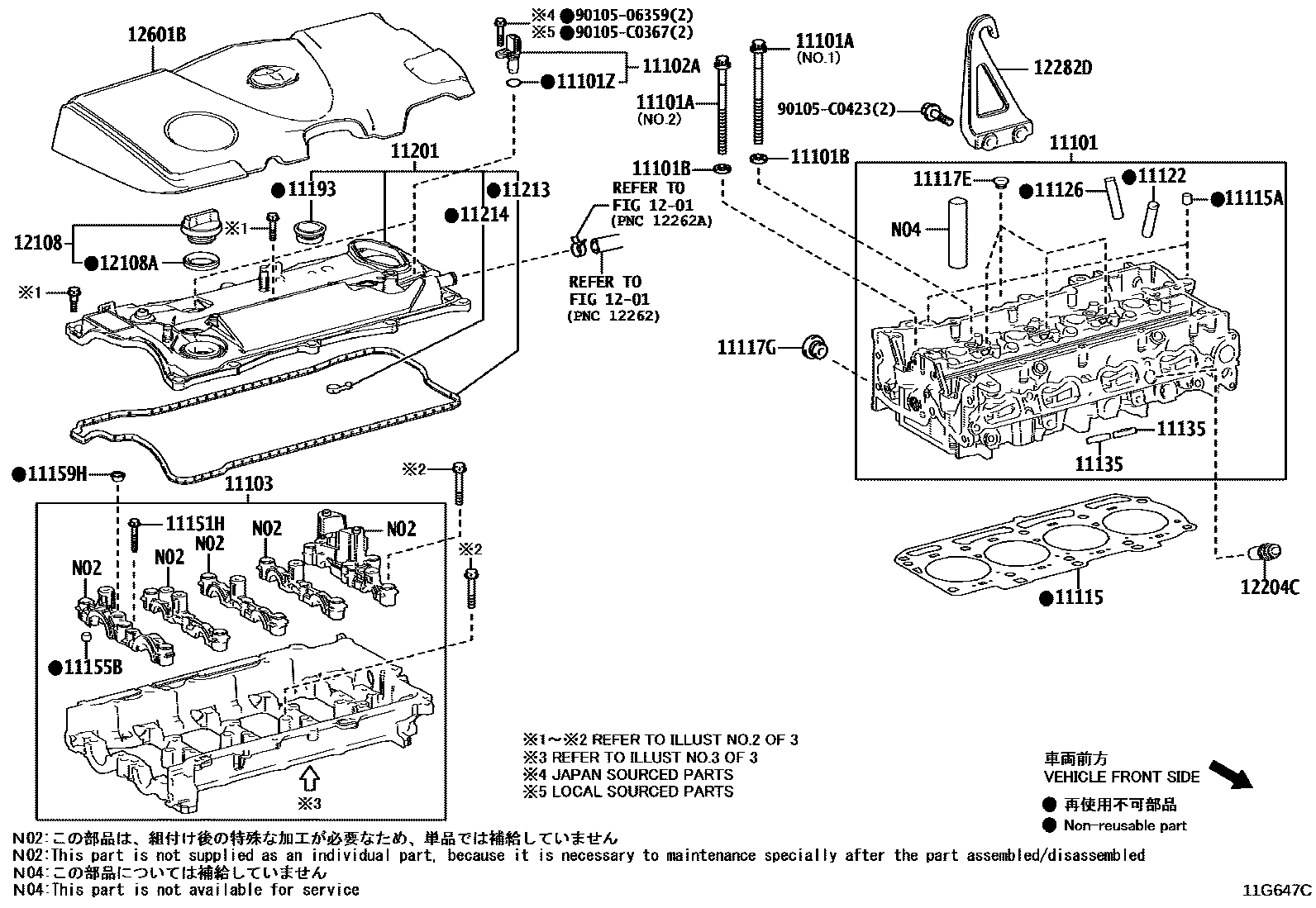

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
(L)
11101ABOLT(FOR CYLINDER HEAD SET)
(J),NO.1:REFER ILL.
NO.2:REFER ILLUST.
(L),NO.1:REFER ILL.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,(J)
STD,(L)
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(J)
(L)
11201COVER SUB-ASSY, CYLINDER HEAD
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
11213GASKET, CYLINDER HEAD COVER
(J)
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12204CVALVE SUB-ASSY, VENTILATION
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010506359
main90105-06359
90105C0367
main90105-C0367
90105C0423
main90105-C0423
29 parts on this diagram · 3 diagrams in section
