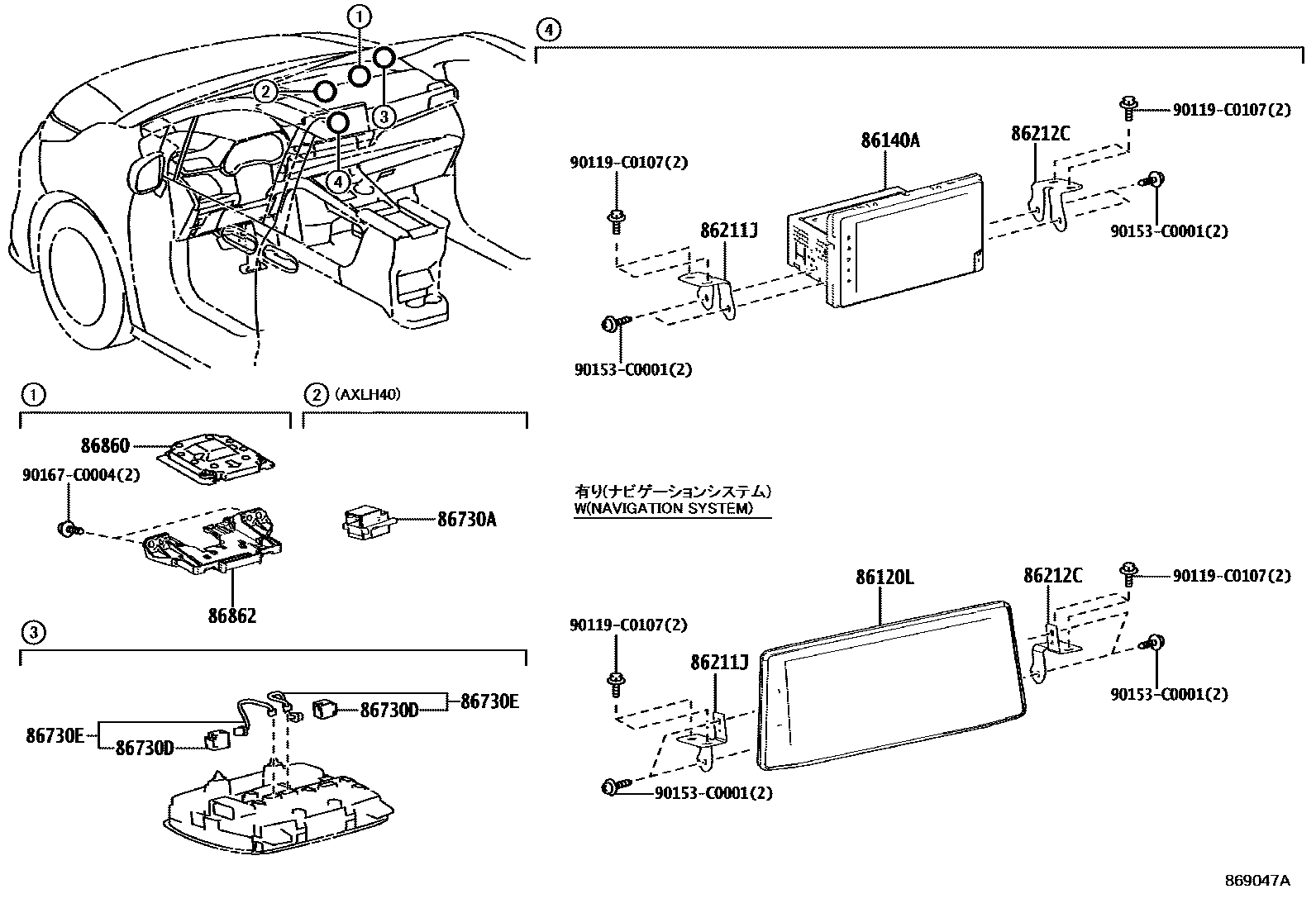

Toyota SIENNA HYBRID — NAVIGATION & FRONT MONITOR DISPLAY
86120LRECEIVER ASSY, NAVIGATION
86140ARECEIVER ASSY, RADIO & DISPLAY
86211JBRACKET, RADIO RECEIVER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86730AMICROPHONE ASSY, TELEPHONE
86730DMICROPHONE ASSY, TELEPHONE, NO.2
86730EMICROPHONE ASSY
90119C0107
90153C0001
90167C0004
12 parts on this diagram · 1 diagram in section
NAVIGATION & FRONT MONITOR DISPLAY for Toyota SIENNA HYBRID
This section contains 12 genuine Toyota parts for the NAVIGATION & FRONT MONITOR DISPLAY system of the Toyota SIENNA HYBRID. Key components include: RECEIVER ASSY, NAVIGATION, RECEIVER ASSY, RADIO & DISPLAY, BRACKET, RADIO RECEIVER, NO.1, BRACKET, RADIO RECEIVER, NO.2, MICROPHONE ASSY, TELEPHONE.
