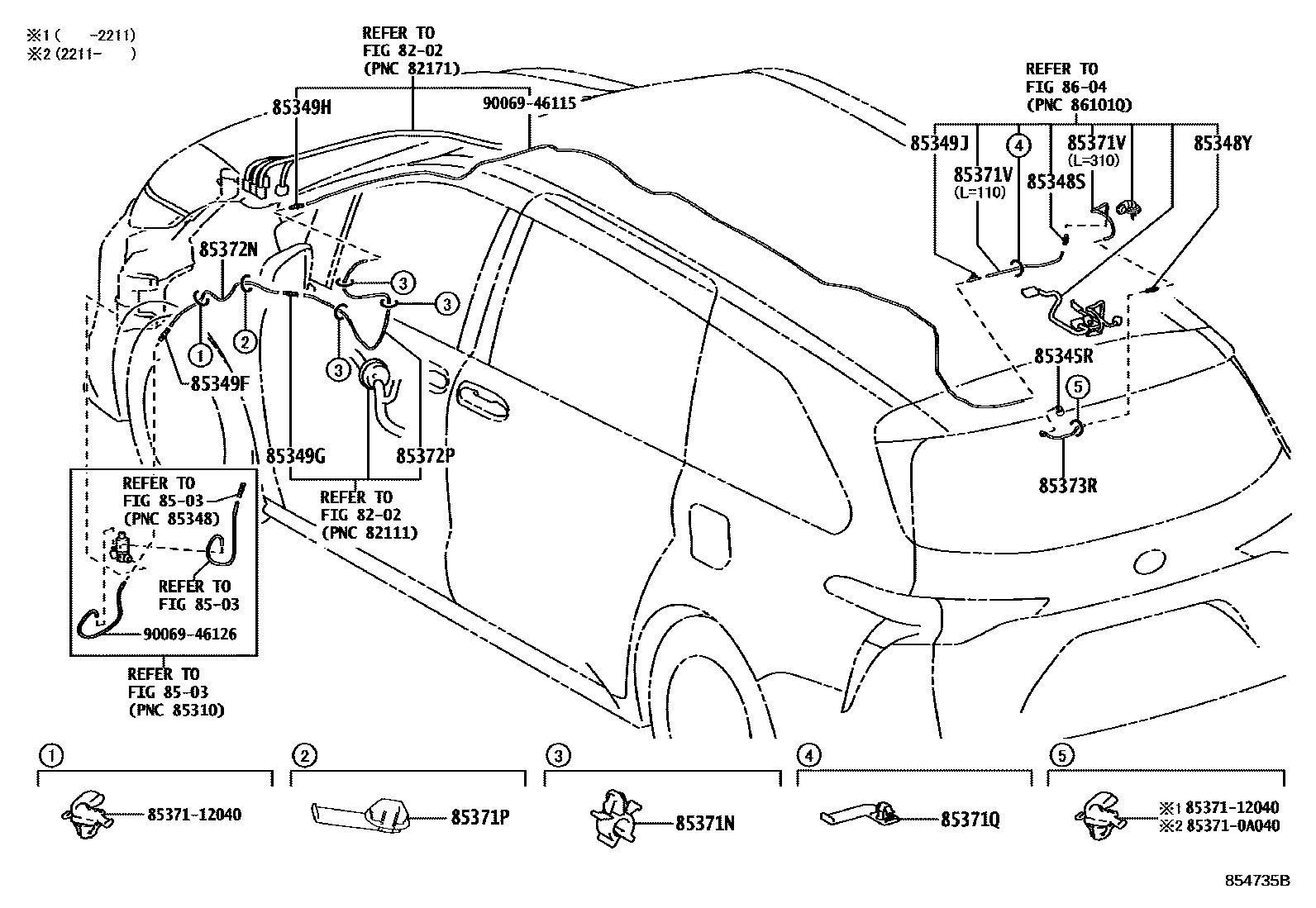

REAR WASHER

0001 1W/O REAR SUNSHADE 0002 1W/REAR SUNSHADE 0003 1W/REAR SUNSHADE

8202WIRING & CLAMP

→ Go to FIG 82-02

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-08030iAXLH4#202112

85348SJOINT, REAR WASHER ELBOW, NO.1

main85376-0R260iAXLH4#202112

85348YJOINT, REAR WASHER HOSE, NO.5

main85375-05050iAXLH4#202112

85349FJOINT, REAR WASHER HOSE, NO.1

main85375-05050iAXLH4#202112

85349GJOINT, REAR WASHER HOSE, NO.2

main85375-05050iAXLH4#202112

85349HJOINT, REAR WASHER HOSE, NO.3

main85375-05050iAXLH4#202112

85349JJOINT, REAR WASHER HOSE, NO.4

main85387-08220iAXLH4#202112

85371NCLAMP, REAR WASHER HOSE

main90469-07011×2iAXLH4#..E,L,U,X; AXLH40..P202112

85371PCLAMP, REAR WASHER HOSE, NO.2

main82711-52090iAXLH4#202112

85371QCLAMP, REAR WASHER HOSE, NO.3

main82711-2B780iAXLH4#202112

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90069-46116iAXLH4#202112

NO.1

main90069-46117iAXLH4#202112

NO.2

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46113iAXLH4#202112

L=750

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46114iAXLH4#202112

L=940

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46120iAXLH4#202112

L=280

8604ANTENNA

→ Go to FIG 86-04

853710A040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A040

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9006946115

main90069-46115

9006946126

main90069-46126

21 parts on this diagram · 3 diagrams in section
