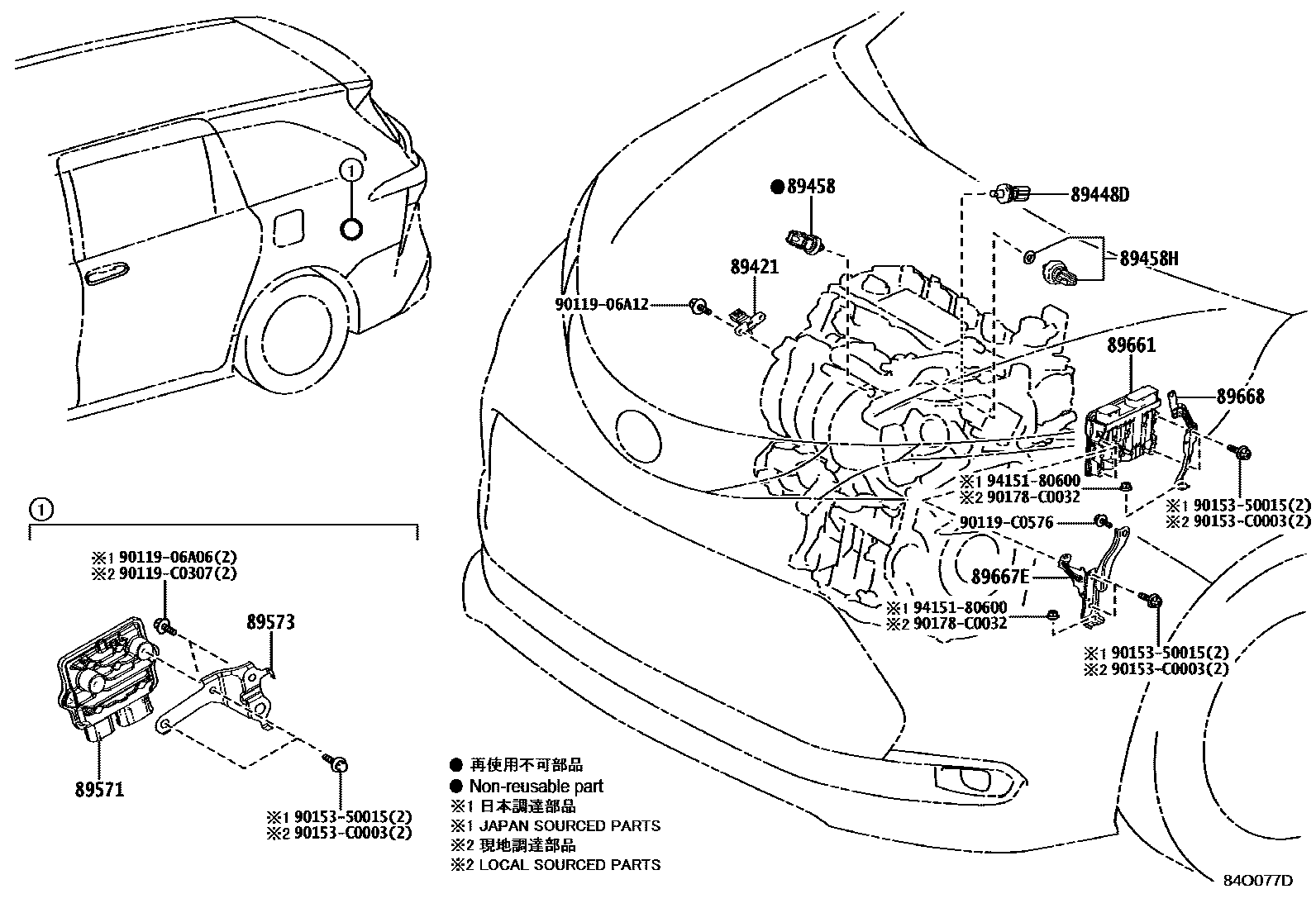

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXLH4#202112

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iAXLH4#202403

(L)

main89448-33010iAXLH4#202403

(J)

89458SENSOR, FUEL PRESSURE

main89458-0R010iAXLH4#202403

(L)

main89458-33030iAXLH40202112-202403

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iAXLH4#202403

(L)

main89458-33041iAXLH40202112-202206

main89458-33042iAXLH4#202403

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iAXLH4#202112

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-08010iAXLH4#202112

89661COMPUTER, ENGINE CONTROL

main89661-08630iAXLH40202303-202404

DENSO,*614

main89661-08690iAXLH40202112-202303

DENSO,*614

main89661-08770iAXLH4#202404

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-08110iAXLH40202112-202401

main89667-08111iAXLH4#202402

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-08110iAXLH4#202112

9011906A06

main90119-06A06

9011906A12

main90119-06A12

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
