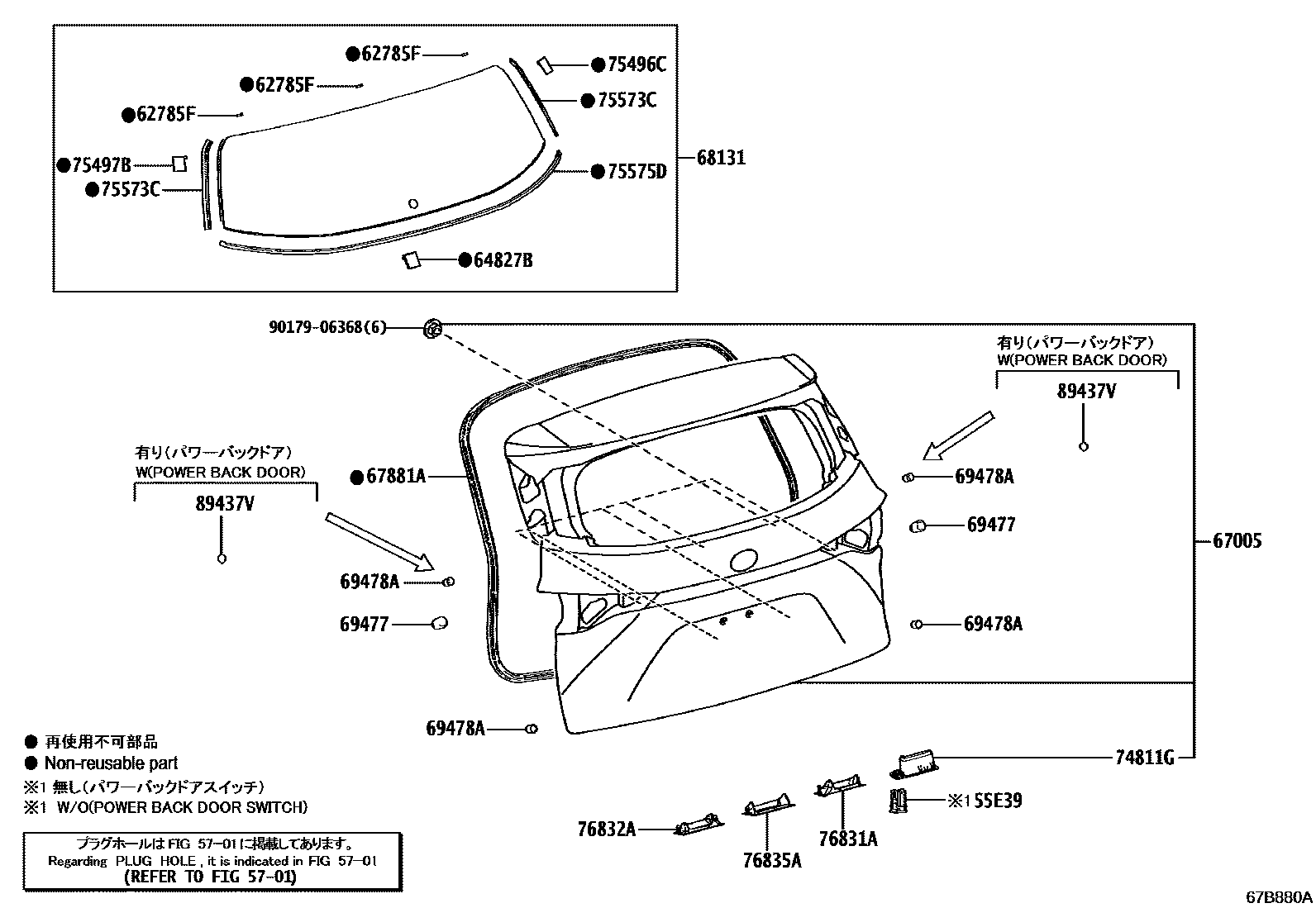

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

55E39COVER, SPARE SWITCH HOLE

main55539-06120iAXLH40..E202112

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iAXLH4#202112

64827BCLIP, BACK WINDOW GLASS, RH

main64827-08020iAXLH4#202112

67005PANEL SUB-ASSY, BACK DOOR

main67005-08200-A0iAXLH4#202112-202509

PLATINUM WHITE PEARL MC.,089

main67005-08200-B0iAXLH4#202112-202509

METAL STREAM ME,1K0

main67005-08200-C0iAXLH4#202112-202509

BLACK MC.,209

main67005-08200-E0iAXLH4#202112-202509

STEEL BLONDE ME.,4X1

main67005-08200-G0iAXLH4#202112-202509

GREEN M.M.,6X5

main67005-08200-J0iAXLH4#202112-202509

DK. BLUE MC.,8X8

67881AWEATHERSTRIP, BACK DOOR

main67881-08050iAXLH4#202112

68131GLASS, BACK DOOR

main68105-08110iAXLH40..L,P,U202112-202404

main68105-08130iAXLH45;AXLH40..E,X202112

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-0E050iAXLH4#202112

69478ACUSHION, BACK DOOR LOWER STOPPER

main69478-76010iAXLH40..E202112

LOWER

74811GHANDLE, DOOR PULL

main74811-08020iAXLH4#202112

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-08020iAXLH4#202112

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-08020iAXLH4#202112

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-08040iAXLH4#202112

75575DMOULDING, BACK WINDOW, LOWER

main75575-08030iAXLH4#202112

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-08020iAXLH4#202112

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-08020iAXLH4#202112

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-08020iAXLH4#202112

89437VCOVER, SENSOR

main89437-0E100iAXLH4#..L,P,U,X202112

9017906368

main90179-06368

19 parts on this diagram · 2 diagrams in section
