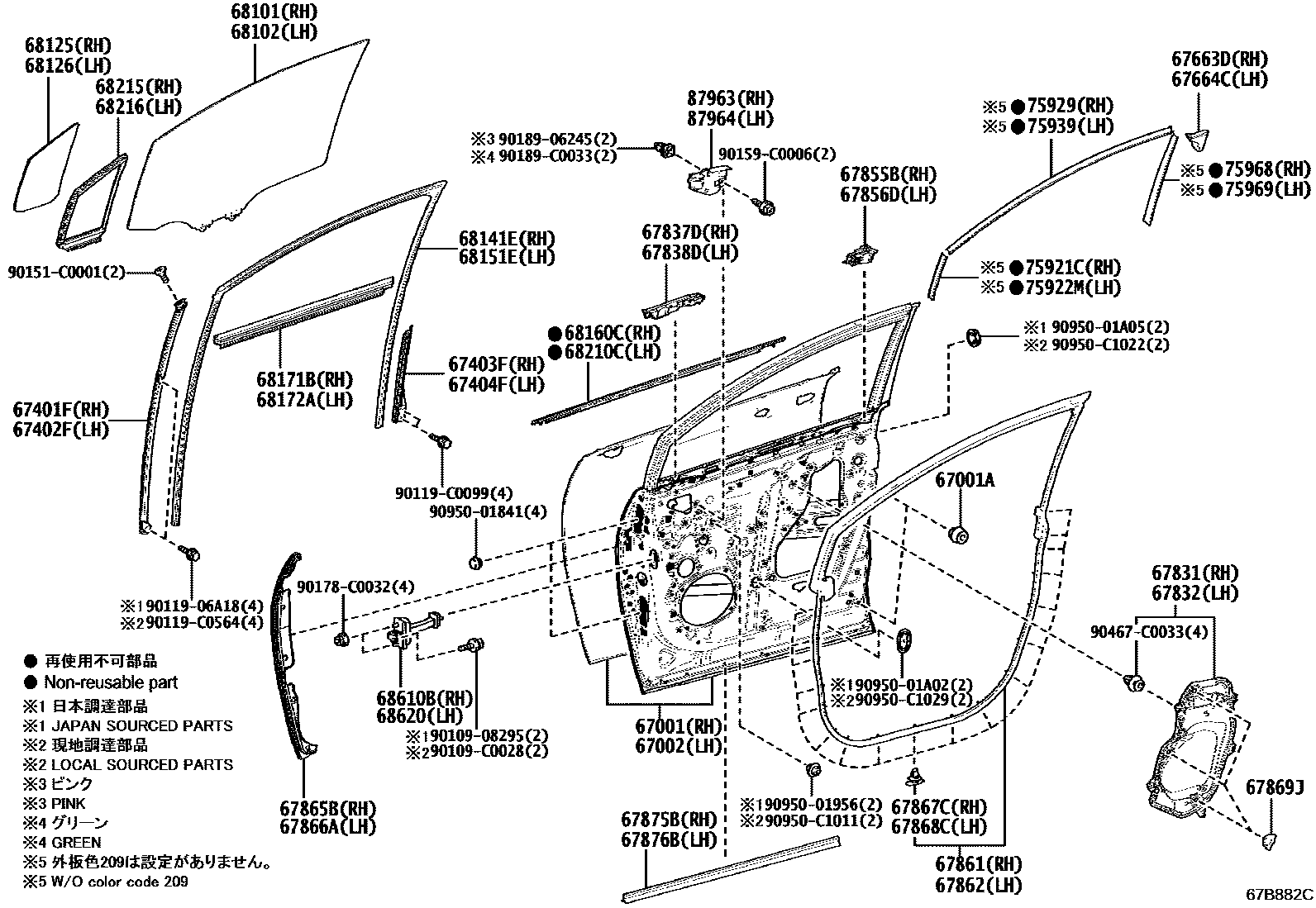

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-08090iAXLH4#202112

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×4iAXLH4#202112

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-08090iAXLH4#202112

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-08040iAXLH4#202112

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-08040iAXLH4#202112

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-08040iAXLH4#202112

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-08040iAXLH4#202112

67663DGARNISH, DOOR FRAME, RH

main67663-08030iAXLH4#202112

67664CGARNISH, DOOR FRAME, LH

main67664-08030iAXLH4#202112

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-08060iAXLH4#202112

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-08060iAXLH4#202112

67837DSEAL, FRONT DOOR VENT, RH

main67837-08040iAXLH4#202112

67838DSEAL, FRONT DOOR VENT, LH

main67838-08030iAXLH4#202112

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-08040iAXLH4#202112

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-08040iAXLH4#202112

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-08040iAXLH4#202112

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-08040iAXLH4#202112

67865BWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-08030iAXLH4#202112

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-08030iAXLH4#202112

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×18iAXLH4#202112

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×18iAXLH4#202112

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iAXLH4#202112

(J)

main67869-F4030×6iAXLH4#202112

(L)

67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH

main67875-08020iAXLH4#202112

67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH

main67875-08020iAXLH4#202112

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-08090iAXLH40..E202112

main68101-08100iAXLH40..L,X202404

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-08090iAXLH40..E202112

main68102-08100iAXLH45;AXLH40..P,U202112

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-08020iAXLH4#202112

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-08020iAXLH4#202112

68141ERUN, FRONT DOOR GLASS, RH

main68141-08040iAXLH4#202112

68151ERUN, FRONT DOOR GLASS, LH

main68151-08040iAXLH4#202112

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-08040iAXLH4#202112

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-08040iAXLH4#202112

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-08040iAXLH4#202112

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-08040iAXLH4#202112

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-08020iAXLH4#202112

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-08020iAXLH4#202112

68610BCHECK ASSY, FRONT DOOR, RH

main68610-08040iAXLH4#202112

68620CHECK ASSY, FRONT DOOR, LH

main68610-08040iAXLH4#202112

75921CTAPE, BLACK OUT, NO.1 RH

main75921-08040iAXLH40202112-202303

75922MTAPE, BLACK OUT, NO.1 LH

main75922-08040iAXLH40202112-202303

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-08030iAXLH40202112-202303

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-08030iAXLH40202112-202303

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-08030iAXLH40202112-202303

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-08030iAXLH40202112-202303

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-08020iAXLH4#..E,P,U,X202112-202508

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-08020iAXLH4#..E,P,U,X202112-202508

9010908295

main90109-08295

90109C0028

main90109-C0028

9011906A18

main90119-06A18

90119C0099

main90119-C0099

90119C0564

main90119-C0564

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906245

main90189-06245

90189C0033

main90189-C0033

90467C0033

main90467-C0033

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

90950C1011

main90950-C1011

90950C1022

main90950-C1022

90950C1029

main90950-C1029

64 parts on this diagram · 2 diagrams in section
