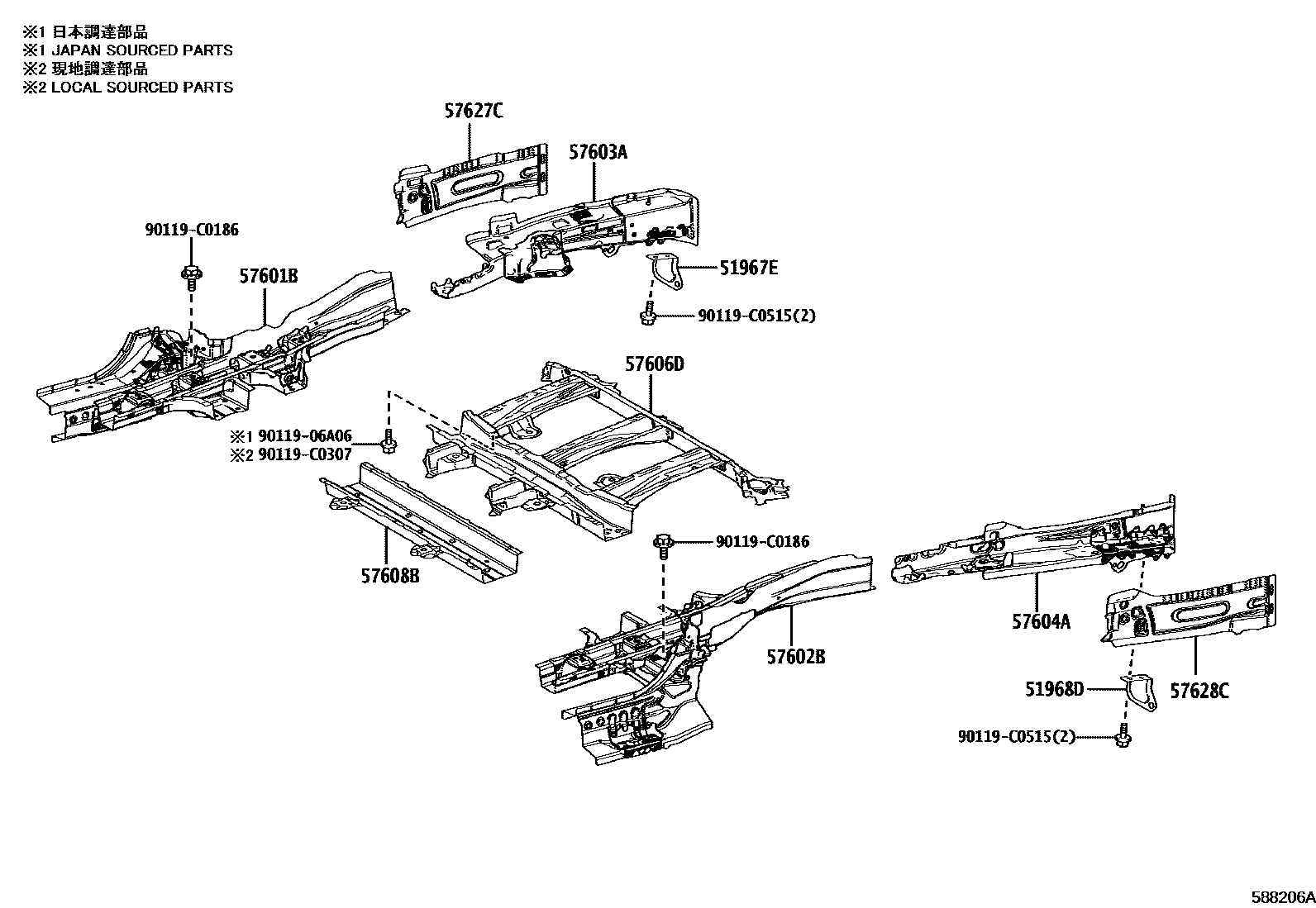

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR PANEL 0003 1LOWER BACK PANEL

51967EHOOK, TRANSPORT, REAR RH

main51967-08020iAXLH4#202112

51968DHOOK, TRANSPORT, REAR LH

main51968-08010iAXLH4#202112

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-08050iAXLH4#202112

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-08070iAXLH4#202112

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-08040iAXLH4#202112

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-08040iAXLH4#202112

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-08080iAXLH40202112-202403

main57606-08081iAXLH4#202404

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-08050iAXLH4#202112

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-08030iAXLH4#202112

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-08040iAXLH4#202112

9011906A06

main90119-06A06

90119C0186

main90119-C0186

90119C0307

main90119-C0307

90119C0515

main90119-C0515

14 parts on this diagram · 3 diagrams in section
