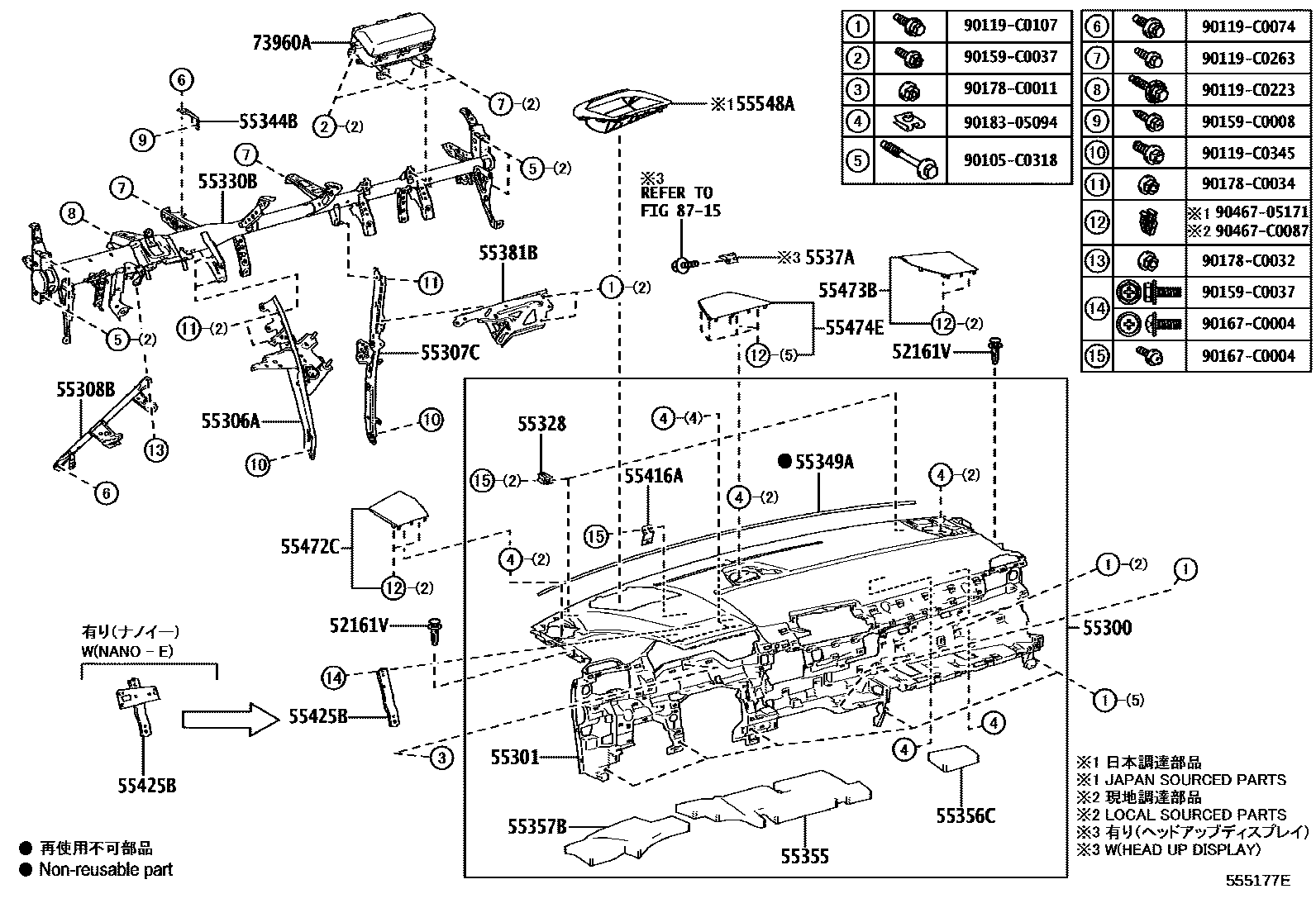

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
55300PANEL ASSY, INSTRUMENT, UPPER
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,41
NOBLE BROWN,TRIM40
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM0#,2#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#,41
NOBLE BROWN,TRIM40
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55344BBRACKET, AIR CONDITIONING MOUNTING, NO.1
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
5537ABRACKET, INSTRUMENT PANEL GUIDE, NO.3
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55416ARETAINER, METER HOOD, NO.1
55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,1#,2#,41
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,40,41
BLACK,TRIM0#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#
NOBLE BROWN,TRIM40
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,41
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,40,41
BLACK,TRIM0#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM40
55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,41
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,40,41
BLACK,TRIM1#
BLACK,TRIM0#,2#,4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM40
55548ACOVER, INSTRUMENT PANEL HOLE
BLACK,TRIM0#,1#,2#,41
NOBLE BROWN,TRIM40
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8715
90105C0318
main90105-C0318
90119C0074
main90119-C0074
90119C0107
main90119-C0107
90119C0223
main90119-C0223
90119C0263
main90119-C0263
90119C0345
main90119-C0345
90159C0008
main90159-C0008
90159C0037
main90159-C0037
90167C0004
main90167-C0004
90178C0011
main90178-C0011
90178C0032
main90178-C0032
90178C0034
main90178-C0034
9018305094
main90183-05094
9046705171
main90467-05171
90467C0087
main90467-C0087
38 parts on this diagram · 4 diagrams in section
