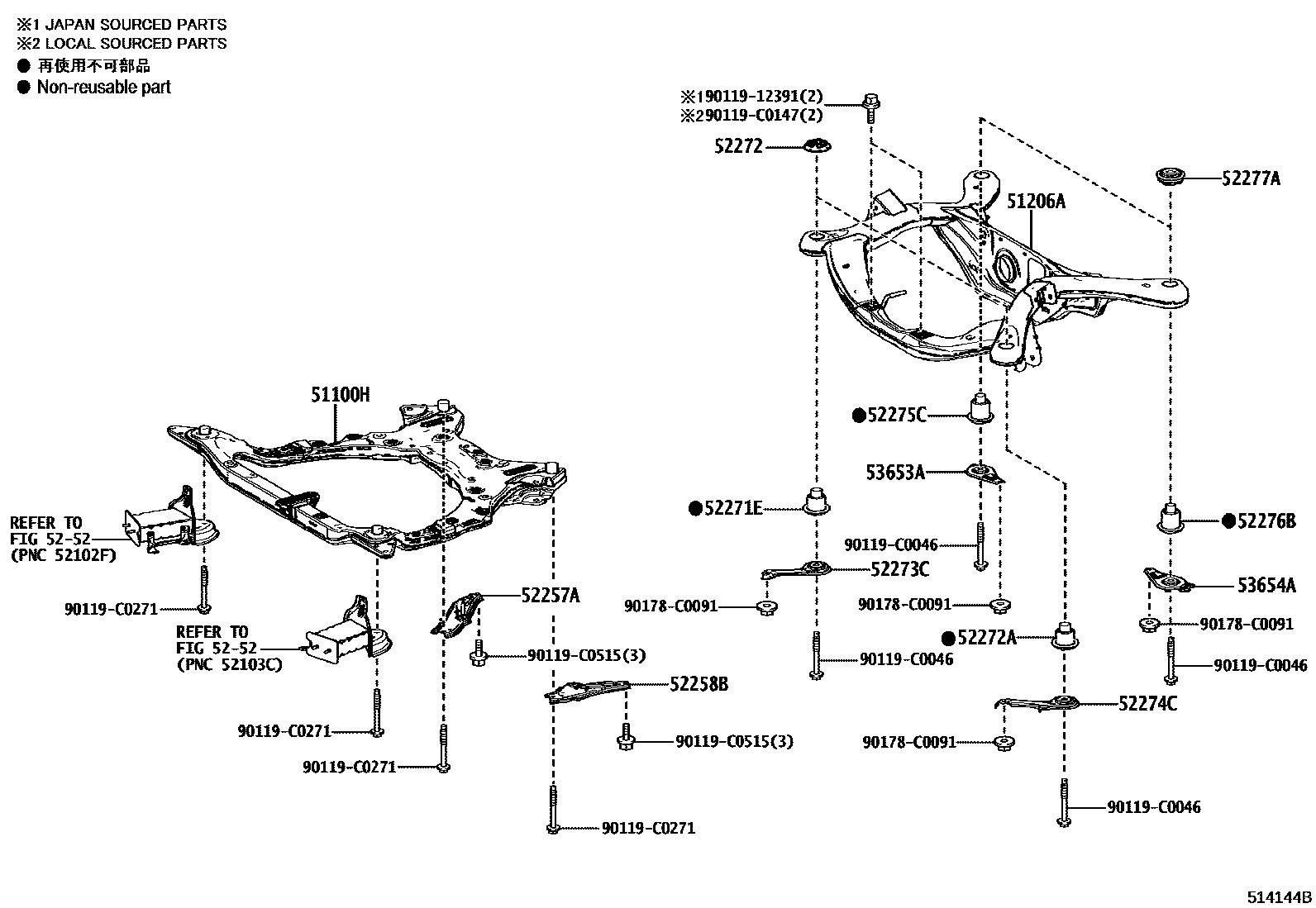

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-08110iAXLH4#202302

main51100-08120iAXLH40202112-202302

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-08020iAXLH4#202112

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-08060iAXLH4#202112

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-08060iAXLH4#202112

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E080iAXLH4#202112

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E080×2iAXLH4#202112

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E080iAXLH4#202112

52273CSTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-08030iAXLH4#202112

52274CSTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-08030iAXLH4#202112

52275CCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR RH

main52275-0E090iAXLH4#202112

52276BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52276-0E040iAXLH4#202112

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E090×2iAXLH4#202112

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-08030iAXLH4#202112

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-08030iAXLH4#202112

9011912391

main90119-12391

90119C0046

main90119-C0046

90119C0147

main90119-C0147

90119C0271

main90119-C0271

90119C0515

main90119-C0515

90178C0091

main90178-C0091

21 parts on this diagram · 2 diagrams in section
