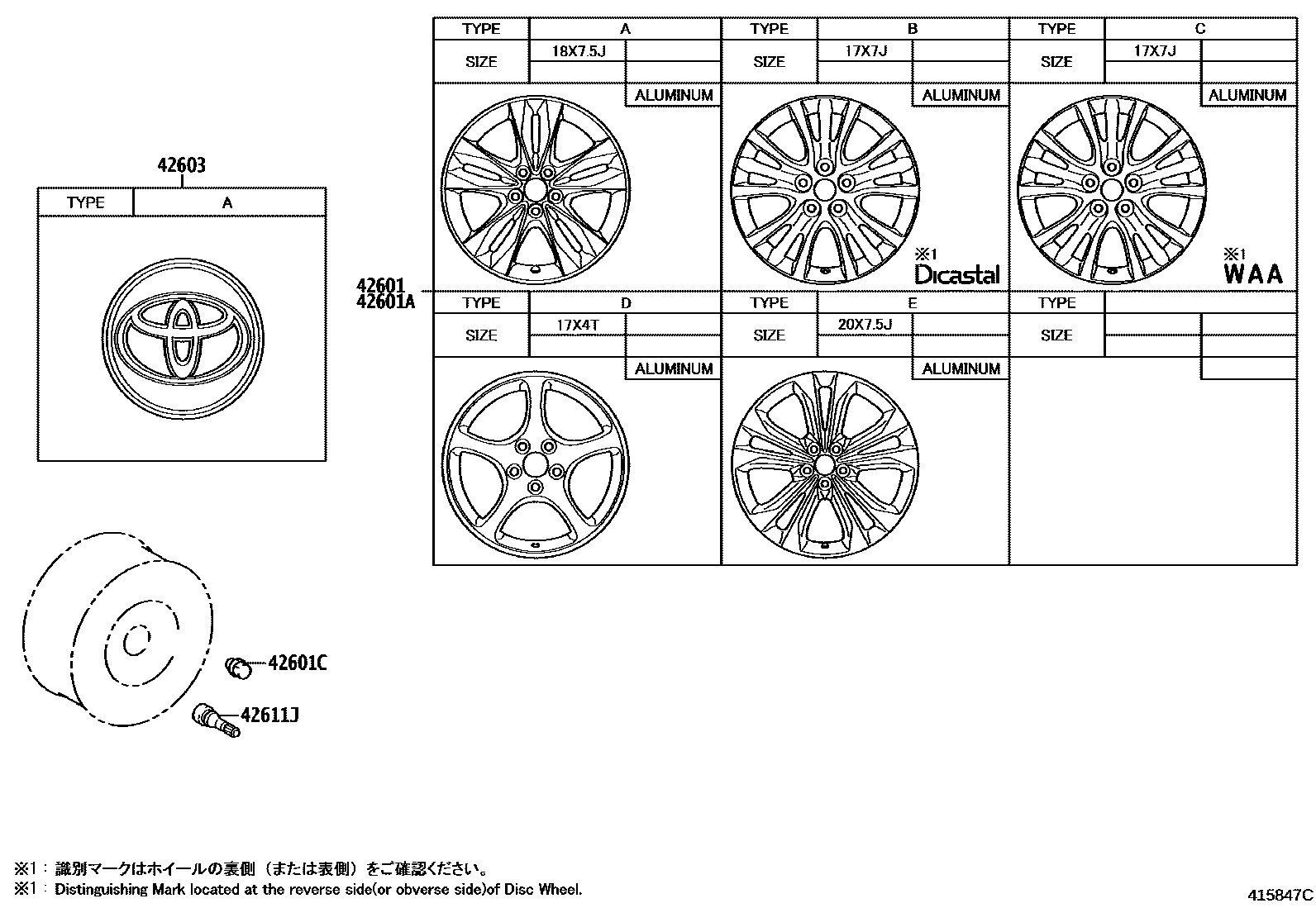

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main4261A-08040×4supersedes 4261A-08060i202112

18X7.5J, #,TYPE A:REFER ILLUST.

main4261A-08050×4supersedes 4261A-08060i202303-202404

17X7J, #,TIRE & DISC WHEEL-235/65R17,7.0J,ALUMI,TYPE B:REFER ILLUST.

main4261A-08060×4i202303-202404

17X7J, #,TIRE & DISC WHEEL-235/65R17,7.0J,ALUMI,TYPE C:REFER ILLUST.

main4261A-08080×4i202209-202303

20X7.5J, #,TIRE & DISC WHEEL-235/50R20,7.5J,ALUMI,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20i202112

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020×4i202112

*ALU,TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

(J)

(L)

5 parts on this diagram · 3 diagrams in section
