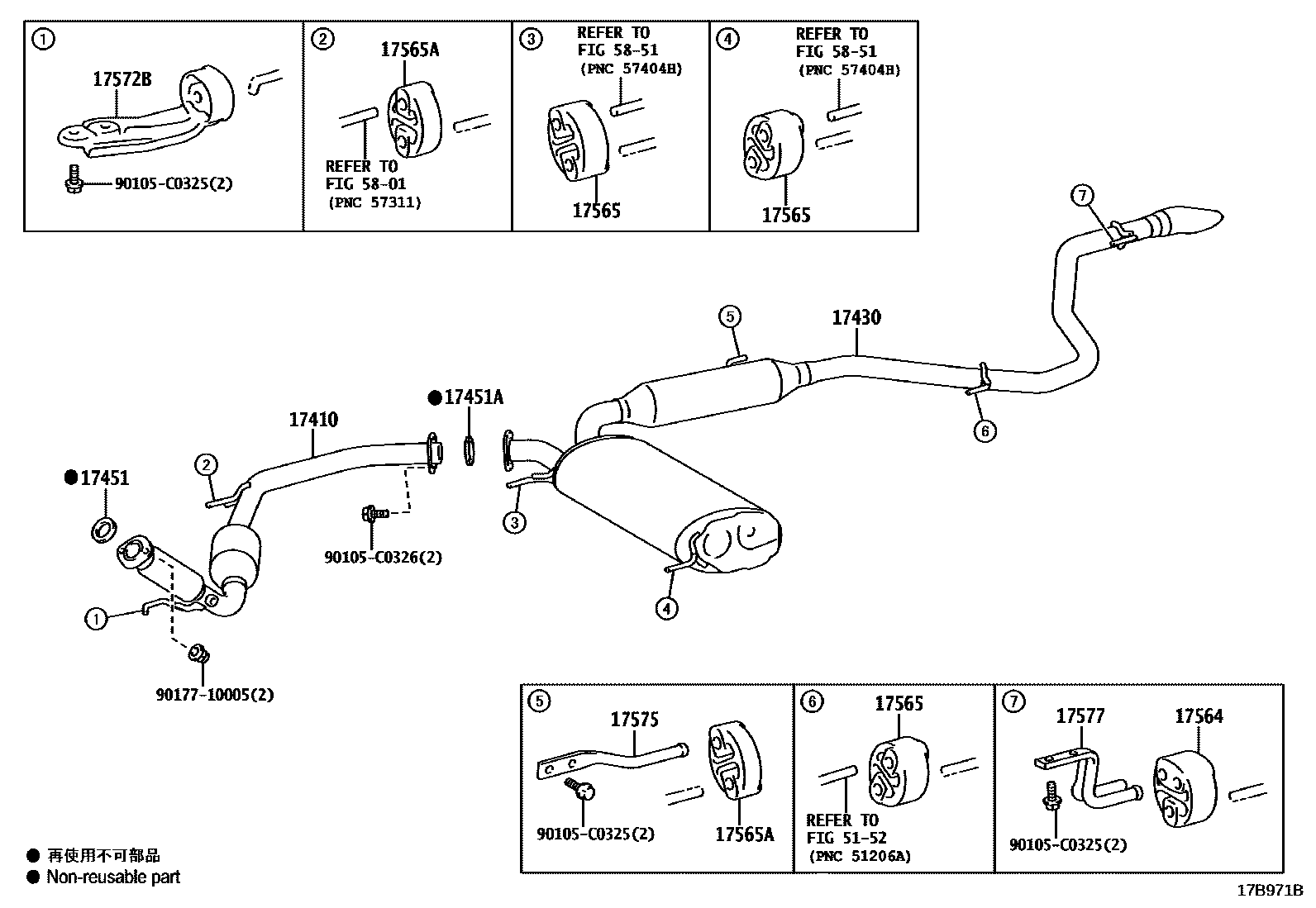

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
5152SUSPENSION CROSSMEMBER & UNDER COVER
5801FLOOR PAN & LOWER BACK PANEL
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
90105C0325
main90105-C0325
90105C0326
main90105-C0326
9017710005
main90177-10005
16 parts on this diagram · 1 diagram in section
