STANDARD TOOL

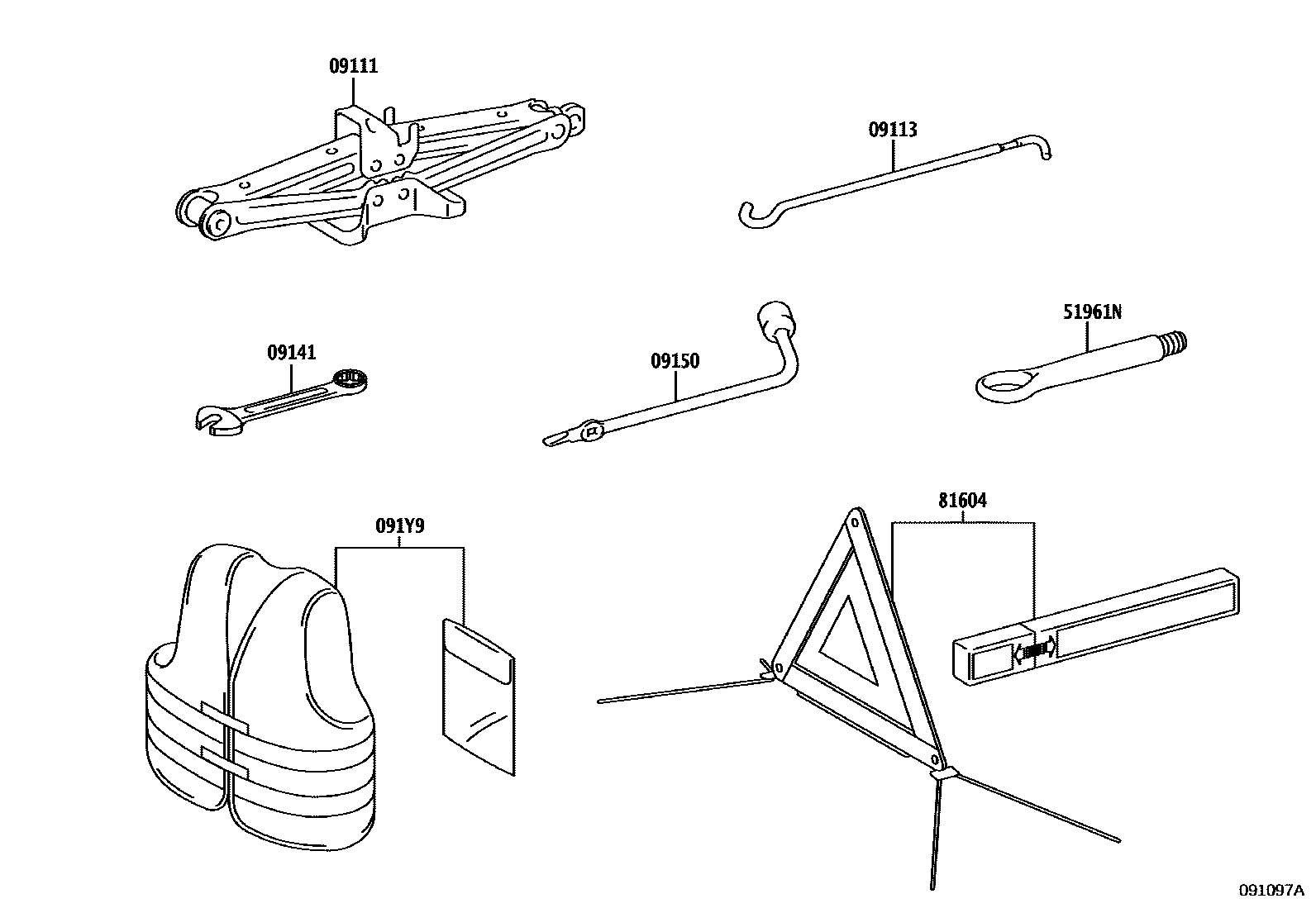

Parts diagram

09111JACK SUB-ASSY

main09111-08030i202112

09113HANDLE, JACK

main09113-0R030i202112

09141SPANNER

main09100-D1040i202112

SIDE LIFT UP SEAT

09150WRENCH, HUB NUT BOX

main09150-0R020i202112

091Y9JACKET, W/REFLECTOR

main091Y9-02010i202112

51961NHOOK, TRANSPORT

main51961-08010i202112

81604REFLECTOR SET, TRIANGLE

main81604-0E010i202112

7 parts on this diagram · 1 diagram in section
