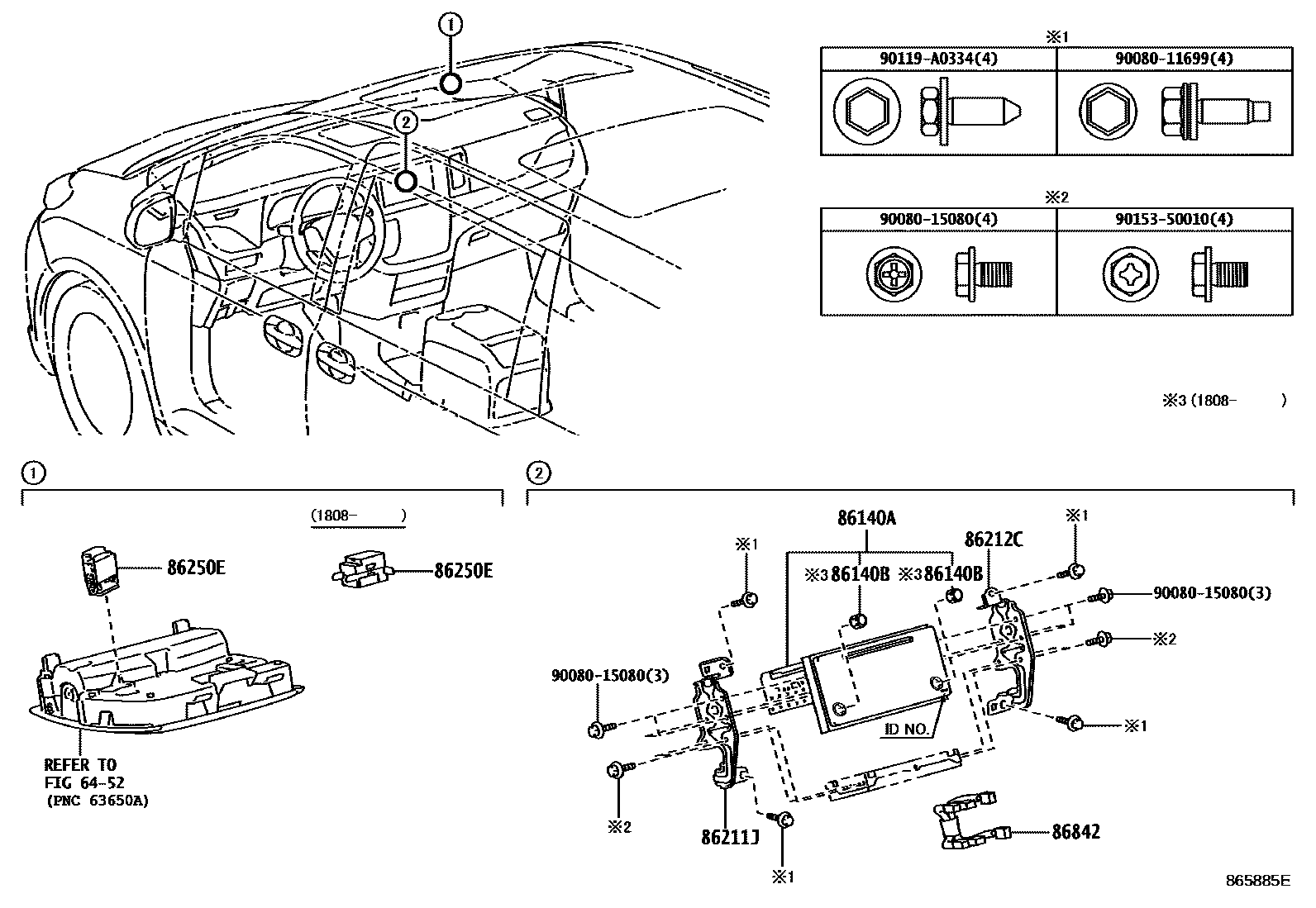

NAVIGATION & FRONT MONITOR DISPLAY

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-08030iGSL3#201608-201711

FUJITSU TEN,ID100400

main86140-08150iGSL3#201711-201808

PIONEER

main86140-08151iGSL3#201808-202009

PIONEER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22128×2iGSL3#201711-202009

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-08050iGSL3#201409-201608

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-08050iGSL3#201608-201711

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52050iGSL3#201409-201608

main86730-48100iGSL3#201808-202009

86842WIRE, NAVIGATION, NO.1

main86842-06010iGSL3#201808-202009

main86842-33150iGSL3#201711-201808

MAP DISC(DOP)-WITH(KOREA EXT-BOX)

main86842-42010iGSL3#201608-201711

MAP DISC(DOP)-WITH(KOREA EXT-BOX)

9008011699

main90080-11699

9008015080

main90080-15080

90119A0334

main90119-A0334

9015350010

main90153-50010

11 parts on this diagram · 1 diagram in section
