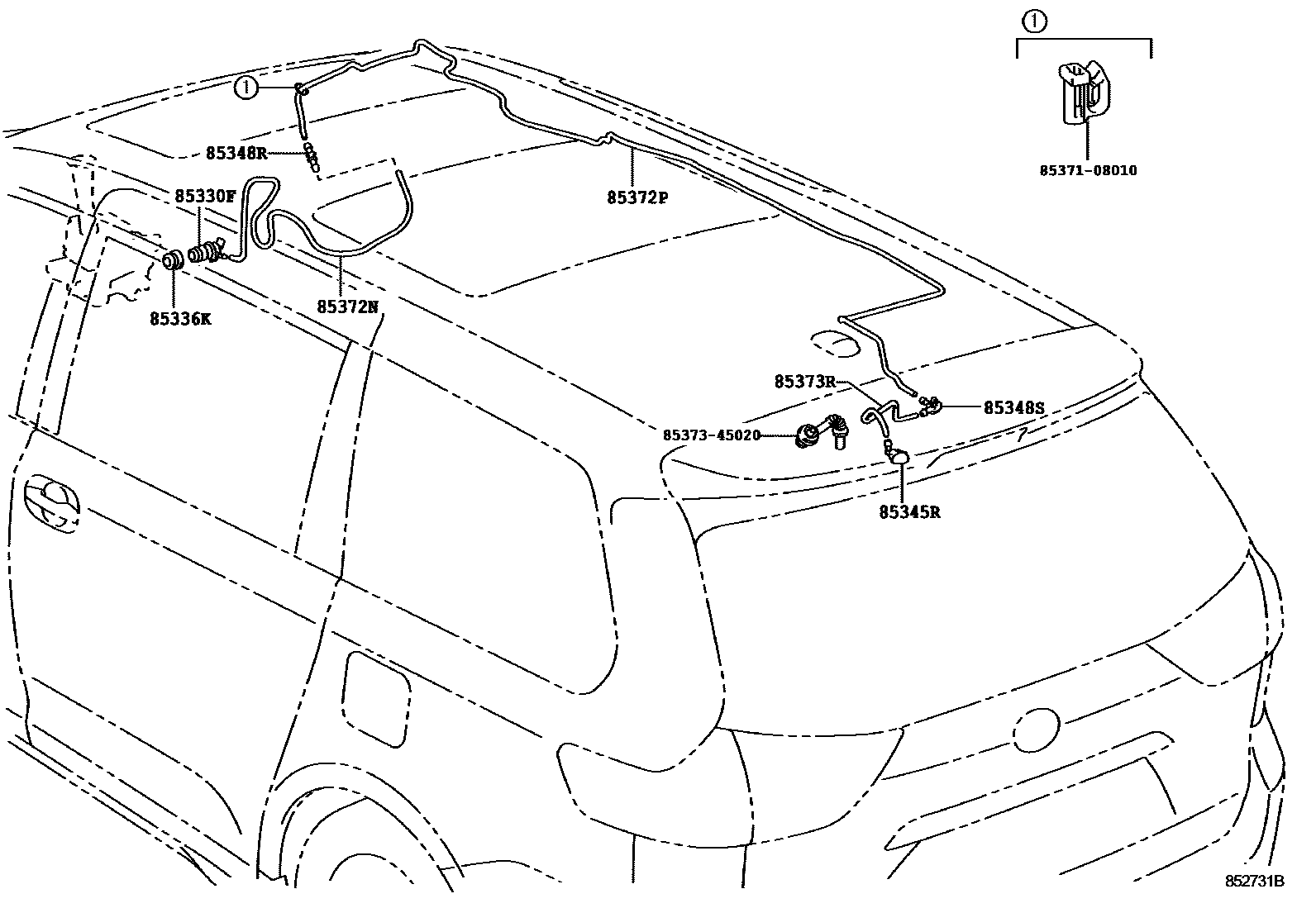

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85340-AE010iGSL3#201109-201409

85336KPROTECTOR, WASHER JAR

main85336-60300iASL30201109-201308

85345RNOZZLE, REAR WASHER

main85391-08010iASL30201109-201308

85348RJOINT, REAR WASHER HOSE, NO.1

main85384-08010iASL30201109-201308

85348SJOINT, REAR WASHER ELBOW, NO.1

main85384-08020iGSL3#201109-201409

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33128iGSL3#201109-201409

L=1516

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33123iGSL35201608-201711

L=4215

main90068-33124iGSL3#201109-201409

L=4390

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33131iASL30201109-201308

L=275

8537108010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-08010

8537345020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-45020

10 parts on this diagram · 1 diagram in section
