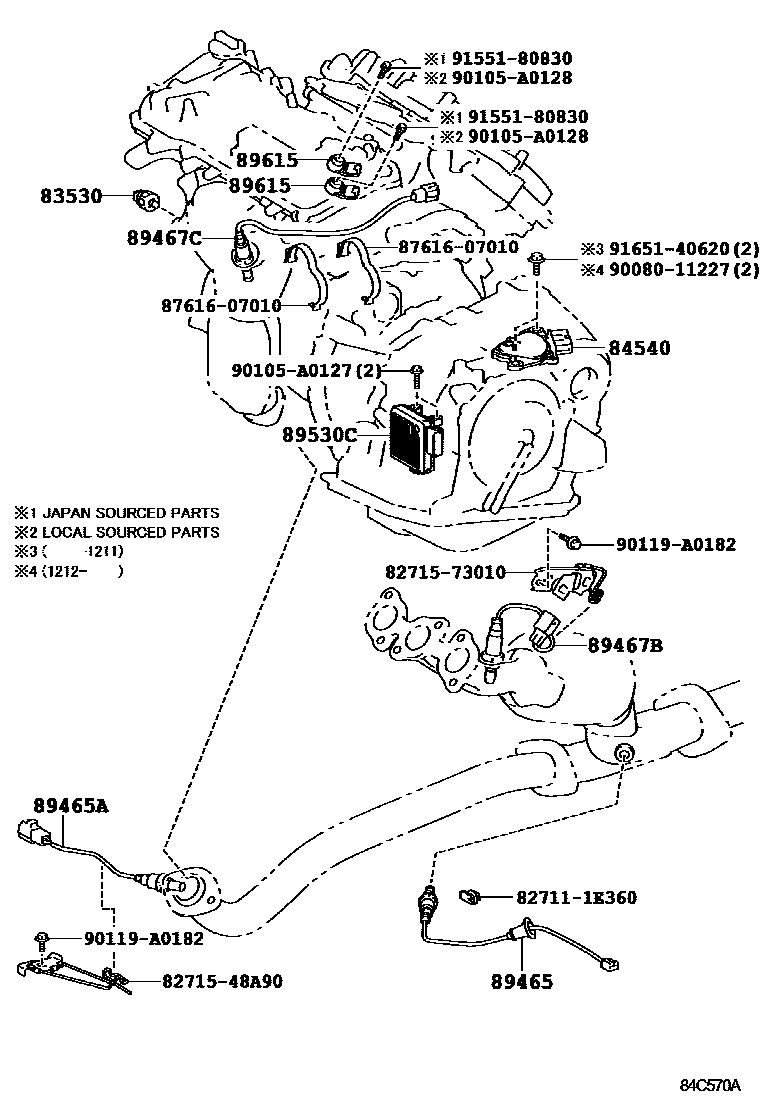

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASL30201109-202009

(L)

main83530-0E010iGSL3#201409-201608

main83530-28020iASL30201109-202009

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iGSL3#201109-201608

main84540-33010iGSL35201109-201409

main84540-33020iGSL3#201608-202009

sub84540-33021

sub35572-48051

89465SENSOR, OXYGEN

main89465-08060iGSL30201109-201409

main89465-08100iGSL35201308-201409

main89465-08110iASL30201109-201308

main89465-08130iGSL30201409-201608

main89465-08140iGSL35201409-201608

main89465-08160iGSL3#201608-202009

89465ASENSOR, OXYGEN NO.2

main89465-08120iGSL35201409-201608

main89465-08150iGSL30201409-201608

main89465-0E040iGSL3#201109-201409

main89465-0E210iGSL3#201608-202009

89467BSENSOR, AIR FUEL RATIO

main89467-0E140iGSL3#201109-201409

main89467-0E200iGSL3#201409-201608

main89467-0E250iGSL3#201608-202009

main89467-45030iASL30201109-201308

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06130iGSL3#201109-201409

main89467-06180iGSL3#201409-201608

main89467-0E240iGSL3#201608-202009

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-08040iGSL30201109-201208

main89530-08060iASL30201109-201308

main89530-08070iGSL30201208-201302

sub89530-08071

main89530-08071iGSL30201303-201308

main89530-08090iGSL30201308-201608

main89530-08100iGSL35201308-201608

89615SENSOR, KNOCK CONTROL

main89615-06010iGSL3#201409-202009

main89615-06010iGSL3#201109-201409

(L)

main89615-20090iGSL3#201109-201409

(J)

main89615-20090iASL30201109-201308

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8271548A90BRACKET,WIRING HARNESS CLAMP

main82715-48A90

8271573010BRACKET,WIRING HARNESS CLAMP

main82715-73010

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011227

main90080-11227

90105A0127

main90105-A0127

90105A0128

main90105-A0128

90119A0182

main90119-A0182

9155180830

main91551-80830

9165140620

main91651-40620
