WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1SEAT 0012 1CLAMP & BRACKET 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CABLE BOND 0016 1CONNECTOR 1/4 0017 1CONNECTOR 2/4 0018 1CONNECTOR 3/4 0019 1CONNECTOR 4/4

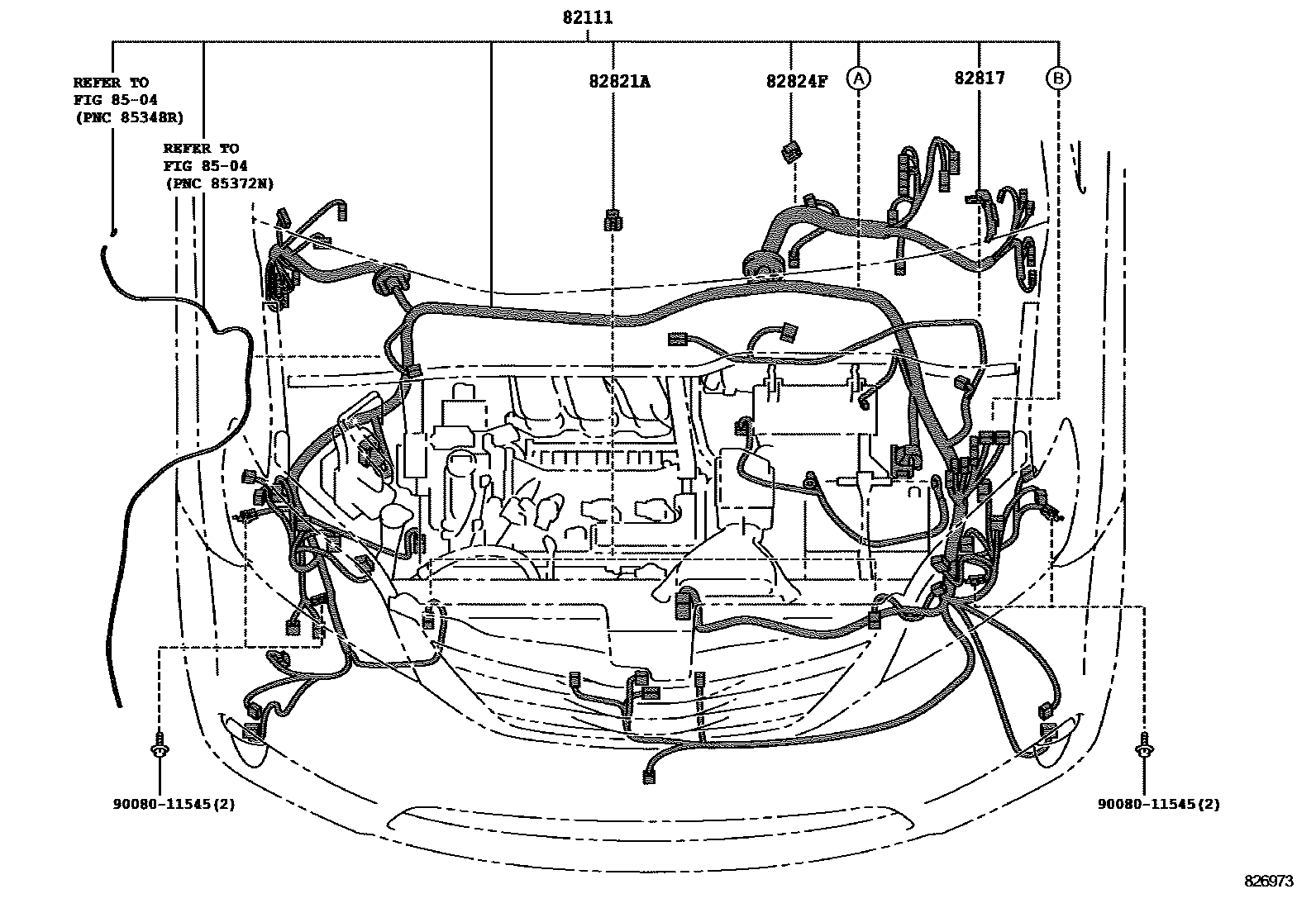

82111WIRE, ENGINE ROOM MAIN

main82111-08A20iGSL30201109-201308

main82111-08A30iASL30201109-201308

main82111-08A40iGSL3#201308-201408

main82111-08B60iGSL3#201409-201608

main82111-08F71iGSL3#201608-201711

main82111-08J00iGSL3#201711-201808

main82111-08J01iGSL3#201808-201812

main82111-08J02iGSL3#201901-201904

main82111-08U20iGSL3#201904-202009

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-08240iASL30201109-202009

82821ACOVER, CONNECTOR

main82821-30650iASL30201109-202009

82824CONNECTOR, WIRING HARNESS

main82824-50360iASL30201109-202009

82824FCONNECTOR, WIRING HARNESS

main82824-73040iASL30201109-202009

8504REAR WASHER

→ Go to FIG 85-04

9008011545

main90080-11545

7 parts on this diagram · 19 diagrams in section
