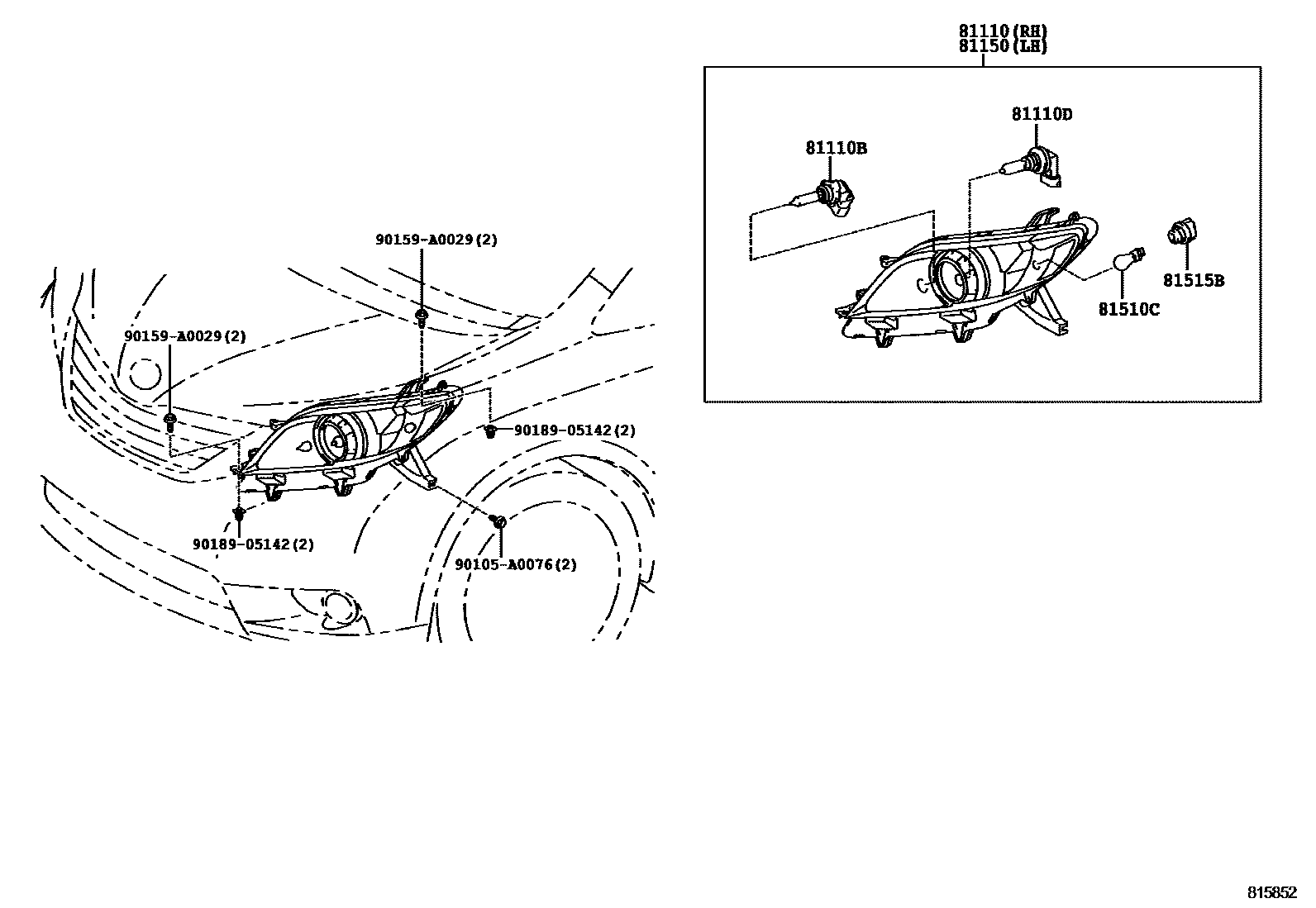

HEADLAMP

0001 1 0002 1 0003 1

81110HEADLAMP ASSY, RH

main81110-08030iASL30201109-201308

main81110-08060iGSL3#201409-201608

main81110-08061iGSL3#201806-201904

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iASL30201109-201308

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-AD008×2iASL30201109-201308

12V 55W

81150HEADLAMP ASSY, LH

main81150-08030iASL30201109-201308

main81150-08060iGSL3#201409-201608

main81150-08061iGSL3#201806-201904

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15025×2iGSL3#201608-201711

12V 28/8W,AMBER

main90981-AF005×2iGSL3#201109-201409

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-08060×2iGSL3#201409-201608

main81515-AE010×2iASL30201109-201308

90105A0076

main90105-A0076

90159A0029

main90159-A0029

9018905142

main90189-05142

9 parts on this diagram · 3 diagrams in section
