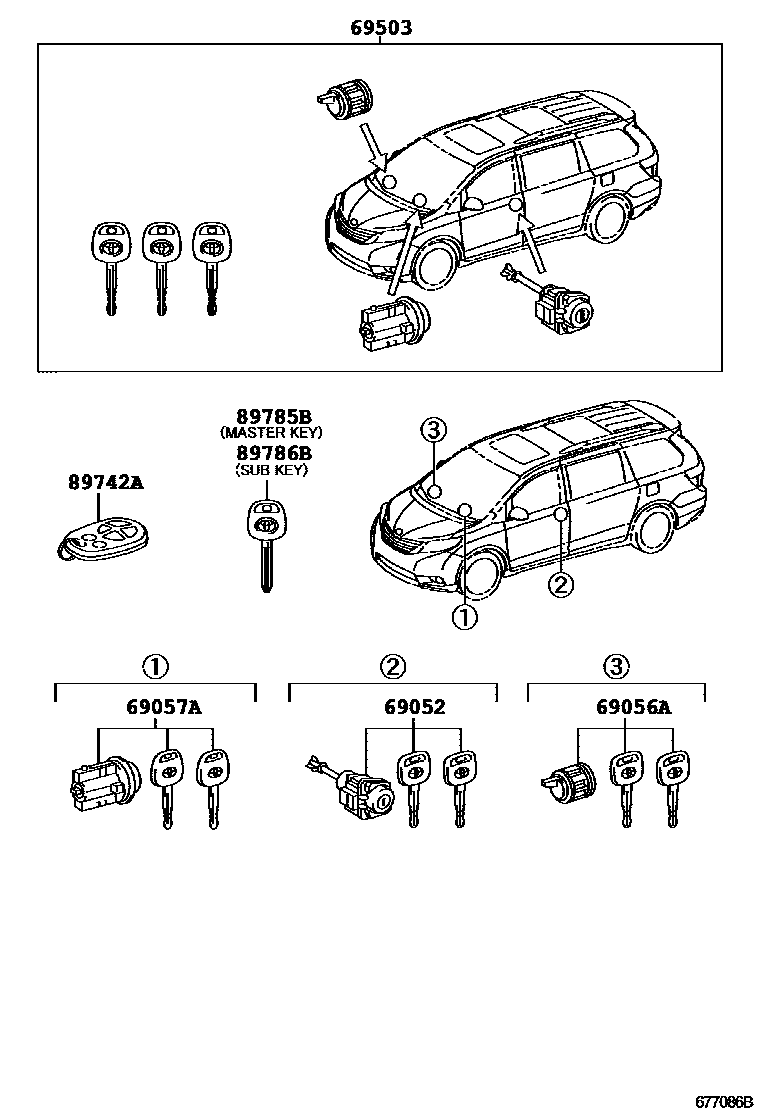

LOCK CYLINDER SET

0001 1W/O(STARTING SYSTEM-PUSH BUTT0002 1W(STARTING SYSTEM-PUSH BUTTON

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-08010supersedes 69052-08020iASL30,GSL30201109-201308

main69052-08020iGSL3#201409-201608

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-08020iGSL3#201608-201711

main69056-0E020supersedes 69056-08020iASL30,GSL30201109-201308

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02361iASL30,GSL30201109-201308

69503CYLINDER SET, LOCK

main69005-08010supersedes 69005-08020iASL30,GSL30201109-201308

main69005-08020iGSL3#201711-202009

89742ATRANSMITTER, DOOR CONTROL

main89742-08130×2iGSL30201109-201308

main89742-08140×2iASL30201109-201308

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08040iASL30,GSL30201109-201308

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08040iASL30,GSL30201109-201308

BLANK KEY

7 parts on this diagram · 2 diagrams in section
