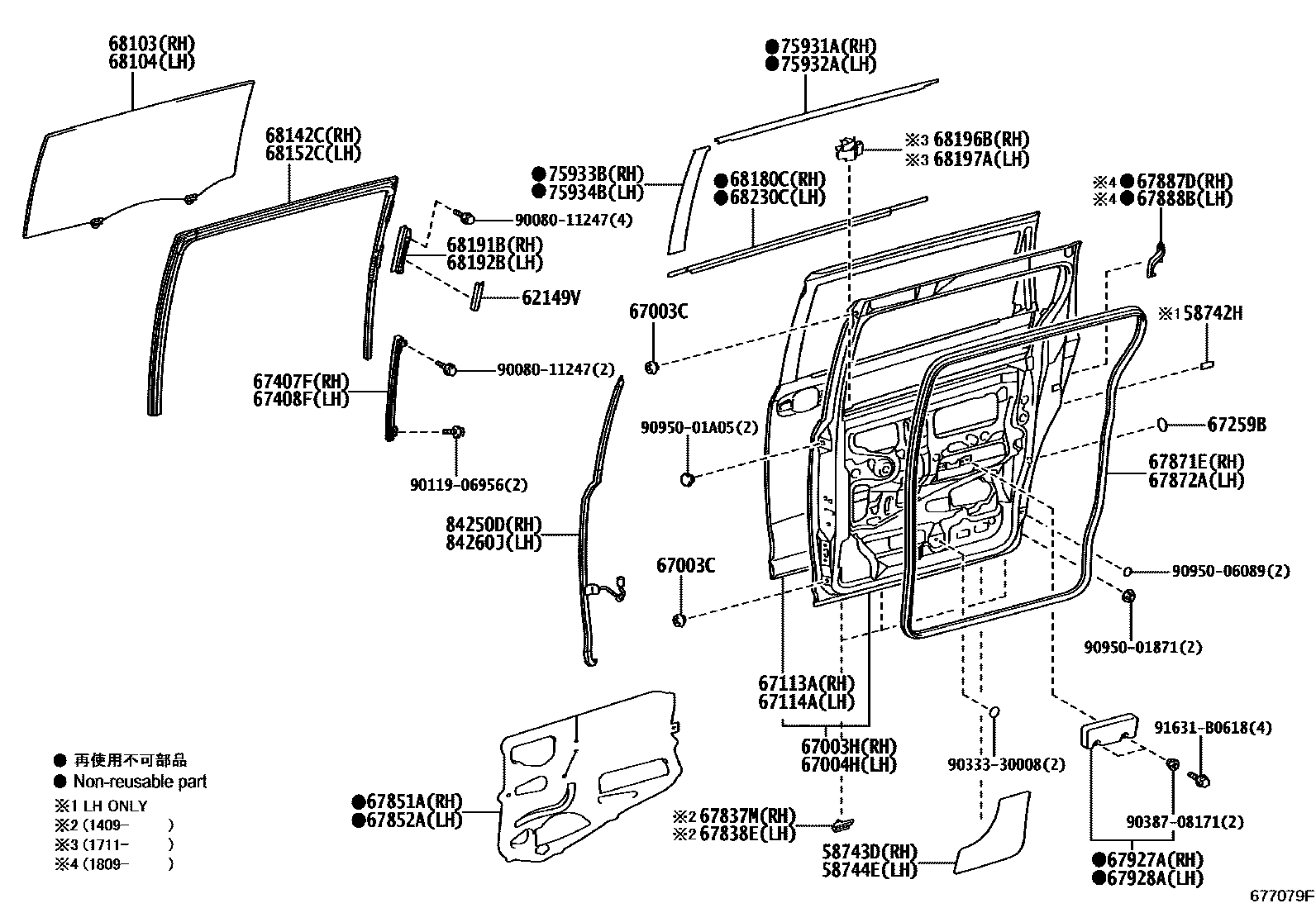

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM 0004 1DOOR TRIM

58742HPROTECTOR, SLIDE DOOR, LH

main58743-28010iGSL3#201409-201608

58743DPROTECTOR, SLIDE DOOR PANEL, RH

main58743-08030iASL30201109-201308

58744EPROTECTOR, SLIDE DOOR PANEL, LH

main58744-08010iASL30201109-201308

62149VTAPE, REAR SIDE WINDOW FRAME

main62149-08010×2iASL30201109-201308

67003CCUSHION, REAR DOOR PANEL

main90541-10040×4iGSL3#201409-201608

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-08111iGSL3#201711-202009

main67003-08130iGSL3#201409-201608

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-08111iGSL3#201711-202009

main67004-08130iASL30201109-201308

67113APANEL, SLIDE DOOR, OUTER RH

main67113-08030iASL30201109-201308

67114APANEL, SLIDE DOOR, OUTER LH

main67114-08030iASL30201109-201308

67259BREFLECTOR, SLIDE DOOR

main67259-AE010×2iASL30201109-201308

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-08020iGSL3#201409-201608

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-08020iASL30201109-201308

67837MSEAL, DOOR VENTILATION DUCT, RH

main67837-08020×3iGSL3#201409-201608

67838ESEAL, DOOR VENTILATION DUCT, LH

main67838-08020×3iGSL3#201409-201608

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-08020iGSL3#201109-201409

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-08020iGSL3#201109-201409

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-08030-B0iGSL3#201109-201409

GRAY,TRIM1#

main67871-08030-C0iGSL3#201409-201608

BLACK,TRIM1#,4#

main67871-08030-E0iASL30201109-201308

ASH BROWN,TRIM4#

main67871-08031iGSL3#201904-202009

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-08030-B0iASL30201109-201308

GRAY,TRIM1#

main67872-08030-C0iGSL3#201409-201608

BLACK,TRIM1#,4#

main67872-08030-E0iASL30201109-201308

ASH BROWN,TRIM4#

main67872-08031iGSL3#201904-202009

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-08040iGSL3#201809-202009

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-08030iGSL3#201809-202009

67927ACUSHION, REAR DOOR STIFFENER, RH

main67927-08020iASL30201109-201308

67928ACUSHION, REAR DOOR STIFFENER, LH

main67928-08020iASL30201109-201308

68103GLASS SUB-ASSY, REAR DOOR, RH

main62750-08051iGSL3#201409-201608

*TEM,T=4.0,PRIVACY

main62750-08060iASL30,GSL30201109-201304

*HSEA,T=4.0,GREEN

main62750-08061iASL30,GSL30201305-201308

*HSEA,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main62760-08051iGSL3#201608-201711

main62760-08060iASL30,GSL30201109-201304

*HSEA,T=4.0,GREEN

main62760-08061iASL30,GSL30201305-201308

*HSEA,T=4.0,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-08020iASL30201109-201308

68152CRUN, REAR DOOR GLASS, LH

main68152-08020iGSL3#201711-202009

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-08020iASL30201109-201308

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-08010iASL30201109-201308

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-08010iASL30201109-201308

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-08010iGSL3#201711-202009

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-08010iGSL3#201711-202009

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-08020iASL30201109-201308

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-08010iASL30201109-201308

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-08010iASL30201109-201308

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-08010iASL30201109-201308

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-08010iASL30201109-201308

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-08070iASL30201109-201308

main84250-08071iGSL3#201506-201608

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-08050iASL30201109-201308

main84260-08051iGSL3#201506-201608

9008011247

main90080-11247

9011906956

main90119-06956

9033330008

main90333-30008

9038708171

main90387-08171

9095001871

main90950-01871

9095001A05

main90950-01A05

9095006089

main90950-06089

91631B0618

main91631-B0618

46 parts on this diagram · 4 diagrams in section
