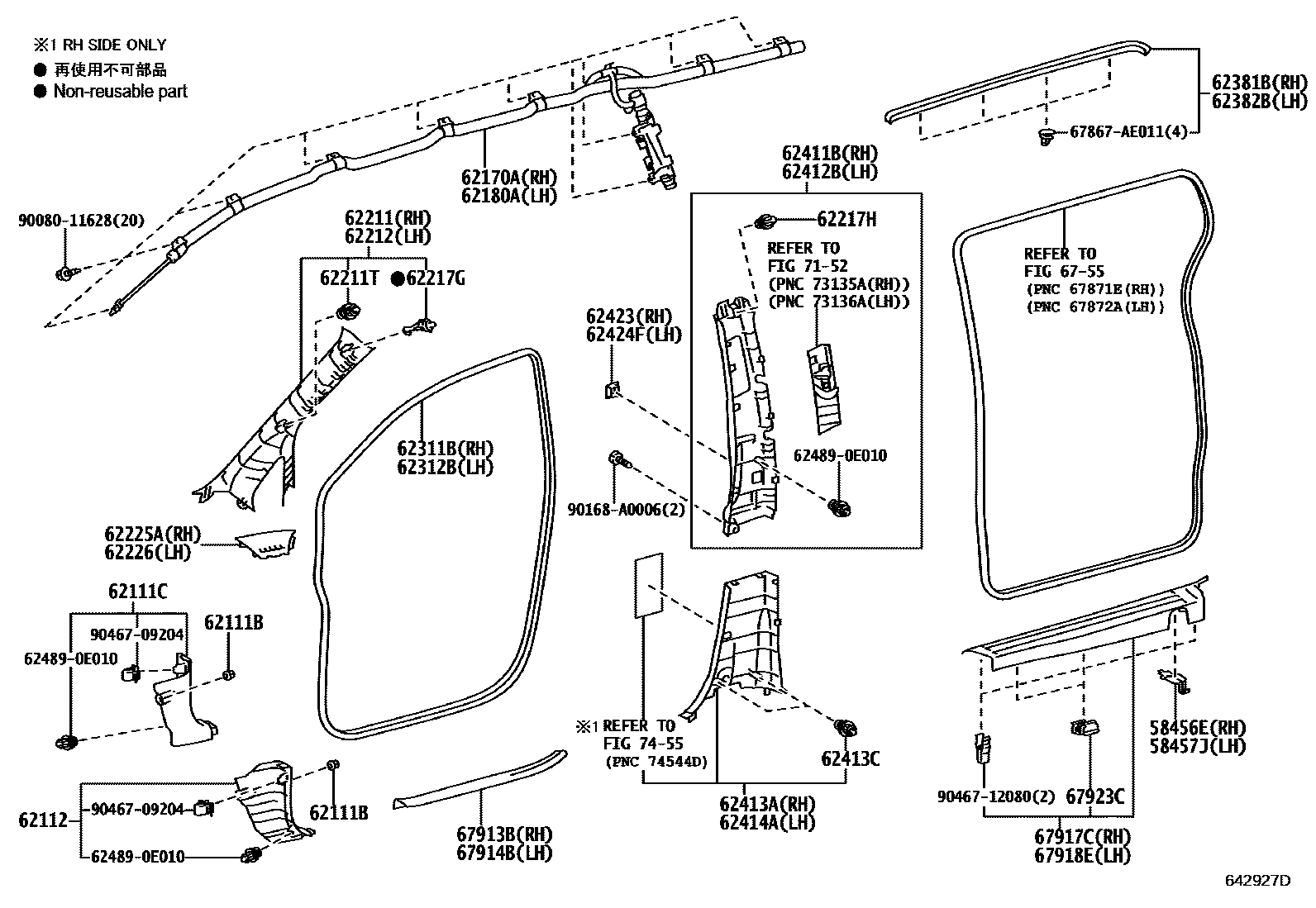

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1RH 0005 1LH 0006 1RH W(REAR SUNSHADE) 0007 1LH W(REAR SUN SHADE)

58456EBRACKET, REAR GARNISH, NO.1 RH

main58456-08010iGSL3#201109-201409

58457JBRACKET, REAR GARNISH, NO.1 LH

main58456-08010iASL30201109-201409

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06155iGSL3#201109-202009

62111CBOARD, COWL SIDE TRIM, RH

main62111-08020-B0iASL30201109-201409

GRAY,TRIM1#

main62111-08020-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

main62111-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-08020-B0iGSL3#201109-201409

GRAY,TRIM1#

main62112-08020-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

main62112-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-08021iASL30201109-201409

sub62170-08022

main62170-08031iGSL3#201409-201608

sub62170-08032

main62170-08032iGSL3#201608-201704

sub62170-08033

main62170-08033iGSL3#201705-202009

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-08021iASL30201109-201409

sub62180-08022

main62180-08031iGSL3#201409-201608

sub62180-08032

main62180-08032iGSL3#201608-201704

sub62180-08033

main62180-08033iGSL3#201705-202009

62211GARNISH, FRONT PILLAR, RH

main62211-08060-B0iASL30201109-201409

LT.GRAY,TRIM1#

main62211-08060-E0iASL30201109-201409

GREGE,TRIM4#

main62211-08070-B1iGSL3#201409-202009

GRAY,TRIM1#

main62211-08070-E0iGSL3#201409-202009

GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62489-0E010iASL30201109-202009

62212GARNISH, FRONT PILLAR, LH

main62212-08060-B0iASL30201109-201409

LT.GRAY,TRIM1#

main62212-08060-E0iASL30201109-201409

GREGE,TRIM4#

main62212-08070-B1iGSL3#201409-202009

GRAY,TRIM1#

main62212-08070-E0iGSL3#201409-202009

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-06010iGSL3#201109-201409

main62217-52120iGSL3#201409-202009

62217HCLIP, CENTER PILLER GARNISH

main62217-13010iGSL3#201109-202009

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-08020-C0iASL30201109-201409

BLACK,TRIM1#,4#

main62225-08030-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-08020-C0iASL30201109-201409

BLACK,TRIM1#,4#

main62226-08030-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-08020-B0iASL30201109-201409

GRAY,TRIM1#

main62311-08020-C0iGSL3#201409-201904

BLACK,TRIM1#,4#

main62311-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

main62311-08022iGSL3#201904-202009

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-08020-B0iGSL3#201109-201409

GRAY,TRIM1#

main62312-08020-C0iGSL3#201409-201904

BLACK,TRIM1#,4#

main62312-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

main62312-08022iGSL3#201904-202009

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-08020iGSL3#201109-202009

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-08040iGSL3#201109-202009

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-08060-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main62411-08060-B2iGSL3#201409-202009

GRAY,TRIM1#

main62411-08060-E0iGSL3#201109-201409

GREGE,TRIM4#

main62411-08060-E1iGSL3#201409-202009

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-08070-B0iASL30201109-201409

LT.GRAY,TRIM1#

main62412-08070-B2iGSL3#201409-202009

GRAY,TRIM1#

main62412-08070-E0iGSL3#201109-201409

GREGE,TRIM4#

main62412-08070-E1iGSL3#201409-202009

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-08050-B0iGSL3#201109-201409

GRAY,TRIM1#

main62413-08050-E0iGSL3#201109-201409

ASH BROWN,TRIM4#

main62413-08060-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62489-0E010iGSL3#201109-202009

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-08040-B0iASL30201109-201409

GRAY,TRIM1#

main62414-08040-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

main62414-08040-E0iASL30201109-201409

ASH BROWN,TRIM4#

62423COVER, CENTER PILLAR GARNISH, LOWER RH

main62423-08020-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main62423-08020-B1iGSL3#201409-202009

GRAY,TRIM1#

main62423-08020-E0iGSL3#201109-202009

GREGE,TRIM4#

62424FCOVER, CENTER PILLAR GARNISH, LOWER LH

main62424-08020-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main62424-08020-B1iGSL3#201409-202009

GRAY,TRIM1#

main62424-08020-E0iGSL3#201109-202009

GREGE,TRIM4#

6755

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-08020-B0iGSL3#201109-201409

GRAY,TRIM1#

main67913-08020-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

main67913-08020-E0iGSL3#201109-201409

ASH BROWN,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-08020-B0iASL30201109-201409

GRAY,TRIM1#

main67914-08020-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

main67914-08020-E0iGSL3#201109-201409

ASH BROWN,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-08020-B0iGSL3#201109-201409

GRAY,TRIM1#

main67917-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

main67917-08060-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-08020-B0iGSL3#201109-201409

GRAY,TRIM1#

main67918-08020-E0iASL30201109-201409

ASH BROWN,TRIM4#

main67918-08060-C0iGSL3#201409-202009

BLACK,TRIM1#,4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iASL30201109-202009

7152

7455

624890E010CLIP, MAP LAMP RETAINER

main62489-0E010

67867AE011CLIP, DOOR WEATHERSTRIP

main67867-AE011

9008011628

main90080-11628

90168A0006

main90168-A0006

9046709204

main90467-09204

9046712080

main90467-12080

39 parts on this diagram · 7 diagrams in section
