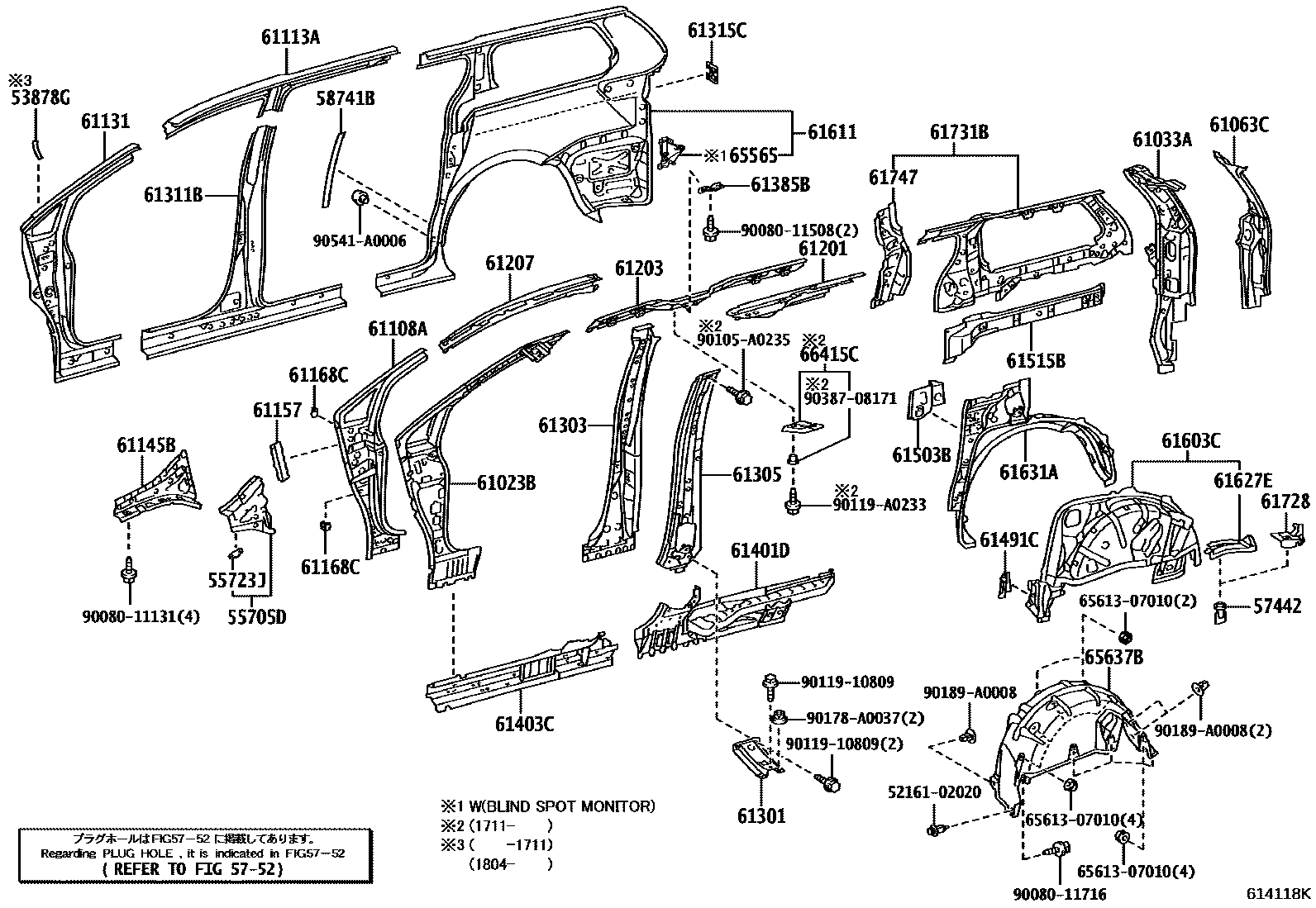

SIDE MEMBER
53878GSPACER, FRONT FENDER
55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,
55723JREINFORCEMENT, COWL TOP SIDE, RH
57442PLUG, STEP PANEL HOLE
5752HOLE PLUG
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61113APANEL, SIDE, OUTER NO.2 RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61157BRACKET, NO.2 SIDE PANEL
61168CBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61207RAIL SUB-ASSY, ROOF SIDE, INNER CENTER RH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61315CRETAINER, DOOR LOCK STRIKER, RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61491CPLATE, NO.3 LOWER RAIL, INNER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61515BEXTENSION, QUARTER LOCK PILLAR, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61611PANEL, QUARTER, RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61728REINFORCEMENT, QUARTER PANEL, FRONT RH
61731BPANEL, ROOF SIDE, INNER RH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
65565PATCH, SIDE PANEL REAR END, RH
65637BLINER, REAR WHEEL HOUSE, RH
66415CSPACER, SIDE RAIL, REAR NO.2 RH
5216102020CUSHION, REAR BUMPER GUARD, NO.1
main52161-02020
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
9008011131
main90080-11131
9008011508
main90080-11508
9008011716
main90080-11716
90105A0235
main90105-A0235
9011910809
main90119-10809
90119A0233
main90119-A0233
90178A0037
main90178-A0037
90189A0008
main90189-A0008
9038708171
main90387-08171
90541A0006
main90541-A0006
51 parts on this diagram · 2 diagrams in section
