FRONT AXLE ARM & STEERING KNUCKLE

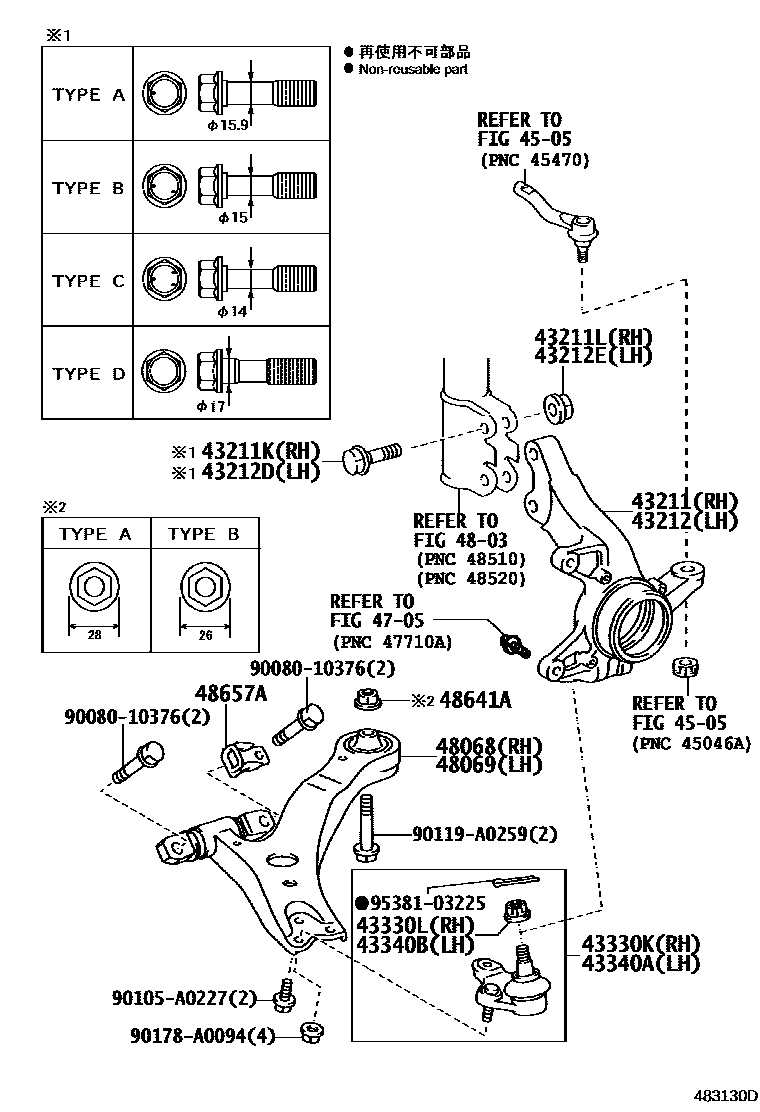

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-08030i201409-201608
main43211-0E010i201109-201409
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-17013i201109-201308
OD=15.9,TYPE A:REFER ILLUST.
main90105-17014i201608-201711
OD=15,TYPE B:REFER ILLUST.
main90105-17015i201409-201608
OD=14,TYPE C:REFER ILLUST.
main90105-A0052×2i201608-201711
OD=17,TYPE D:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
main90178-A0027×2i201109-201308
43212KNUCKLE, STEERING, LH
main43212-08030i201608-201711
main43212-0E010i201409-201608
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-17013i201109-201308
OD=15.9,TYPE A:REFER ILLUST.
main90105-17014i201608-201711
OD=15,TYPE B:REFER ILLUST.
main90105-17015i201608-201711
OD=14,TYPE C:REFER ILLUST.
main90105-A0052×2i201711-202009
OD=17,TYPE D:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
main90178-A0027×2i201409-201608
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-09780i201109-201308
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90080-17214i201109-201308
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43340-09140i201711-202009
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90080-17214i201109-201409
4505FRONT STEERING GEAR & LINK
→ Go to FIG 45-05
4705FRONT DISC BRAKE CALIPER & DUST COVER
→ Go to FIG 47-05
4803FRONT SPRING & SHOCK ABSORBER
→ Go to FIG 48-03
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-08040i201109-201308
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-08040i201711-202009
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
main90080-17223×2i201604-201608
TYPE B:REFER ILLUST.
main90179-14045×2i201604-201608
TYPE A:REFER ILLUST.
48657ASTOPPER, FRONT LOWER ARM BUSH
main48657-06010×2i201109-201308
9008010376
main90080-10376
90105A0227
main90105-A0227
90119A0259
main90119-A0259
90178A0094
main90178-A0094
9538103225
main95381-03225

22 parts on this diagram · 1 diagram in section
