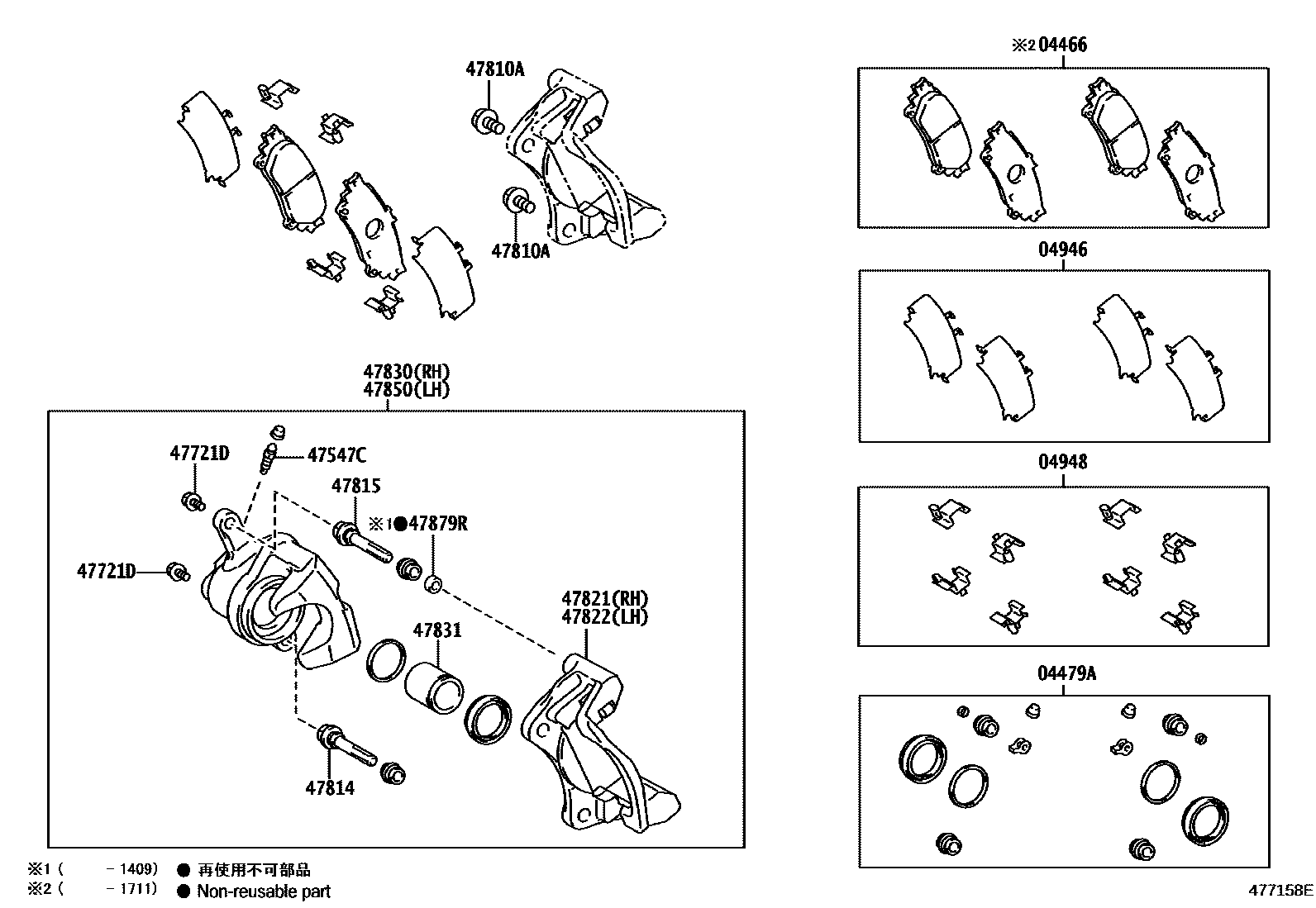

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E010iASL30201109-201308

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0E020iASL30,GSL30201109-201110

main04479-0E060iGSL3#201409-201608

main04479-0E080iASL30201110-201308

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0E030iGSL3#201109-201409

main04946-0E060iGSL3#201409-201608

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iGSL3#201409-201608

main04948-48050iASL30201109-201308

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-48100×2iASL30201109-201308

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604×4iGSL3#201109-201409

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-10395×4iASL30201109-201308

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06120×2iGSL3#201608-201711

main47814-0E020×2iASL30,GSL30201109-201110

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06120×2iGSL3#201711-202009

main47815-0E020×2iASL30,GSL30201109-201110

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E020iASL30,GSL30201109-201110

main47821-0E021iGSL3#201110-201409

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0E020iASL30,GSL30201109-201110

main47822-0E021iASL30201110-201308

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E020iASL30,GSL30201109-201110

main47830-0E021iASL30201110-201308

main47830-0E070iGSL3#201409-201608

47831PISTON, REAR DISC BRAKE

main47831-0E021×2iASL30201109-201308

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E020iASL30,GSL30201109-201110

main47850-0E021iASL30201110-201308

main47850-0E070iGSL3#201409-201608

47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47879-06052×2iASL30,GSL30201109-201110

main47879-06120×2iASL30201110-201308

15 parts on this diagram · 1 diagram in section
