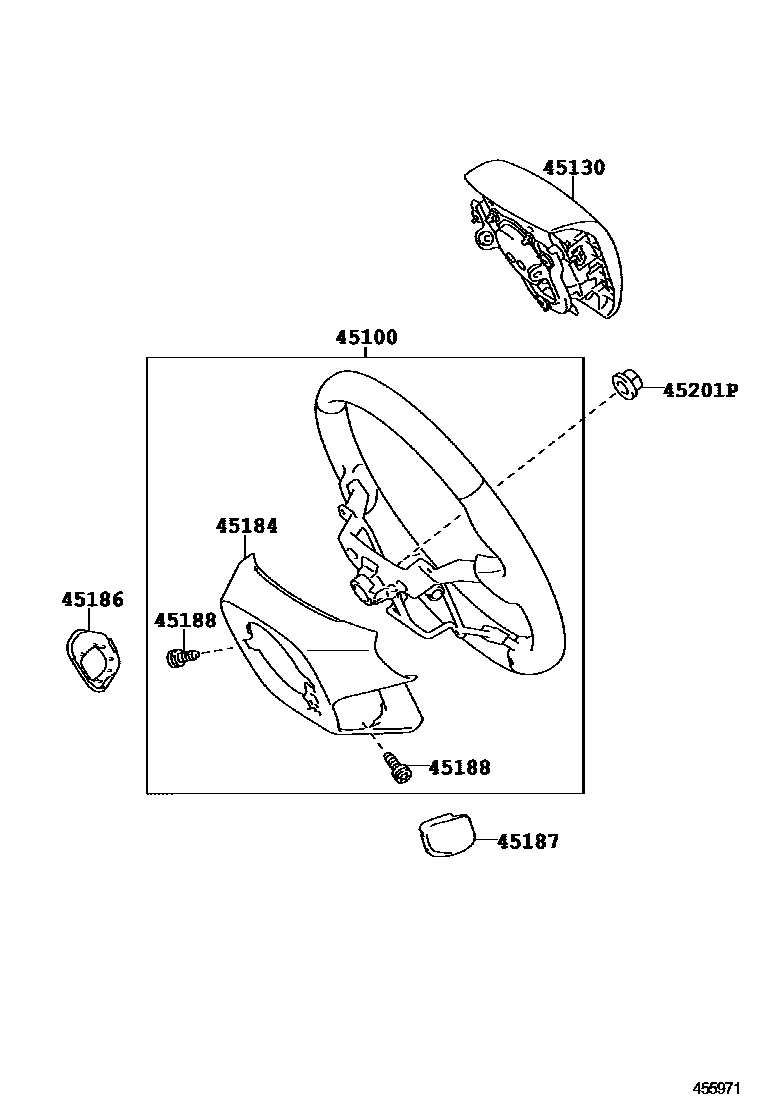

STEERING WHEEL

0001 14-SPOKE 0002 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-08210-B0iASL30201109-201308

4-SPOKE,LEATHER,LT.GRAY,TRIM1#

main45100-08210-E0iASL30201109-201308

4-SPOKE,LEATHER,GREGE,TRIM4#

main45100-08230-B1iGSL3#201109-201409

4-SPOKE,WOOD&LEATHER,GRAY,TRIM1#

main45100-08230-E1iGSL3#201109-201409

4-SPOKE,WOOD&LEATHER,GREGE,TRIM4#

main45100-0E371-C0iGSL3#201409-201505

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-0E372-C0iGSL3#201506-201608

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-08080-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main45130-08080-E0iASL30201109-201308

GREGE,TRIM4#

main45130-08100-C0iGSL3#201409-201608

BLACK,TRIM1#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-08030-B0iASL30201109-201308

LT.GRAY,TRIM1#

main45184-08030-E0iGSL3#201109-201409

GREGE,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-08010-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main45186-08010-E0iGSL3#201109-201409

GREGE,TRIM4#

main45186-0E060-C0iGSL3#201608-201711

BLACK,TRIM1#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-08010-B0iGSL3#201109-201409

LT.GRAY,TRIM1#

main45187-08010-E0iASL30201109-201308

GREGE,TRIM4#

main45187-0E050-C0iGSL3#201409-201608

BLACK,TRIM1#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010×2iASL30201109-201308

L=18.5

45201PNUT, STEERING WHEEL SET

main90080-17234iASL30201109-201308

7 parts on this diagram · 2 diagrams in section
