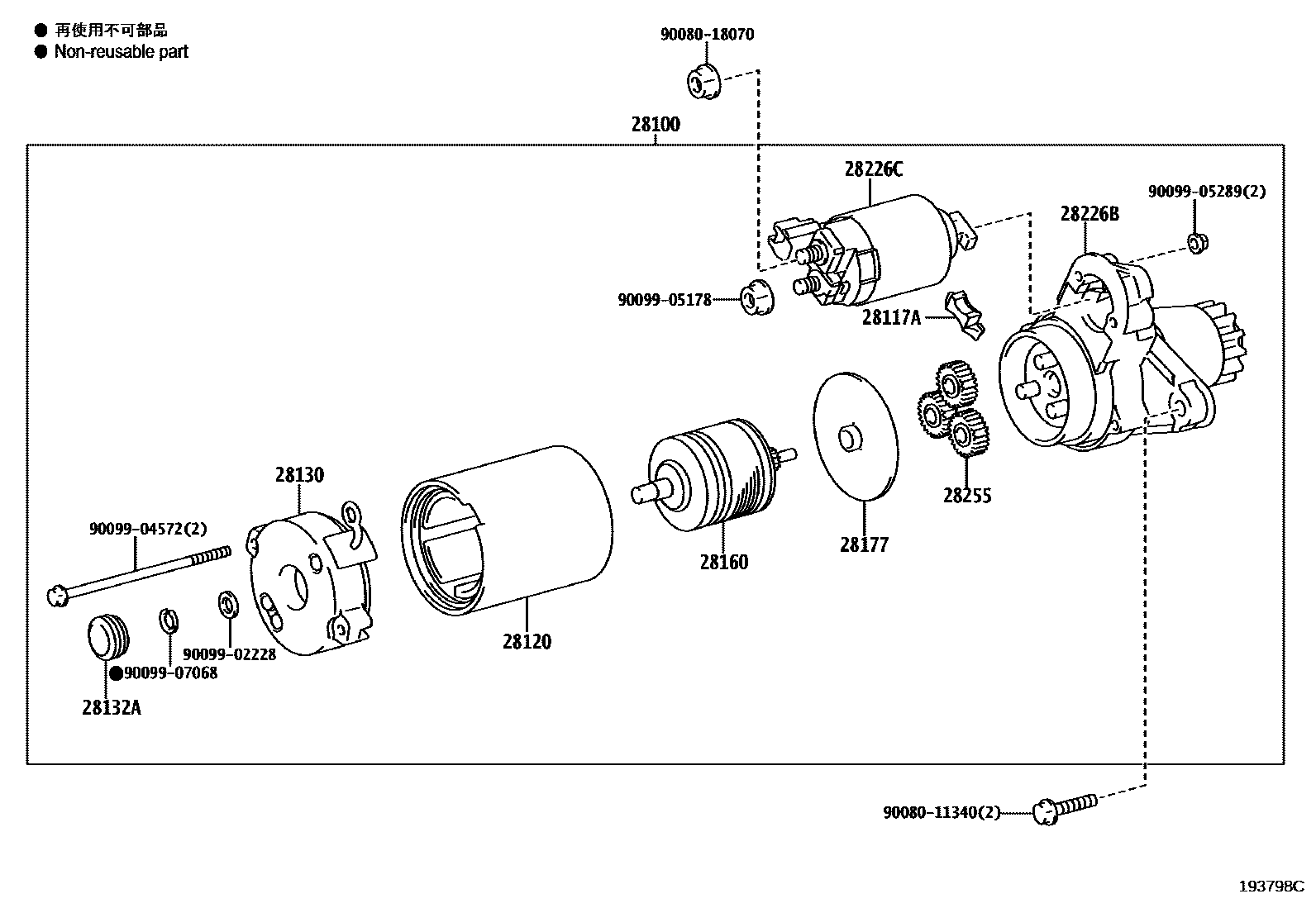

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-0A011i2GRFE..GSL3#201109-201409

12V 1.7KW

main28100-0P110i2GRFKS..GSL3#201608-201711

12V 1.7KW

main28100-0V012i2GRFE..GSL3#201510-201608

12V 1.7KW

28117ASEAL, RUBBER

main28117-0P030i2GRFE..GSL3#201510-201608

main28117-28060i2GRFKS..GSL3#201711-202009

28120YOKE ASSY, STARTER

main28120-0P030i2GRFE..GSL3#201510-201608

main28120-28060i2GRFE..GSL3#201109-201409

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i1ARFE..ASL30201109-201308

main28130-31200i2GRFKS..GSL3#201608-201711

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1ARFE..ASL30201109-201308

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GSL3#201109-201409

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFE..GSL3#201109-201409

28226BSTARTER KIT, REPAIR SERVICE

main28226-0P030i2GRFE..GSL3#201510-201608

main28226-28041i2GRFE..GSL3#201409-201510

main28226-31220i2GRFKS..GSL3#201608-201711

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28150-40090i2GRFE..GSL3#201510-201608

main28226-28051i1ARFE..ASL30201109-201308

28255GEAR, PLANET

main28255-0A010×3i1ARFE..ASL30201109-201308

main28255-20020×3i2GRFKS..GSL3#201608-201711

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

17 parts on this diagram · 2 diagrams in section
