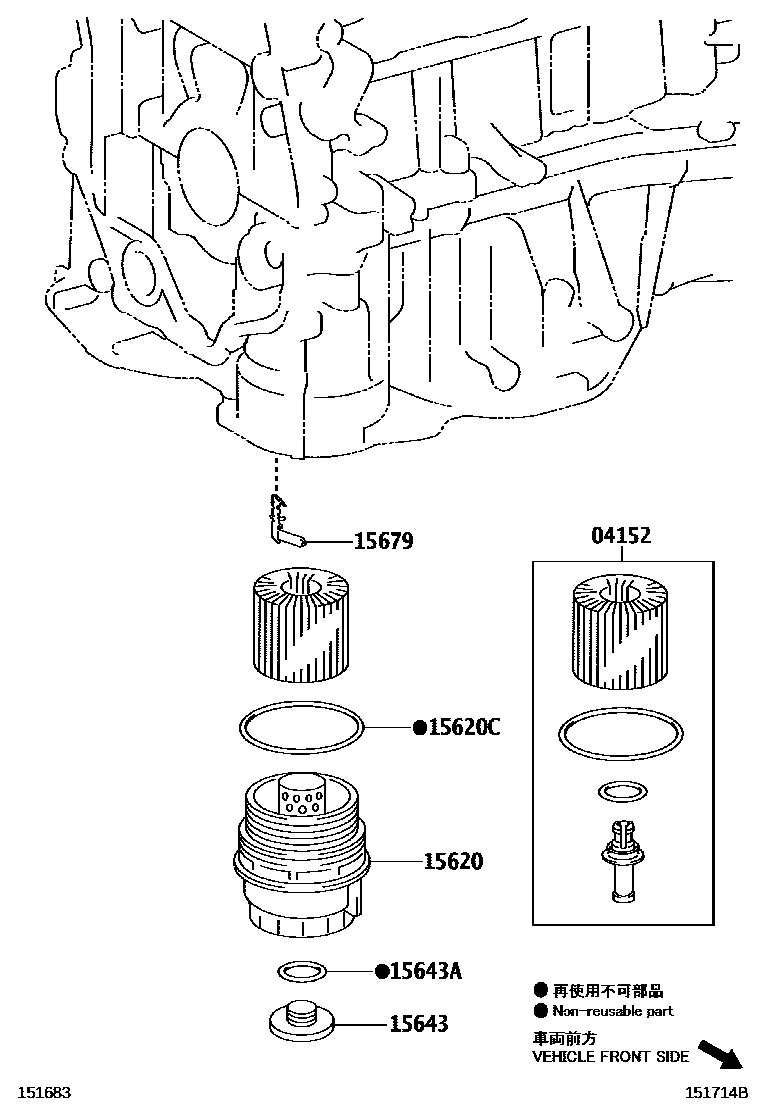

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2GRFKS..GSL3#201608-201711

15620CAP ASSY, OIL FILTER

main15620-31060i2GRFE..GSL3#201409-201608

main15620-36020i2GRFKS..GSL3#201711-202009

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2GRFKS..GSL3#201711-202009

main96723-35028i2GRFE..GSL3#201409-201608

15643PLUG, OIL FILTER DRAIN

main15643-31050i2GRFKS..GSL3#201711-202009

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-79006i2GRFE..GSL3#201109-201409

main96723-35028i1ARFE..ASL30201109-201308

*107,*212

15679CLIP, OIL FILTER BRACKET

main15679-31050i2GRFKS..GSL3#201608-201711

main15679-37010i1ARFE..ASL30201109-201308

*107,*212

6 parts on this diagram · 3 diagrams in section
