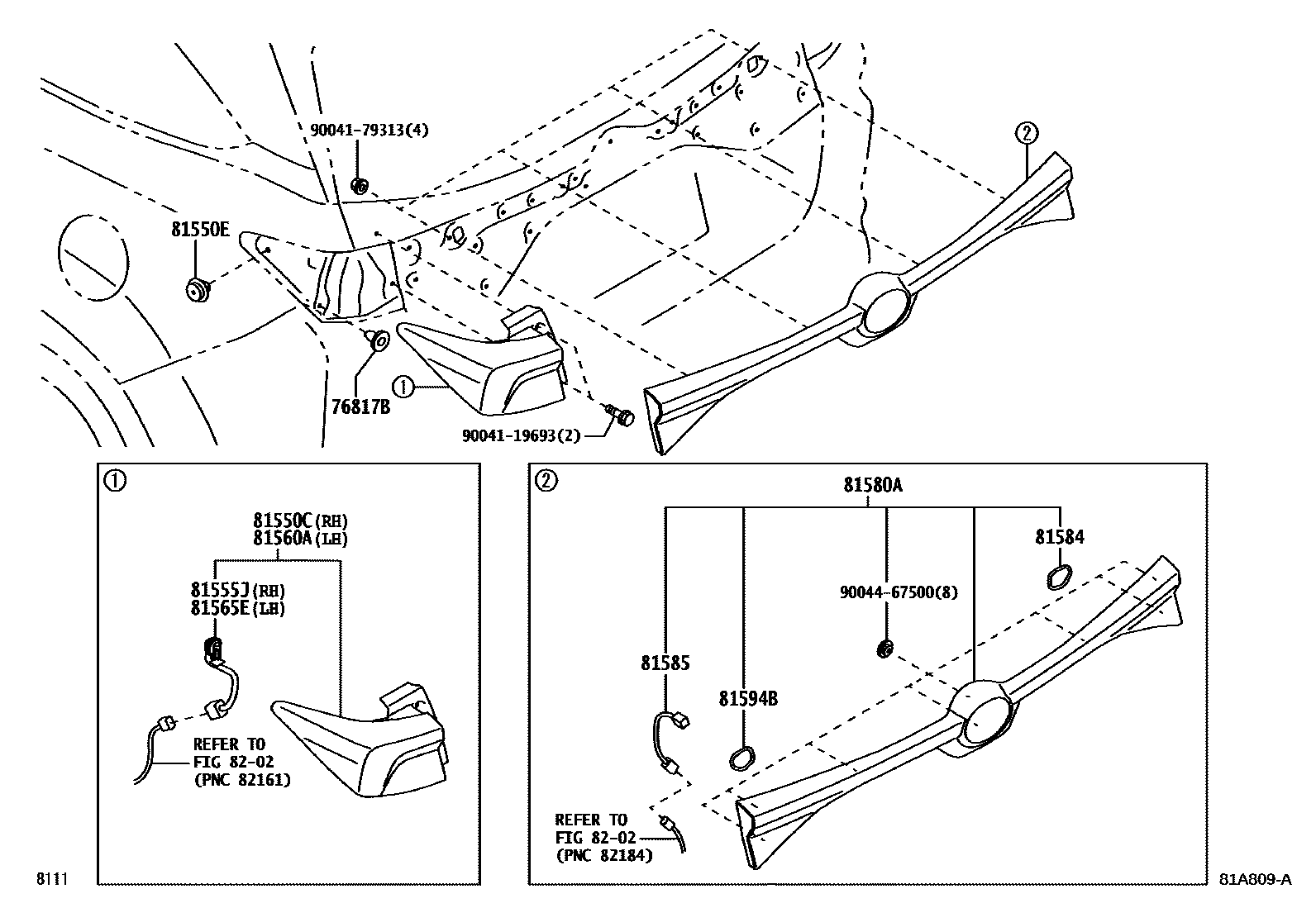

REAR COMBINATION LAMP

76817BCLIP, REAR LAMP

main90044-67602×2iW151202206

81550CLAMP ASSY, REAR COMBINATION, RH

main81550-BZA60iW151202206

81550ECLIP(FOR REAR COMBINATION LAMP)

main81559-B2020×2iW151202206

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-BZ280iW151202206

81560ALAMP ASSY, REAR COMBINATION, LH

main81560-BZA60iW151202206

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-BZ120iW151202206

81580ALAMP ASSY, REAR

main81580-BZ190iW151202206

81584PACKING, REAR LAMP RH

main81582-BZ070iW151202206

81585SOCKET & WIRE, REAR LAMP

main81595-BZ040iW151202206

81594BPACKING, REAR LAMP LH

main81592-BZ070iW151202206

8202WIRING & CLAMP

→ Go to FIG 82-02

9004119693

main90041-19693

9004179313

main90041-79313

9004467500

main90044-67500

14 parts on this diagram · 1 diagram in section
