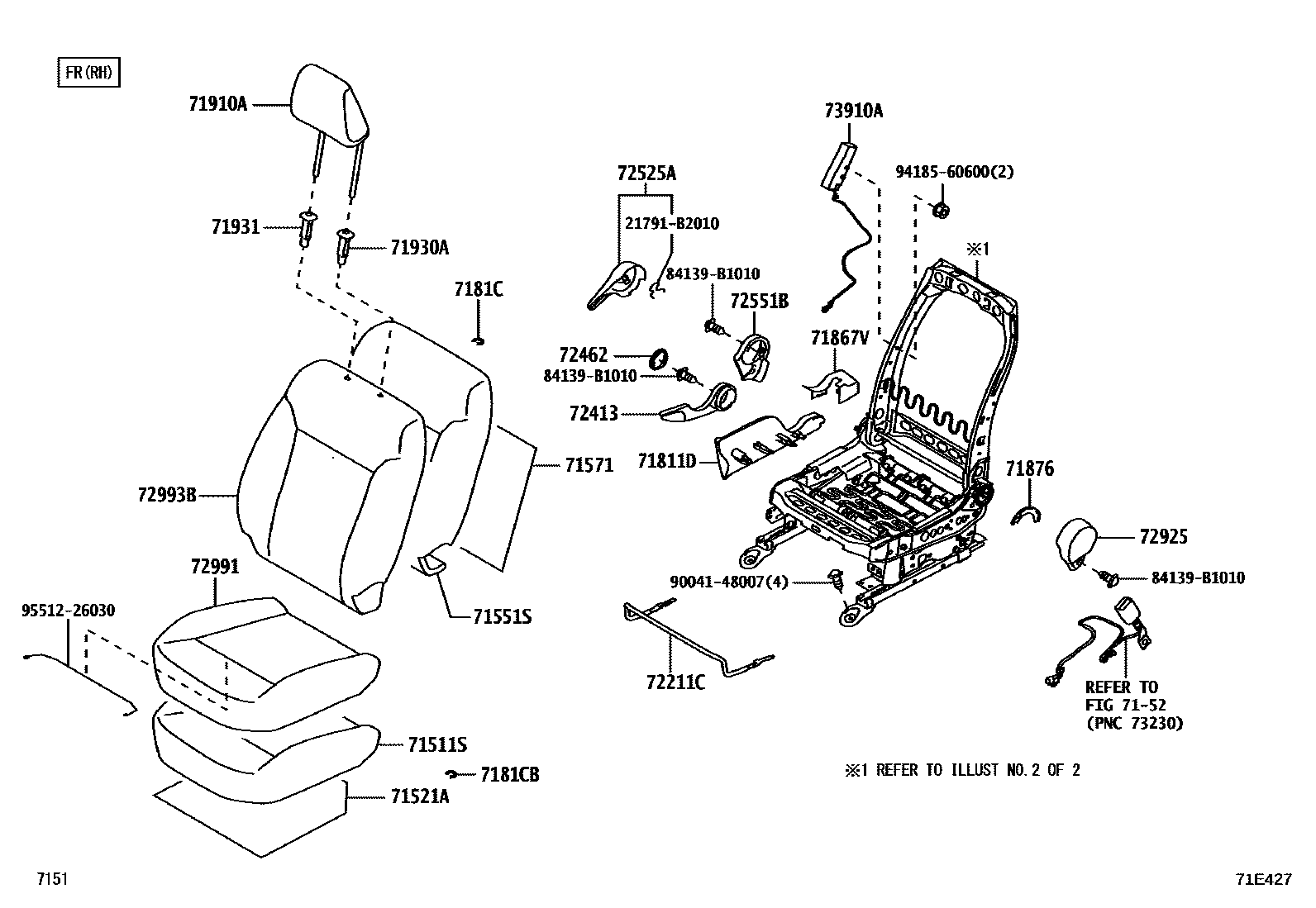

SEAT & SEAT TRACK

0001 1FR SEAT(RH) 0002 1FR SEAT(RH) 0003 1FR SEAT(LH) 0004 1FR SEAT(LH) 0005 1RR NO.1 SEAT(RH) 0006 1RR NO.1 SEAT(RH) 0007 1RR NO.1 SEAT(LH) 0008 1RR NO.2 SEAT(RH) 0009 1RR NO.2 SEAT(LH)

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ570iW151202206

7152

71521APAD,FRONT SEAT CUSHION SILENCER

main71147-B1020iW151202206

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ590iW151202206

71571PAD, FRONT SEATBACK SILENCER, A

main71147-B1240iW151202303

main71147-B2160iW151202206-202302

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ330-C0iW151202206

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87Z03×11iW151202206

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87Z03×11iW151202206

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-B1010-C0iW151202206

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-B2060-C0iW151202206-202211

BLACK,TRIM2#

main71876-BZ060-C0iW151202212

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZK00-C0iW151202206

-,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-B2030-C0iW151202206

W(LOCK),BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71931-B2030-C0iW151202206

W/O(LOCK),BLACK,TRIM2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ170iW151202206

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-B1050iW151202206

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-B1070-C0iW151202206

BLACK,TRIM2#

72462COVER, VERTICAL ADJUSTER RH

main72462-BZ050-C0iW151202206

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B2140-C0iW151202206

BLACK,TRIM2#

72551BCOVER, RECLINING HINGE, RH

main72551-B2010-C0iW151202206

BLACK,TRIM2#

72925COVER, FRONT SEAT CUSHION

main72991-BZ350-C0iW151202206

BLACK,TRIM2#

72991COVER, FRONT SEAT CUSHION, RH

main71071-BZR50-C1iW151202206

BLACK,TRIM2#

72993COVER, FRONT SEATBACK

main72993-B2010-C0iW151202206

BLACK,TRIM2#

72993BCOVER, FRONT SEATBACK, RH

main71073-BZT40-C0iW151202206

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-BZ040iW151202206

21791B2010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-B2010

84139B1010

main84139-B1010

9004148007

main90041-48007

9418560600

main94185-60600

9551226030

main95512-26030

29 parts on this diagram · 9 diagrams in section
