LOCK CYLINDER SET

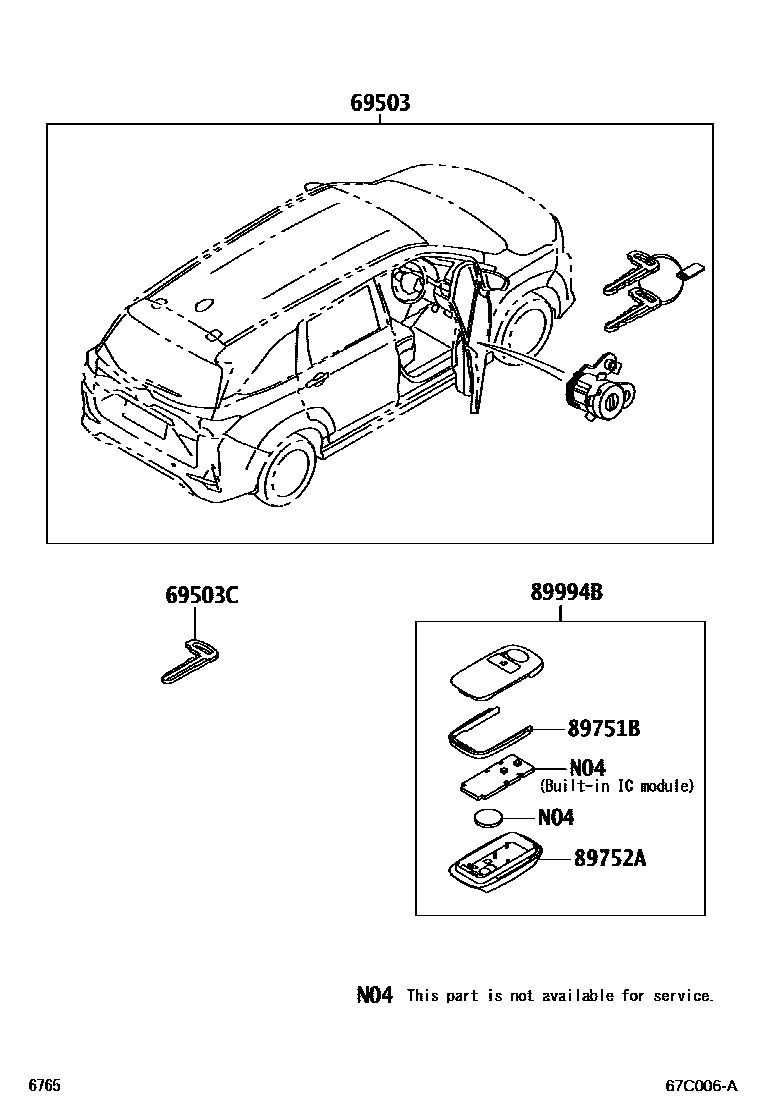

Parts diagram

69503CYLINDER SET, LOCK

main69005-BZE80i202206

69503CKEY, SUB

main69516-BZ140i202206

89751BCOVER, TRANSMITTER HOUSING

main89751-BZ240i202206

89752ACASE, TRANSMITTER HOUSING

main89752-BZ300i202206

89994BTRANSMITTER, ELECTRICAL KEY

main89994-BZ070i202206

5 parts on this diagram · 1 diagram in section
