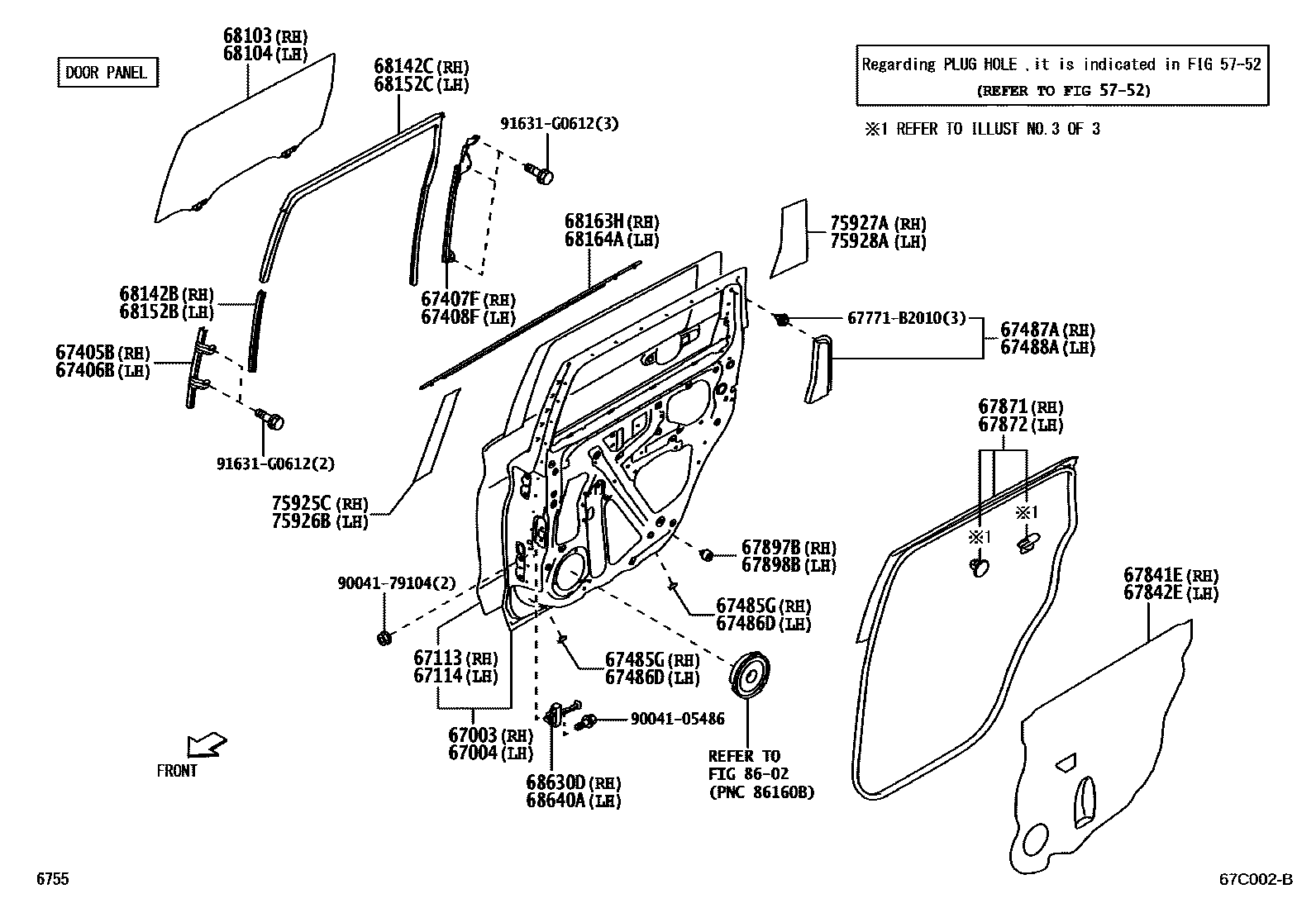

REAR DOOR PANEL & GLASS
5752HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67485GSEAL, REAR DOOR REAR LOWER FRAME, RH
67486DSEAL, REAR DOOR REAR LOWER FRAME, LH
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142BRUN, REAR DOOR WINDOW, RH
68142CRUN, REAR DOOR GLASS, RH
68152BRUN, REAR DOOR WINDOW, LH
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75925CTAPE, BLACK OUT, NO.3 RH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75926BTAPE, BLACK OUT, NO.3 LH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75927ATAPE, BLACK OUT, NO.4 RH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
75928ATAPE, BLACK OUT, LH
TUYAKESI BLACK DUMMYCOLOR,R67 ,S28 ,W09 ,X16 ,XL2 ,XL3
8602SPEAKER
67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-B2010
9004105486
main90041-05486
9004179104
main90041-79104
91631G0612
main91631-G0612
38 parts on this diagram · 3 diagrams in section
