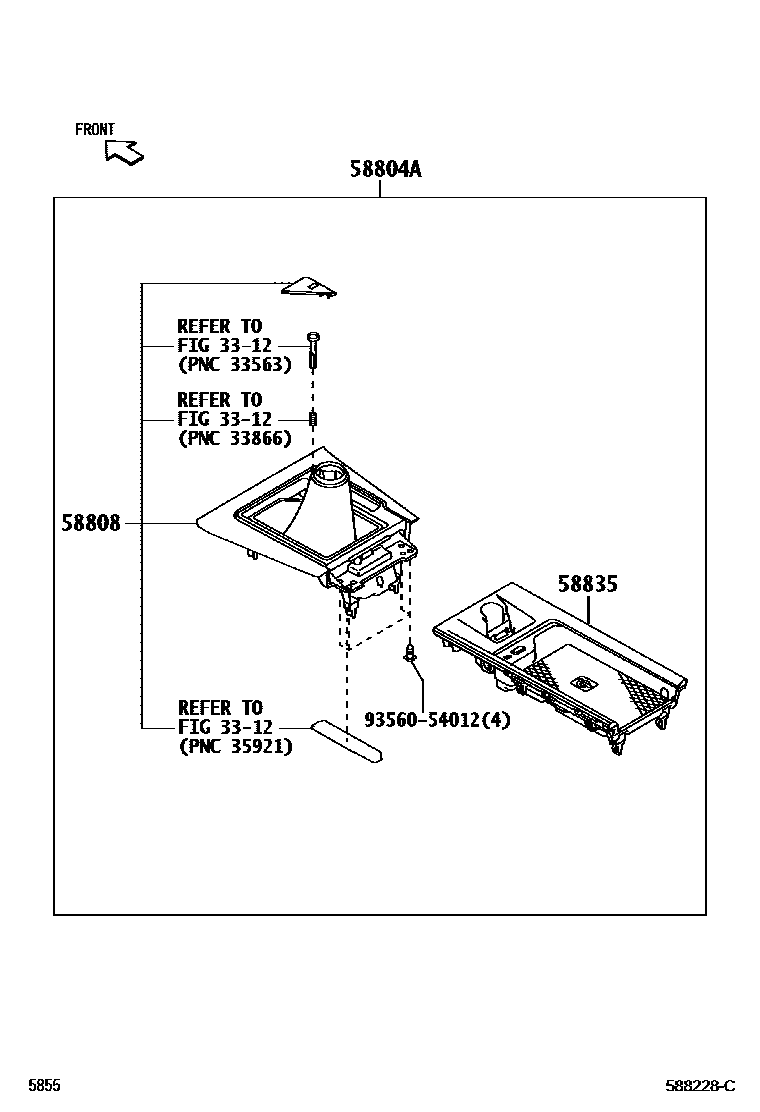

CONSOLE BOX & BRACKET

0001 1CONSOLE PANEL 0002 1CONSOLE BOX

3312

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-BZ190-C2iW151202206-202407

BLACK,TRIM2#

main58804-BZB40-C1iW151202408

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-BZ050-C1iW151202206

PIANO BLACK,TRIM2#

58835PANEL, CONSOLE, UPPER

main58820-BZ010-C2iW151202206-202407

-,TRIM2#

main58820-BZ050-C0iW151202408

PIANO BLACK,TRIM2#

9356054012

main93560-54012

5 parts on this diagram · 2 diagrams in section
