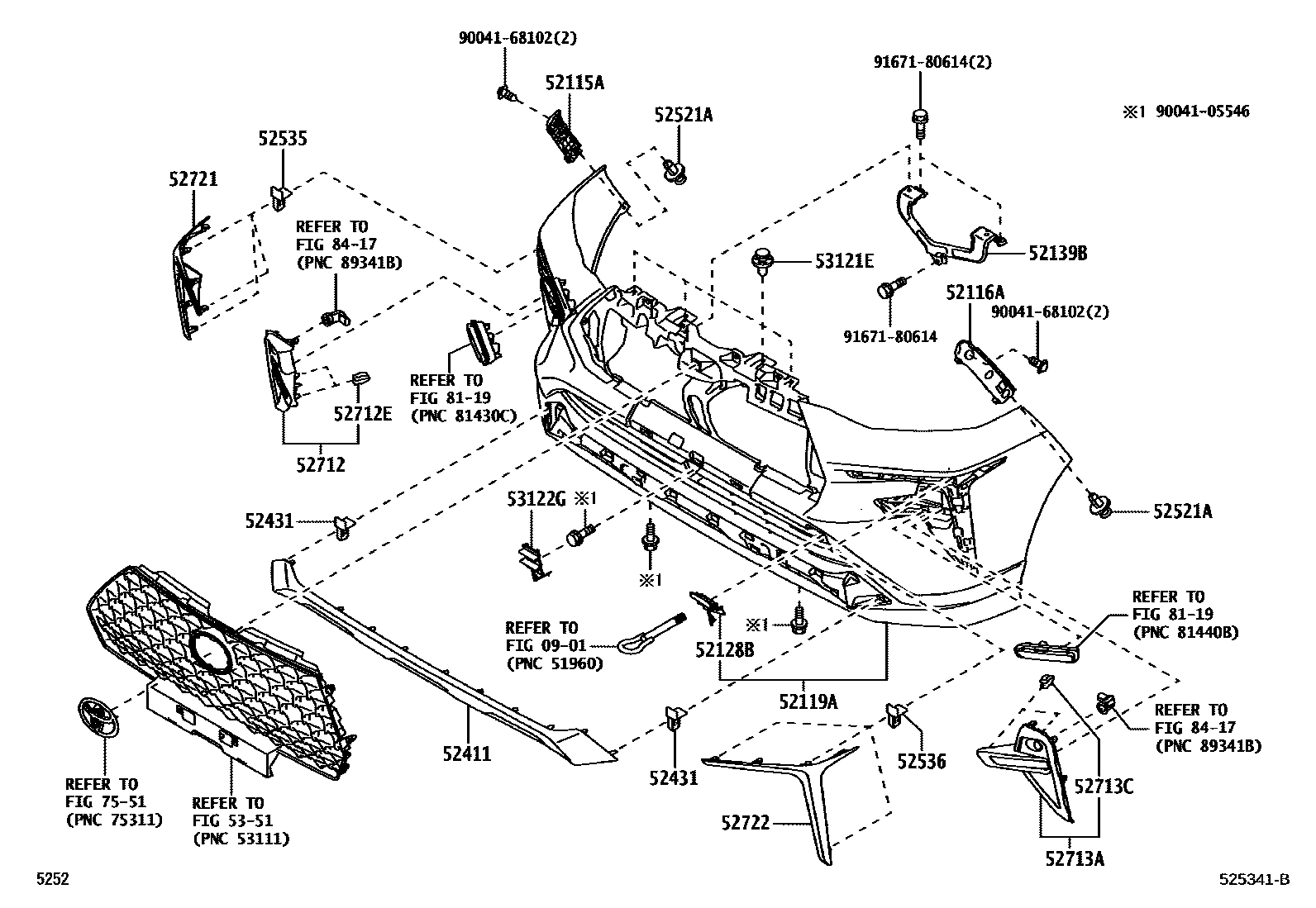

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ280iW151202206

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ270iW151202206

52119ACOVER, FRONT BUMPER

main52119-BZX30iW151202206

PAINT REQ.

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-BZ360iW151202206

52139BBRACE, FRONT BUMPER, CENTER

main52139-BZ060iW151202206

52411GUARD, FRONT BUMPER

main52411-BZ010iW151202206

52431RETAINER, FRONT BUMPER GUARD

main76854-BZ020iW151202206

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90044-67555iW151202206

52535RETAINER, FRONT BUMPER SIDE, RH

main76854-BZ020iW151202206

52536RETAINER, FRONT BUMPER SIDE, LH

main76854-BZ020iW151202206

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-BZ760iW151202206

52712ECLIP, FRONT BUMPER SIDE MOULDING

main90467-05172iW151202206

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-BZ770iW151202206

52713CCLIP, FRONT BUMPER SIDE MOULDING

main90467-05172iW151202206

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-BZ090iW151202206

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52722-BZ090iW151202206

53121ECLIP(FOR FRONT BUMPER), NO.1

main90044-68378iW151202206

53122GMOULDING, RADIATOR GRILLE, LOWER CENTER

main53123-BZ280iW151202206

5351RADIATOR GRILLE

→ Go to FIG 53-51

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

8119DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

→ Go to FIG 81-19

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9004105546

main90041-05546

9004168102

main90041-68102

9167180614

main91671-80614

26 parts on this diagram · 1 diagram in section
