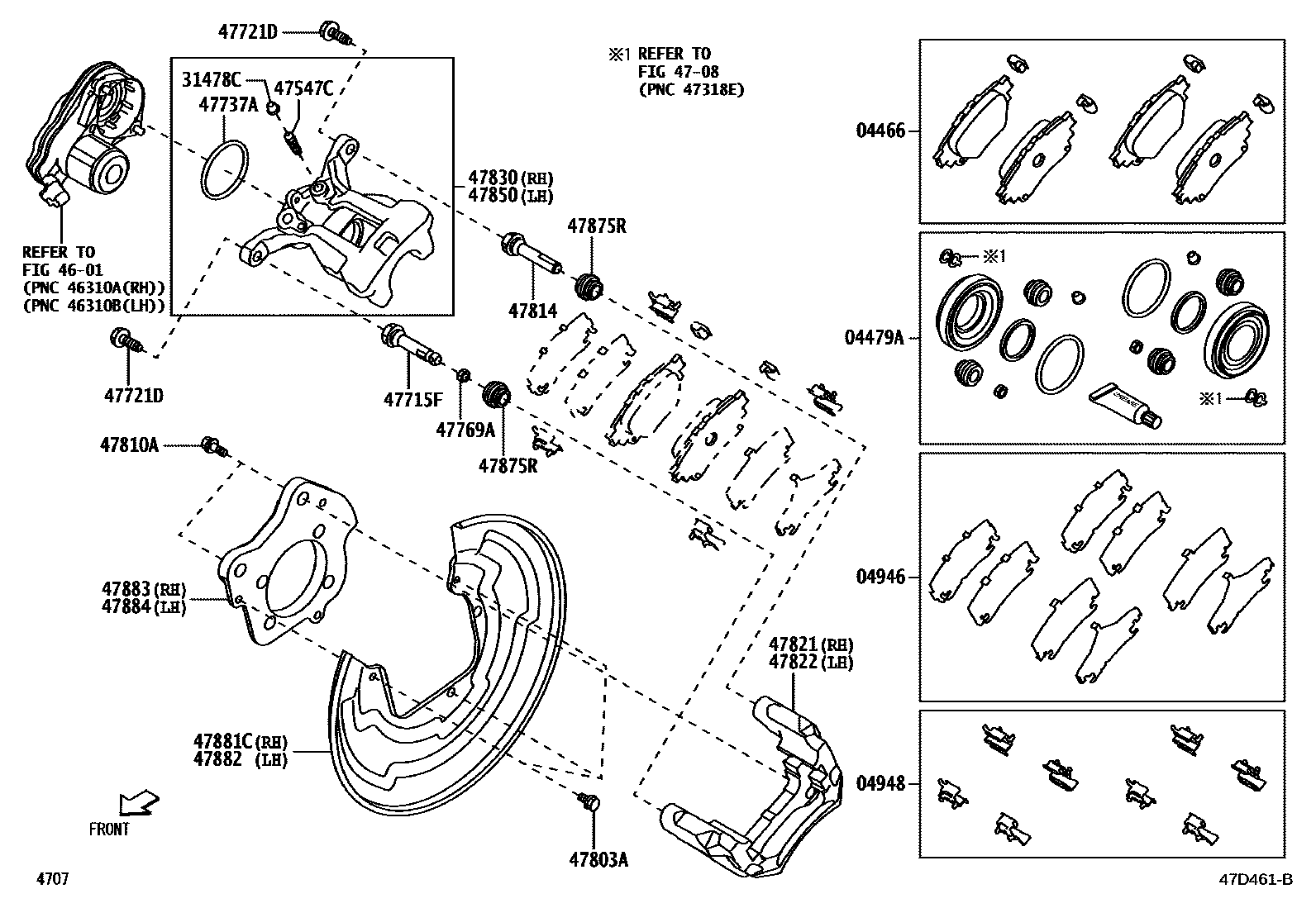

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-B1010iW151202206-202209

MARK ADVICS VC123

main04466-B1011iW151202209

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-B1010iW151202206

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-B1010iW151202206

04948FITTING KIT, DISC BRAKE, REAR

main04948-B1010iW151202206

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-87501×2iW151202206

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-87204×2iW151202206

47715FPIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-B1010×2iW151202206

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47815-B1020×4iW151202206

47737ASEAL, REAR DISC BRAKE CYLINDER PISTON

main47737-B1050×2iW151202206

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-B1010×2iW151202206

47803ABOLT(FOR REAR DISC BRAKE DUST COVER)

main90119-06961×6iW151202206

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90041-05431×4iW151202206

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-B1010×2iW151202206

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-B1010iW151202206

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-B1010iW151202206

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-B1010iW151202206

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-B1010iW151202206

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-B1010×4iW151202206

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-BZ010iW151202206

47882COVER, DISC BRAKE DUST, REAR LH

main47882-BZ010iW151202206

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-BZ030iW151202206

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-BZ030iW151202206

24 parts on this diagram · 1 diagram in section
