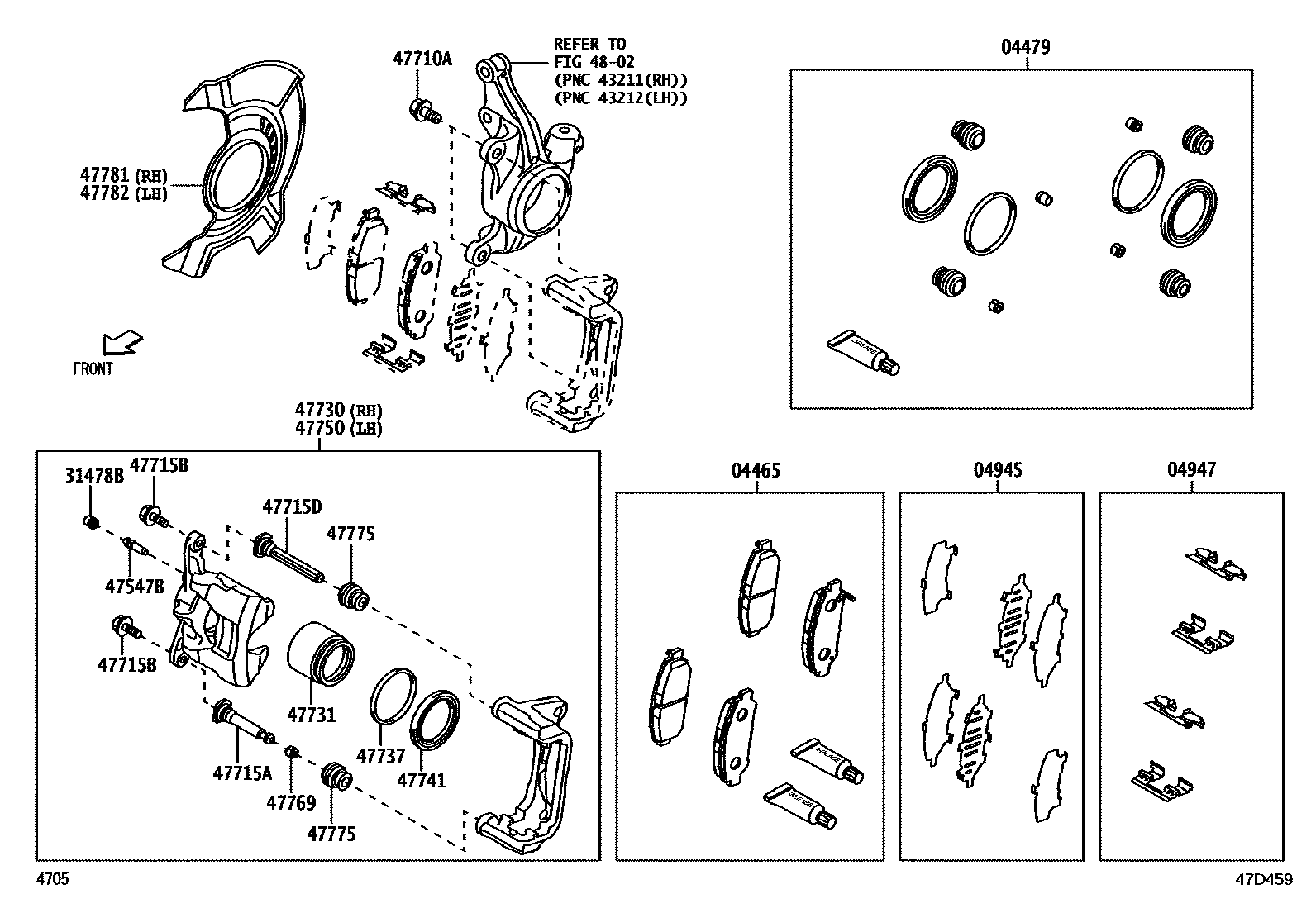

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-BZ300iW151202206

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ160iW151202206

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-BZ090iW151202206-202308

main04945-BZ091iW151202308

04947FITTING KIT, DISC BRAKE, FRONT

main04947-BZ090iW151202206

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ080×2iW151202206

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ050×2iW151202206

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05431×4iW151202206

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-BZ170×2iW151202206

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main9004A-10110×4iW151202206

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-BZ160×2iW151202206

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ130iW151202206

47731PISTON, FRONT DISC BRAKE

main47731-BZ100×2iW151202206

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-BZ010×2iW151202206

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-BZ030×2iW151202206

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ130iW151202206

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ030×2iW151202206

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-BZ010×4iW151202206

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ210iW151202206

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ210iW151202206

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

20 parts on this diagram · 1 diagram in section
